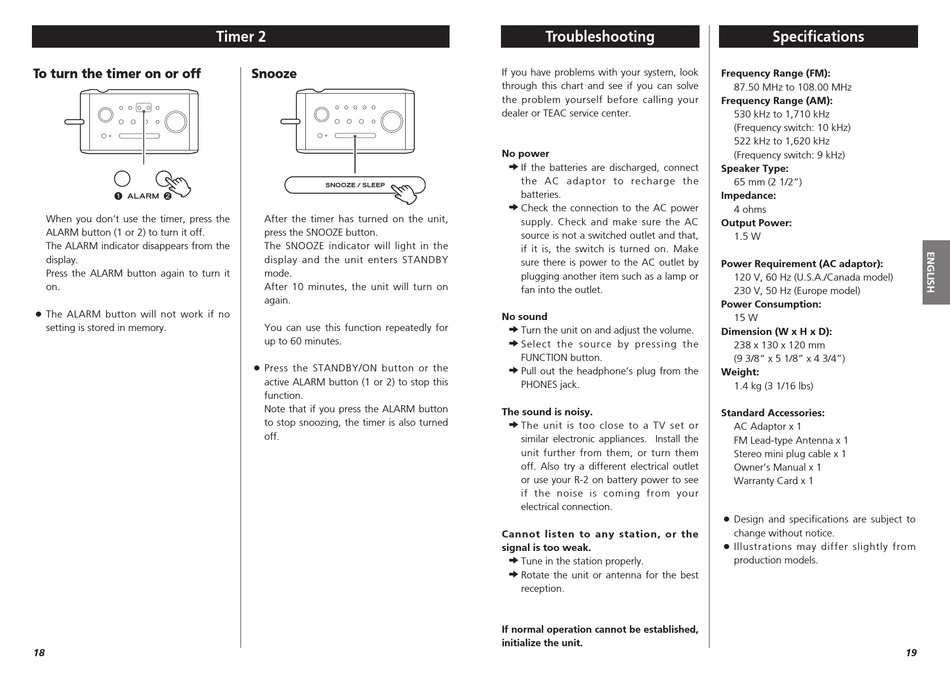

To turn the timer on or off
When you don't use the timer, press the
ALARM button (1 or 2) to turn it off.
The ALARM indicator disappears from the
display.
Press the ALARM button again to turn it
on.
< The ALARM button will not work if no
setting is stored in memory.
18
Timer 2
Snooze
After the timer has turned on the unit,
press the SNOOZE button.
The SNOOZE indicator will light in the
display and the unit enters STANDBY
mode.
After 10 minutes, the unit will turn on
again.
You can use this function repeatedly for
up to 60 minutes.
< Press the STANDBY/ON button or the
active ALARM button (1 or 2) to stop this
function.
Note that if you press the ALARM button
to stop snoozing, the timer is also turned
off.

Troubleshooting

If you have problems with your system, look
through this chart and see if you can solve
the problem yourself before calling your
dealer or TEAC service center.
No power
e If the batteries are discharged, connect
the AC adaptor to recharge the
batteries.
e Check the connection to the AC power
supply. Check and make sure the AC
source is not a switched outlet and that,
if it is, the switch is turned on. Make
sure there is power to the AC outlet by
plugging another item such as a lamp or
fan into the outlet.
No sound
e Turn the unit on and adjust the volume.
e Select the source by pressing the
FUNCTION button.
e Pull out the headphone's plug from the
PHONES jack.
The sound is noisy.
e The unit is too close to a TV set or
similar electronic appliances. Install the
unit further from them, or turn them
off. Also try a different electrical outlet
or use your R-2 on battery power to see
if the noise is coming from your
electrical connection.
Cannot listen to any station, or the
signal is too weak.
e Tune in the station properly.
e Rotate the unit or antenna for the best
reception.
If normal operation cannot be established,
initialize the unit.

Specifications

Frequency Range (FM):
87.50 MHz to 108.00 MHz
Frequency Range (AM):
530 kHz to 1,710 kHz
(Frequency switch: 10 kHz)
522 kHz to 1,620 kHz
(Frequency switch: 9 kHz)
Speaker Type:
65 mm (2 1/2")
Impedance:
4 ohms
Output Power:
1.5 W
Power Requirement (AC adaptor):
120 V, 60 Hz (U.S.A./Canada model)
230 V, 50 Hz (Europe model)
Power Consumption:
15 W
Dimension (W x H x D):
238 x 130 x 120 mm
(9 3/8" x 5 1/8" x 4 3/4")
Weight:
1.4 kg (3 1/16 lbs)
Standard Accessories:
AC Adaptor x 1
FM Lead-type Antenna x 1
Stereo mini plug cable x 1
Owner's Manual x 1
Warranty Card x 1
< Design and specifications are subject to
change without notice.
< Illustrations may differ slightly from
production models.
