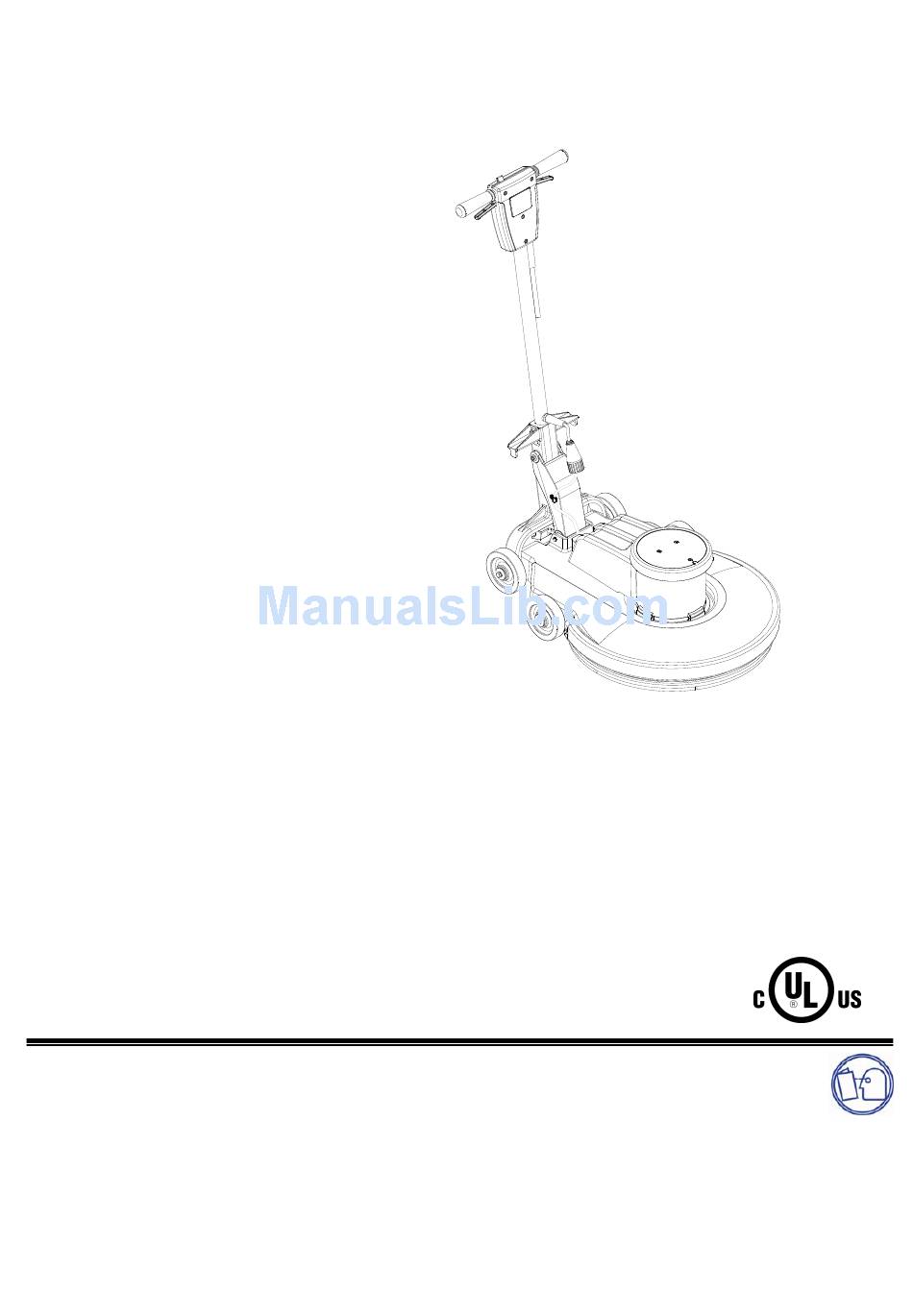

FLOOR BURNISHER
MODELS:
UB2000F
10090620
Operating Instructions (ENG)
86301200-L 01/04/08
PRV NO. 98884
LB2000
BDP 51/2000C
10090190
10090740

Advertisement

Table of Contents
loading

Summary of Contents for Windsor UB2000F

  • Page 1 FLOOR BURNISHER MODELS: UB2000F LB2000 BDP 51/2000C 10090620 10090190 10090740 Operating Instructions (ENG) 86301200-L 01/04/08 PRV NO. 98884...
  • Page 2: Machine Data Log/Overview

    MACHINE DATA LOG/OVERVIEW Model: Date of Purchase: Serial Number: Sales Representative: Address: Phone Number: 86301200 BURNISHER 01/08/08...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Machine Data Log/Overview......2 Table of Contents..........3 HOW TO USE THIS MANUAL How to use this Manual.........1-1 SAFETY Important Safety Instructions ......2-1 Hazard Intensity Level........2-2 Grounding Instructions........2-3 OPERATION Technical Specifications .......3-1 Handle Installation ........3-2 Operation ............3-3 Pad Driver Installation........3-3 MAINTENANCE Machine Troubleshooting......4-1 GROUP PARTS LIST...
  • Page 4: How To Use This Manual

    HOW TO USE THIS MANUAL This manual contains the following sections: The OPERATIONS section is to familiarize the operator with the operation and function of the HOW TO USE THIS MANUAL machine. SAFETY OPERATIONS The MAINTENANCE section contains preventive MAINTENANCE maintenance to keep the machine and its PARTS LIST components in good working condition.
  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING: To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual.
  • Page 6: Hazard Intensity Level

    HAZARD INTENSITY LEVEL The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words – WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING –...
  • Page 7: Grounding Instructions

    GROUNDING INSTRUCTIONS THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: In the USA this machine operates on a 15 amp nominal 120V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors.
  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS ITEM DIMENSION/CAPACITY Construction Heavy-duty die cast aluminum deck with heavy-duty rubber bumper, tubular steel self adjusting handle with die cast aluminum handle housing. Motor 1.50 hp Transmission Direct drive from motor shaft. Pad speed 2000 r.p.m. Electrical system 115 volts, 60 Hz Cable 75’...
  • Page 9: Handle Installation

    HANDLE INSTALLATION HANDLE ASSEMBLY HANDLE MOUNT BRACKET DECK ASSEMBLY The machine is shipped with handle unassembled. Follow these steps for installation: 1. Remove handle (86218480 – PRV NO. 38302) 3. Install Handle Assembly as shown. and deck assembly (86031100 – PRV NO. 29246) from carton.
  • Page 10: Operation

    OPERATION 6. To stop the machine, release the switch CONTROLS levers. 7. Do not let machine rest on pad. When 1. Safety Lock – Prevents unintended operation finished with the machine, return handle to the of the machine. storage position. 2.
  • Page 11: Machine Troubleshooting

    MACHINE TROUBLESHOOTING PROBLEM CAUSE SOLUTION Circuit breaker tripped in Check and reset. building. Power switch failure Test switch for continuity and replace if necessary. Tripped circuit breaker Reset Faulty power cord Replace Machine will not run Fuse in motor is blown Replace CAUTION: To reduce the risk of electrical shock,...
  • Page 12: Deck Group

    DECK GROUP U86301200 BURNISHER 01/08/08...
  • Page 13 86223430 67463 RETAINER, CORD SCR, M5 X .8MM X 10 MM PPHMS 86276810 70738 86217640 29244BLU DECK, 20 IN BURNISHER, BLUE LB2000 UB2000F 86289010 29244GRY DECK, 20 IN BURNISHER, GRY BDP 51/2000C 86219880 500506 LABEL, MAIN DECATHLON 2000 86216270 140423...
  • Page 14: Handle Group

    HANDLE GROUP 86301200 BURNISHER 01/08/08...
  • Page 15 HANDLE GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86136670 70686 SCR, M6 X 45 SHCS BLK 86005150 51326 LOCK, SAFETY HANDLE 86005150 73990 SPRING, EXT. .5OD X 3.5L 86215120 140428 BAR, HANDLE 86004070 36196 GRIP, POLISHER HANDLE 86005160 51327 LEVER, SWITCH...
  • Page 16: Lower Handle Group

    LOWER HANDLE GROUP NOTE: Grease items 14 and slide area of 19 as necessary when servicing. 86301200 BURNISHER 01/08/08...
  • Page 17 LOWER HANDLE GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM SCR, M5 X .8MM X 10 MM PPHMS 86276810 70738 86198450 20005 CLAMP, 5/16 NYLON 86223490 67468 RING, 10MM EXTERNAL SNAP 86223490 66340 PIN, DOWEL 10MM DIA X 124 MM LG 86215480 140421 BRACKET, HANDLE LINK...
  • Page 18: Motor Group

    MOTOR GROUP 86301200 BURNISHER 01/08/08...
  • Page 19 MOTOR GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86223690 70702 SCR, M5 X .8 X15MM BLK 86217490 27884 COVER, MOTOR INCLUDES 86222080 53256 MOTOR, 115VOLT 1.5HP 2000RPM ITEM 1 & 2 MOTOR COMPONENTS (NOT SHOWN) SERIAL NO. PART NO.
  • Page 20: Pad Driver Group

    PAD/DRIVER GROUP 86301200 BURNISHER 01/08/08...
  • Page 21 PAD/DRIVER GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86010790 87163 WASHER, 3/8 SPLIT LOCK PLTD 86006920 70507 SCR, 3/8-16 X 3/4 HHCS PLT 86010720 87086 WASHER, M10 X 30 PLTD INCLUDES 86222470 64108 PAD DRIVER, 20 INCH BURNISHER ITEMS 7 &...
  • Page 22: Wiring Group

    WIRING GROUP PRIOR TO SN* 5-11 86301200 BURNISHER 01/08/08...
  • Page 23 WIRING GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86136780 70801 SCR, M3.5 X 40 PHTF TYPE B WAS 70688 86137290 87057 WASHER, M4 SHAKEPROOF 86224750 73993 SPRING, COMP, .48OD X .875L 86007110 72123 SWITCH, 25A SPST 125-250V SNAP WAS QTY 1 86224550 73989...
  • Page 24: Wiring Diagram

    WIRING DIAGRAM SUGGESTED SPARE PARTS SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86224740 73990 SPRING 86224750 73993 SPRING 86007110 72123 SWITCH 86216710 140411 CIRCUIT BREAKER, 20 AMP 86223390 67488 RECTIFIER 86001820 14404 BRUSH SET MP/29256 MOTOR 86003660 34378 FUSE 86003670 34379...
