Belt Switch; Belt, Drive - GE Profile DPSB650 Technical Service Manual

Drive Belt
Warning: Sharp edges may be exposed. Use
caution to avoid injury when removing or installing
the drive belt.
The drive belt (P/N WE12M22) extends from the
motor pulley, past the idle pulley, and around the
perimeter of the dryer drum. (See belt diagram.)
To remove the drive belt:
1. Remove the top panel and front panel. (See
Top Panel, and Front Panel.)
2. Reach under the left-hand side of the drum,
push the idler pulley down and to the right, and
lock the pulley shaft on the top corner of the
motor bracket to release belt tension.
(See photo.)
3. Remove the belt from the motor pulley and
remove through the front of the dryer.
To install the drive belt:
1. Remove the top and front panels. (See Top
Panel and Front Panel.)
2. Reach under the left-hand side of the drum,
push the idler pulley down and to the right and
lock the pulley shaft on the top corner of the
motor bracket. (See photo.)
3. Place the belt in position around the center of
the drum through the front of the dryer.
4. Place the belt in position around the motor
pulley (see diagram), release the idler pulley
from the motor bracket, and guide onto the belt.
5. Check to make sure the belt is in place and not
twisted before installing the top and front
panels.

Belt Switch

A belt switch, activated by the idler spring, is
fastened to the motor bracket by 2 screws. Should
the drive belt break, the belt switch will open the
drive motor circuit, interrupting dryer operation.

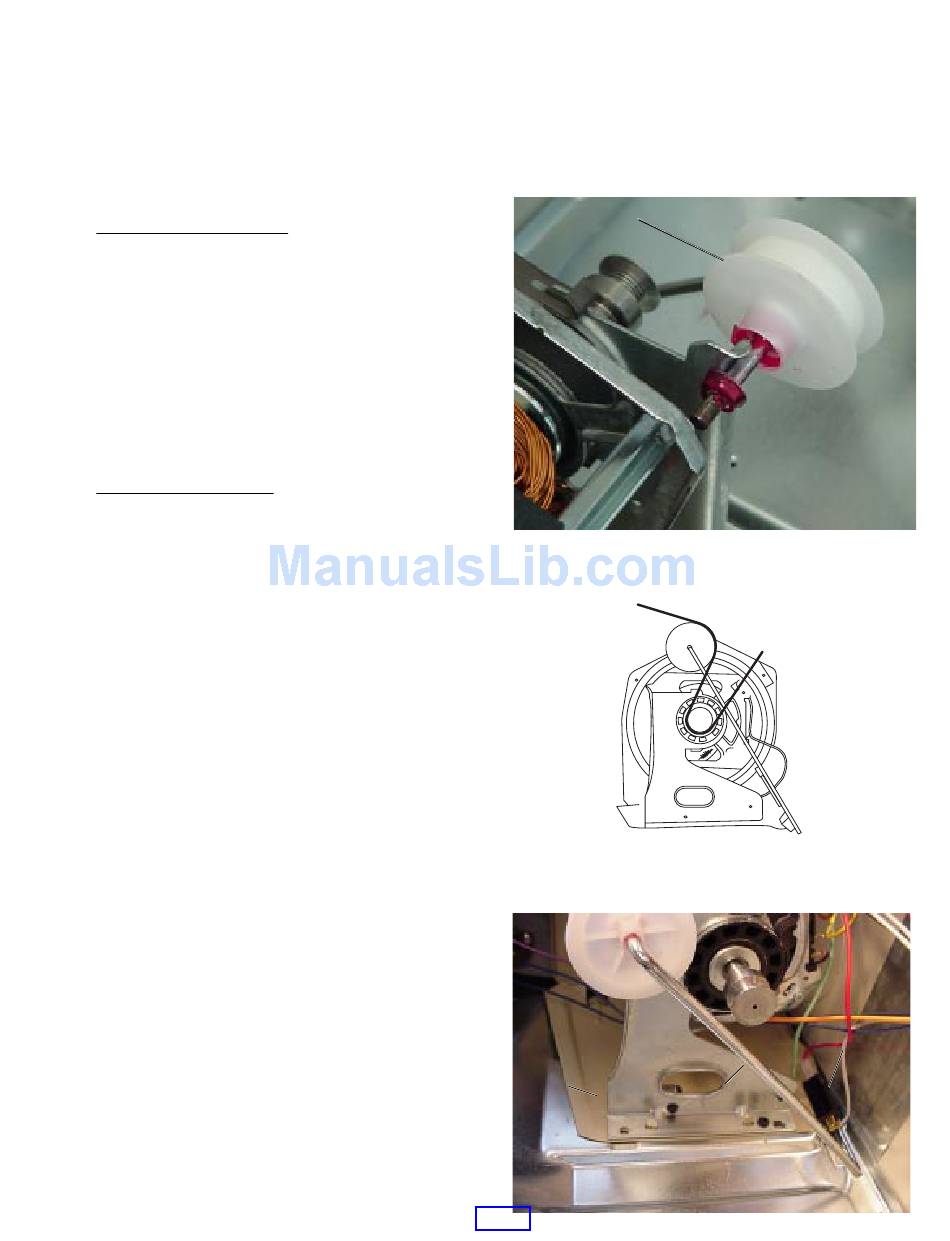

Idler Pulley
Idler Pulley
Pulley shown in locked position.
Motor Motor Idler Spring Idler Spring
Bracket Bracket
– 19 –
Belt Switch
Belt Switch
