Product Key Code & Layout
3.

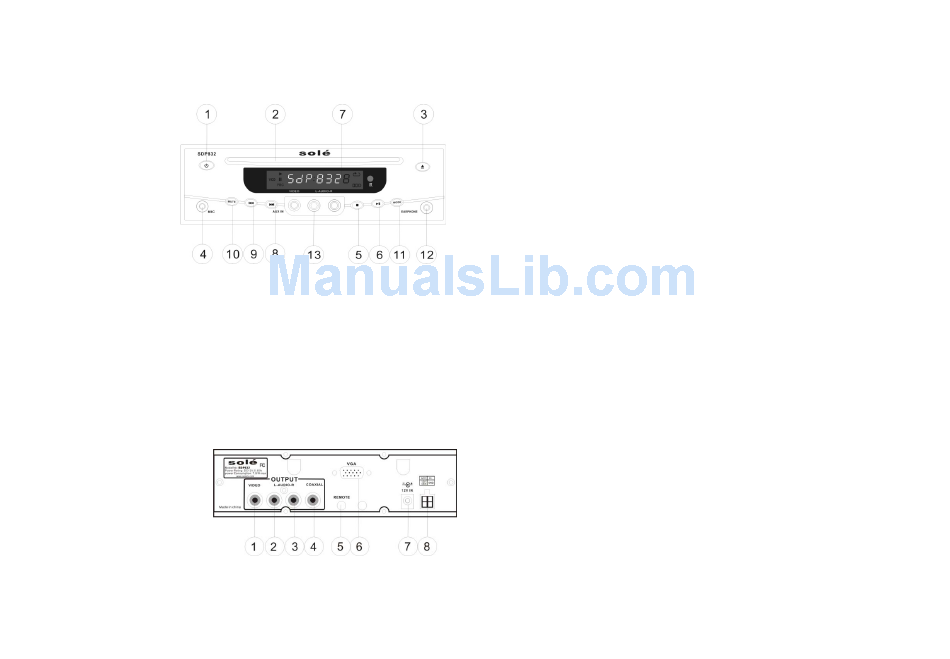

3.1. Front panel buttons

1) Power On/Off key
2) Disc loading slot
3) Eject key
4) Microphone Input
5) Stop Playback key
6) Play/Pause key
7) LED Display
8) Fast forward key
9) Fast reverse key
10) Mute key
11) Mode/Source Input key
12) Headphone
13) Composite RCA-type Audio/Video Input

3.2. Rear panel connections

1) Composite Video output (Yellow RCA-type)
2) Left audio output (White RCA-type)
3) Right audio output (Red RCA-type)
4) Digital coaxial audio output
5) Remote control input jack
6) VGA/Progressive output
7) DC 12V power input
8) Wiring harness power socket
6
Component video - A video system containing three separate color component
signals, either red/green/blue (RGB) or chroma/color difference (YCbCr, YPbPr,
YUV), in analog or digital form. The MPEG-2 encoding system used by DVD is
based on color-difference component digital video.
Composite video - An analog video signal in which the luma and chroma
components are combined (by frequency multiplexing), along with sync and burst.
Also called CVBS. Most televisions and VCRs have composite video connectors,
which are usually colored yellow.
CVBS - Composite video baseband signal. Standard single-wire video, mixing
luma and chroma signals together.
DC - Direct current. Electrical current flowing in one direction only. Adopted in
the video world to refer to a signal with zero frequency.
Dolby Digital - A perceptual coding system for audio, developed by Dolby
Laboratories and accepted as an international standard. Dolby Digital is the most
common means of encoding audio for DVD-Video and is the mandatory audio
compression system for 525/60 (NTSC) discs.
DVD - An acronym that officially stands for nothing, but is often expanded as
Digital Video Disc or Digital Versatile Disc. The audio/video/data storage system
based on 12- and 8-cm optical discs.
Frame - The piece of a video signal containing the spatial detail of one complete
image; the entire set of scan lines. In an interlaced system, a frame contains two
fields.
Frequency - The number of repetitions of a phenomenon in a given amount of
time. The number of complete cycles of a periodic process occurring per unit time.
Interlace - A video scanning system in which alternating lines are transmitted, so
that half a picture is displayed each time the scanning beam moves down the
screen. An interlaced frame is made of two fields.
