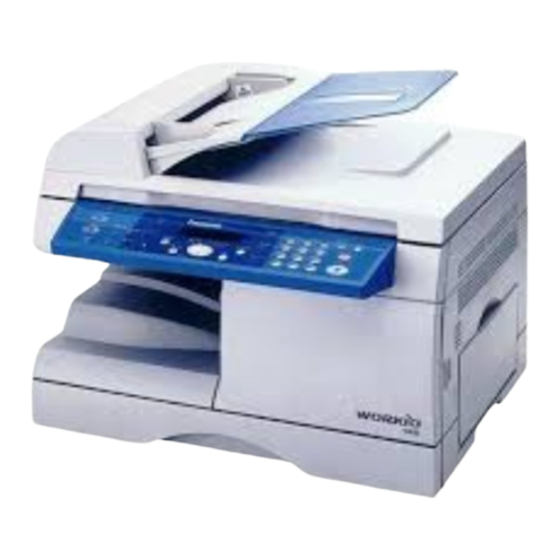

Panasonic DP-130 Operating Instructions Manual
Digital copier
Hide thumbs
Also See for DP-130:
- Operating instructions manual (192 pages) ,
- Operating instructions manual (28 pages)
Table of Contents
Advertisement
Quick Links
Digital Copier
Operating Instructions (For Copier)
Model No.
DP-130/130P
DP-150/150A/150PA
Option
DA-DS150/DA-SM16B
DA-DS150
(Option)
DP-150A
DP-150PA
DP-130/130P except U.S.A.
Before operating this copier, please read
these instructions completely and keep this
operating instructions for future reference.
DP-130
DP-130P
DP-150
2
Advertisement
Table of Contents
Related Manuals for Panasonic DP-130
Summary of Contents for Panasonic DP-130
- Page 1 Digital Copier Operating Instructions (For Copier) Model No. DP-130/130P DP-150/150A/150PA Option DA-DS150/DA-SM16B DA-DS150 (Option) DP-150A DP-150PA DP-130 DP-130P DP-150 DP-130/130P except U.S.A. Before operating this copier, please read these instructions completely and keep this operating instructions for future reference.
-
Page 2: Common Features Full Size Copying
Operation Chart Full Size Copying 100% Control Panel ON LINE ENERGY CLEAR/STOP 129% INVOICE LETTER SAVER 100% PHOTO LEGAL LETTER AUTO LETTER INVOICE START 2SIDED ZOOM DARKER LEGAL INVOICE (50~200%) LIGHTER Place the Select “100%” Number of Original copies (Up to 99) : 1 to 9 : 10 to 90 Load Paper... -
Page 3: Operation Chart
Normal Position Features List Reduction or Enlargement Copying (See page 19) Copying with preset ratios. Zoom Copying (See page 20) Copying with variable zoom ratios. System Configuration DP-130/150 DP-130P DP-150A/150PA Digital Skyshot Mode None None Sorting None None Not Available... -
Page 4: Energy Star
Energy Star For your safety The DP-130/130P/150/150A/150PA copier complies with Tier 2 of the Environmental Protection Agency’s Energy Star Program. This voluntary program specifies certain energy consumption and usage standards for copiers. This copier will automatically “power down” after a specified period of non-use. -
Page 5: Table Of Contents
Table of Contents Before Operating Precautions ............................ 6 Components External/Internal ................... 9 Control Panel ..................10 Installation Before Installation ................12 Instructions Release Scanner/Remove shipping materials ........13 Install Toner Cartridge ................. 14 Install paper ..................15 DA-DS150 (Option) ................16 Mode Functions ........................... -
Page 6: Precautions
Precautions For your safety Laser Safety Caution This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Caution Labels DANGER-Invisible laser Product complies with DHHS Rules 21 radiation when open and CFR Subchapter J in effect at date interlock defeated. - Page 7 High quality paper of 16 lbs. - 24 lbs. (15 – 34 lbs. via sheet bypass) may be used. For optimum performance, it is recommended that only Panasonic Brand supplies be used in the copier. Ventilation The copier should be installed in a well-ventilated...
-
Page 8: Installation
Precautions Installation The copier should not be installed in areas with the following conditions: Extremely high or low temperature and humidity. Proper ambient conditions Temperature: 50°F – 86°F Relative humidity: 30% – 80% Where temperature and humidity can change rapidly, causing condensation. Direct exposure to sunlight. -
Page 9: Components External/Internal
Components Using the Sheet Bypass External/Internal External Exit Tray Control Panel ADF (Automatic Document Feeder) Pull out the tray (DP-150A/150PA) when copying. Right Cover Sheet Bypass Button Power Switch 2nd Paper Feed Module (Option) Push here when closing Right Cover. Paper Tray Front Cover (See page 24, 25) -
Page 10: Control Panel
Components Control Panel Auto/Photo Mode Indicator (See page 2) Auto/Photo Select Key (See page 2) 129% INVOICE LETTER 100% PHOTO AUTO LEGAL LETTER LETTER INVOICE 2SIDED DARKER LEGAL INVOICE LIGHTER Sort Key Exposure Control (DP-150A/150PA) (See page 23) (See page 3) % Select Key (See page 19) Exposure Indicator... -
Page 11: Components
Components Energy Saver Key (See page 18) Copy Count Display Clear/Stop Key Indicates number of copies Press to stop copy run or clear or machine condition codes copy count in display. etc. (See page 32) ON LINE ENERGY CLEAR/STOP SAVER START ZOOM (50~200%) -
Page 12: Instructions
(see diagram below). 10 cm 70 cm 30 cm Exit Tray Copier Sheet Bypass To maintain optimum performance, we recommend only using genuine Panasonic ATTENTION supplies and parts. Drum unit already comes installed in copier. Toner Cartridge is packed in carton box. -
Page 13: Instructions Release Scanner/Remove Shipping Materials
Installation Instructions Release Scanner/Remove shipping materials Reminder: Do not plug the copier until directed to do so. Remove the fixing screw for the optics unit. Pull paper tray out of copier and secure the screw to the bottom of the paper tray. Note: When moving the copier reinstall the fixing screw. -
Page 14: Install Toner Cartridge
% Close the front panel. & Close the right cover. (See page 9) ( Close the sheet bypass. To maintain optimum performance, we recommend only using genuine Panasonic ATTENTION supplies and parts. Store toner cartridge in a cool dark place. Install toner cartridge... -
Page 15: Install Paper
Installation Instructions Install paper Push the paper tray into copier. Plug in the unit and turn on the power. When the Add Paper Indicator (J J J J J ) lights, install paper using the following procedure. Lift slightly and pull paper tray out of copier until it stops. -
Page 16: Da-Ds150 (Option)
Installation Instructions for Option Installing 2nd Paper Feed Module (For DP-150A/150PA) Unplug the power cord when installing the 2nd Paper Feed module Remove all packing tape. Remove the tape as shown. Check that the Half Moon Paper Feed Rollers are in the up position as illustrated on the left. -
Page 17: Installation
Installation Instructions for Option Installing 2nd Paper Feed Module To secure the 2nd paper feed module to the copier, turn the locking gears as indicated. Their are 4, two on each side of the unit. Caution If the 2nd paper feed module is not fixed securely, it may fall and hurt you. -
Page 18: Mode Functions
Power consumption will drop and the Energy Saver key indicator will light. $ To cancel this mode. Press Energy Saver key. If you wish to change the above settings or if you need more information, call your Panasonic authorized dealer. Power Consumption... -
Page 19: Reduction Or Enlargement Copying
Common Features Reduction or Enlargement Copying There are 3 preset reduction and 1 preset enlargement modes. ON LINE ENERGY CLEAR/STOP 129% INVOICE LETTER SAVER 100% PHOTO AUTO LEGAL LETTER LETTER INVOICE START ZOOM DARKER LEGAL INVOICE (50~200%) LIGHTER Place the Number of Press Start Select paper tray... -
Page 20: Zoom Copying
Common Features Zoom Copying A zoom ratio can be selected from 50% to 200% in 1% increments. ON LINE ENERGY CLEAR/STOP 129% INVOICE LETTER SAVER 100% PHOTO AUTO LEGAL LETTER LETTER INVOICE START ZOOM DARKER LEGAL INVOICE (50~200%) LIGHTER % Select Key Place the Original Number of Press Start... -
Page 21: Using The Sheet Bypass
Common Features Using the Sheet Bypass To copy on printed paper, letterhead, mailing labels, transparencies and odd- size paper, etc., or to use the bypass as an additional paper source. Place the Original. Select copy ratio/size. (See page 19, 20) Open the sheet bypass. -
Page 22: Creative Features Digital Skyshot Copy (Dp-150A/150Pa)
Creative Features Digital Skyshot Copy (For DP-150A/150PA) To copy from the platen with ADF open. Making copies from small originals without dark areas around the image. The Digital Skyshot mode is normally set on. If the mode is not set, please use the following procedure. -
Page 23: Sorting (Dp-150A/150Pa)
In this case, return from the original which did not scan and re-start scanning. Follow the procedures indicated in the display. If this problem continues, your originals require more memory when being scanned. Contact your local authorized Panasonic Dealer for the 16MB memory upgrade (DA-SM16B). -
Page 24: Handling Adding Paper
Handling Adding Paper Use the following steps to add paper. Lift paper tray and pull out of the copier until it stops. Push the bottom plate down until it locks. Place paper into paper tray. How to place paper: Place the paper copy side up. Do not fill above. -
Page 25: Changing Paper Size
Handling Changing Paper Size The paper tray is designed to accommodate invoice, letter and legal size paper. Changing the Paper Size (See table below) ON LINE ENERGY CLEAR/STOP INVOICE LETTER 129% SAVER 100% PHOTO AUTO LEGAL LETTER LETTER INVOICE START ZOOM DARKER LEGAL... -
Page 26: Changing Toner Cartridge
& Close the right cover. (See page 9) ( Close the sheet bypass. To maintain optimum performance, we recommend only using genuine ATTENTION Panasonic supplies and parts. Store toner cartridge in a cool dark place. Install toner cartridge immediately after unsealing. -
Page 27: Changing Drum Unit
& Close the sheet bypass. To maintain optimum performance, we recommend only using genuine ATTENTION Panasonic supplies and parts. Store drum unit in a cool dark place. Do not unseal drum unit before use. Use it as fast as possible after unsealing. -
Page 28: Removing A Misfed Paper
Handling Removing a Misfed Paper Paper transport and paper entry areas 129% INVOICE LETTER 100% LEGAL LETTER LETTER INVOICE LEGAL INVOICE Paper Misfeed Indicator The indicator will light when paper misfeeds. # Open the sheet bypass. Right Cover $ Push the button. % Open the right cover. -
Page 29: Handling
Handling Removing a Misfed Paper Paper exit area 129% INVOICE LETTER 100% LEGAL LETTER LETTER INVOICE LEGAL INVOICE Paper Misfeed Indicator The indicator will light when paper misfeeds. # Open the sheet bypass. Right Cover $ Push the button. % Open the right cover. Button Sheet Bypass Open the front panel. -
Page 30: Handling
Handling Removing an Original Misfeed (ADF) ADF (Automatic Document Feeder) area 129% INVOICE LETTER 100% LEGAL LETTER LETTER INVOICE LEGAL INVOICE Paper Misfeed Indicator The indicator will light when paper misfeeds. Paper Feed area: Open paper feed cover of ADF. Paper Feed Cover Remove misfed paper and close paper feed cover. -
Page 31: Handling
Handling Removing a Misfed Paper (2nd Paper Feed Module) 2nd Paper Feed Module area 129% INVOICE LETTER 100% LEGAL LETTER LETTER INVOICE LEGAL INVOICE Paper Misfeed Indicator The indicator will light when paper misfeeds. Open paper feed cover. Remove the misfed paper. Close paper feed cover. -
Page 32: Troubleshooting
Turn copier power switch off, then back Does any of the E#-## indicator and on. If error code comes back again, call message appear on display? your Panasonic authorized dealer. Blank Copies Copies come out in blank. Check if the toner cartridge is installed. - Page 33 Troubleshooting Check Action Marked Copies Is the copier platen glass or platen cover Clean the glass or platen cover. dirty? (See below) Light Copies Touch Auto/Photo Select key to choose Does the exposure indicator say “lighter”? the auto mode. (See page 2) Change toner cartridge.
- Page 34 Troubleshooting Cleaning corona When copies become unclear, clean the corona by following procedure. Line images in the copy. A B C D E F (Sample) # Open the sheet bypass. Right Cover $ Push the button. Button % Open the right cover. &...
-
Page 35: Specifications
Process: Mono-component Ultra Magnefine™ Toner Resolution: Max. 600 dpi Multi-Copy Speed: 13 Letter size copies per minute (DP-130/130P) 15 Letter size copies per minute (DP-150/150A/150PA) 8.5″ × 14″ (Legal size) Maximum Copy Size: Void area: max. 5.0 mm Copy Size:... -
Page 36: Specifications/Consumables List
Consumables List Consumables List When ordering consumables, please use the correct part number as listed below. Consumable Name Part Number Yield Toner Cartridge DQ-UG15A Approx. 5,000 sheets Drum Unit DQ-UH32A Approx. 30,000 sheets ∗ Based on copying onto letter-size 6% image original. Copier Care As a rule, clean weekly. -
Page 37: Important Information
TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY THE CUSTOMER IN CONNECTION WITH THE USE OR APPLICATION OF THIS PANASONIC COPIER. SEE YOUR DEALER FOR DETAILS OF DEALER’S WARRANTY.”...
