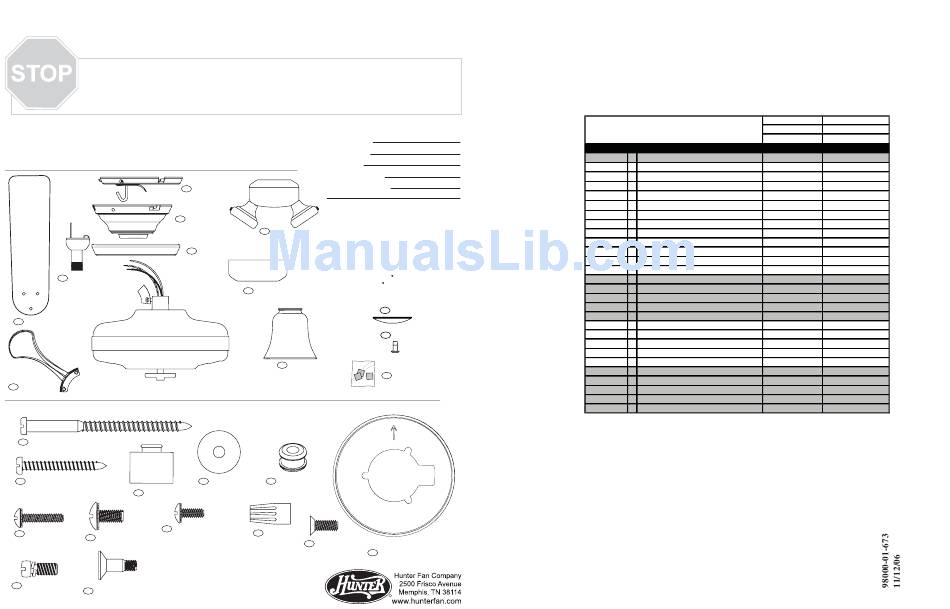

Hunter 20543 Parts Manual

PARTS GUIDE PARTS GUIDE
PARTS GUIDE PARTS GUIDE
Using the Parts Guide below, check to make sure all parts are included in the box.
If parts are missing or damaged call 1-888-830-1326.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Before installing your fan, record the following information for your records and warranty assistance.
Fan Parts
(Not Drawn to Scale)
2
3 Canopy
Hanger Ball /
7
Downrod
Assembly
46
Blade Set
Motor Housing Assembly
44 Blade Iron Set Hardware
65 Wood Screw
Wood Screw
64
Mounting
71
Isolator
Screw, Machine, 6-32
69
100 ?? Locking Screw
62 Canopy Screw
47 Screw, Blade
Iron Armature 67 Blade Assembly Screw
Model Name
Catalog No.
Serial No.
Date Purchased
Where Purchased
Ceiling Plate
Missing / Broken Parts:
Call 1-888-830-1326
Fan does not work:
Switch /
28
1. Reference the Trouble Shooting guide in
Housing
your Instruction Manual.
Assembly
2. Call your Local Service Center.
4 Canopy
3. Call Technical Support at 901-248-2222.
Trim Ring
For additional information on:
Hunter Products
Dealer Location
Call 1-800-448-6837
170 Switch Housing,
www.hunterfan.com
Alternate
150 Shade
(Drawn to Scale)
68 Flat Washer 66 Blade Grommet
70 Wire Nut
131 Screw, Switch
Housing
Assembly
Trouble Shooting
Service Center Locator
29 Switch Housing Cap
41 Switch Housing Plug
75 Balancing Kit
27 Low Profile Washer
R

Part List

Item # Item Name
* Hanging System Kit
2 Ceiling Plate
3 Canopy
4 Canopy Trim Ring
7 Hanger Ball / Downrod Assembly
8 Set Screw (Not shown)
27 Low Profile Washer
62 Canopy Screw
64 Wood Screw
65 Wood Screw
68 Flat Washer
71 Isolator
100 Locking Screw
28 Switch/Housing Assembly
44 Blade Iron Set
46 Blade Set
47 Screw, Blade Iron Armature
* Hardware Kit
66 Blade Grommet
67 Blade Assembly Screw
69 Screw, Machine, 6-32
70 Wire Nut
131 Screw, Switch Housing Assembly
75 Balancing Kit
170 Switch Housing, Alternate
29 Switch Housing, Cover
41 Switch Housing Plug Button
150 Shade
Model # 20543
Asm. Dwg. # 97289-01
Finish New Bronze
Qnty
1 94945-67-000
1 -----------
1 -----------
1 -----------
1 -----------
1 -----------
1 -----------
4 -----------
2 -----------
2 -----------
4 -----------
4 -----------
3 -----------
1 96947-30-000
1 92806-05-000
1 75885-47-000
11 63755-05-247
1 92789-01-000
16 05989-01-000
16 63730-01-247
3 74506-36-247
4 05172-01-000
3 64555-02-247
1 07570-01-000
1 93598-01-299
1 73853-01-299
1 73854-01-299
3 84884-07-000
