Three-Switch Stack; Four-Switch Stack; Five-Switch Stack - HP StorageWorks SN6000 Installation And Reference Manual

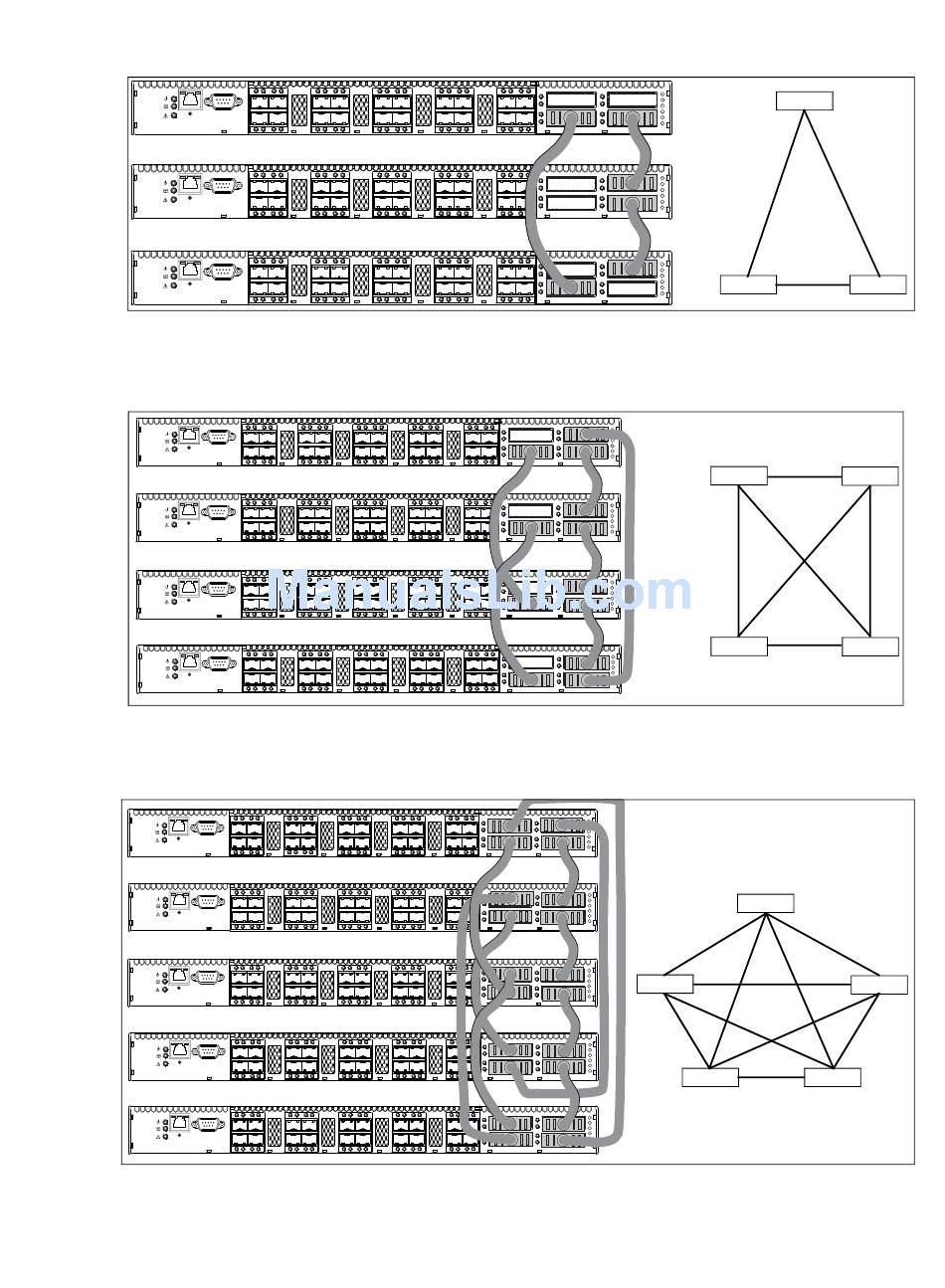

Figure 9 shows a three-switch stack of HP StorageWorks SN6000 Fibre Channel Switch switches using two
3-inch and one 9-inch XPAK switch stacking cables. 60 SFP ports are available for devices.
Figure 9

Three-switch stack

Figure 10 shows a four-switch stack of model SN6000 switches using three 3-inch and three 9-inch XPAK
switch stacking cables. 80 SFP ports are available for devices.
Figure 10

Four-switch stack

Figure 1 1 shows a five-switch stack of model SN6000 switches using ten XPAK switch stacking cables. 100
SFP ports are available for devices.
Figure 1 1

Five-switch stack

HP StorageWorks SN6000 Fibre Channel Switch Installation and Reference Guide 25
