Invacare Platinum IRC5LXO2 Operator's Manual page 22

SECTION 5 —OPERATING INSTRUCTIONS

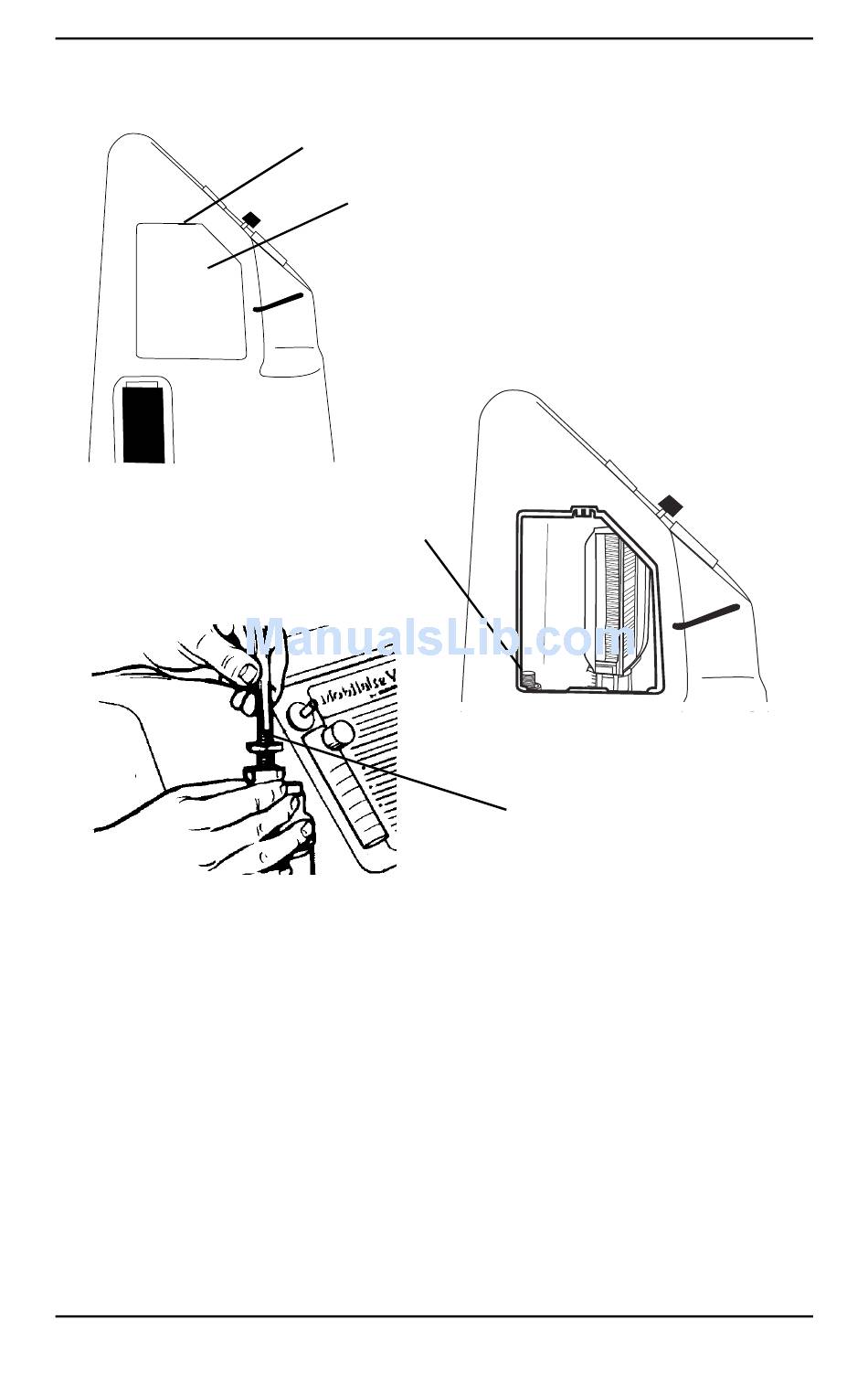

DETAIL "A"
DETAIL "C"
Filter
Access
Door
FIGURE 5.3
6. Attach oxygen tubing from the humidifier bottle to
oxygen outlet connector on the oxygen concentrator
(FIGURE 5.4).
7. Attach the cannula/patient supply tubing to the
humidifier bottle outlet (FIGURE 5.4).
8. After assembly, ensure that oxygen is flowing through the
cannula.
Platinum™Series
Plate Groove (Insert Flat
Head Screwdriver Here)
Filter Access Door
Humidifier Bottle
Adapter
Attaching the Humidifier Bottle Adapter
22
DETAIL "B"
Humidifier Bottle
Adapter
Part No 1145728
