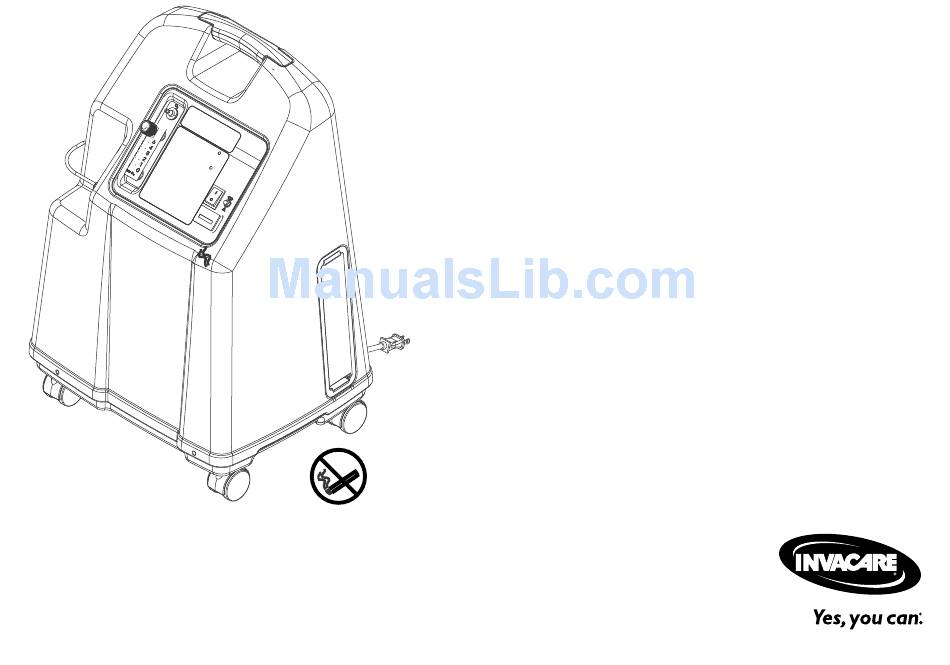

- Page 1 Invacare® Platinum™10L Oxygen Concentrator IRC10LX en HomeFill® System Compatible User Manual This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
7 Maintenance ........22 Contents 7.1 Service Life . -
Page 4: General
Invacare® Platinum™10L Oxygen Concentrator Symbols in Documentation 1 General General Warning Sign 1.1 Symbols The background color inside the Signal words are used in this manual and apply to hazards or unsafe triangle is yellow on product labels. practices which could result in personal injury or property damage. -
Page 5: Intended Use
Call a qualified technician. Recycle 1.2 Intended Use The intended function and use of the Invacare® Platinum™ Oxygen Concentrator is to provide supplemental oxygen to patients with DO NOT dispose of in household waste respiratory disorders, by separating nitrogen from room air, by way of a molecular sieve. -
Page 6: Indications For Use
1.3 Indications For Use DANGER! Risk of Injury or Death The intended function and use of the Invacare® Platinum™ Oxygen Depending on their medical condition, patients on Concentrator is to provide supplemental oxygen to patients with flowrates greater than 5 L/min may be at an increased respiratory disorders, by separating nitrogen from room air, by way risk for serious injury or death in the event of failure. -
Page 7: Safety
Safety 2 Safety Serial Number Label is located on the resonator intake assembly. 2.1 Label Locations Specification and Double Insulation Label is located on the back of the concentrator at the base 1118353-M-00... - Page 8 Invacare® Platinum™10L Oxygen Concentrator IRC10LX 1118353-M-00...
-
Page 9: General Guidelines
In case of damage, or if the product is not – Keep the oxygen tubing, cord, and concentrator out working correctly, contact a technician or Invacare from under such items as blankets, bed coverings, for repair. - Page 10 – Close supervision is necessary when the nasal cannula accessories. Accessories designed by other is used by or near children and/or impaired persons. manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. WARNING! –...
- Page 11 Risk of Injury or Damage this manual. To prevent injury or damage from cord misuse: – Users should contact your dealer or Invacare for – DO NOT move or relocate concentrator by pulling service. on the cord.
-
Page 12: Radio Frequency Interference
Invacare® Platinum™10L Oxygen Concentrator 2.3 Radio Frequency Interference WARNING! Risk of Injury or Damage To reduce the risk of injury or product damage from interference with wireless equipment: – Keep concentrator at least 9.8 ft (3.0 m) away from wireless communication equipment such as wireless home network devices, mobile phones, cordless phones and base stations, walkie-talkies, etc. -
Page 13: Components
1100873, for connection and operating instructions. When not in use, the plug provided with the concentrator should be inserted into the outlet fitting. For more Oxygen Outlet information about the HomeFill, contact your Invacare Flowmeter dealer. Fault and Power Indicator Lights... -
Page 14: Pneumatic Diagram
Invacare® Platinum™10L Oxygen Concentrator 3.2 Pneumatic Diagram 1118353-M-00... -
Page 15: Accessories
• Standard Adult Nasal Cannula, 7 ft (2.1 m) M3120 • Standard Humidifier - Invacare Part #1155719 • HomeFill Home Oxygen Compressor - IOH200 • Oxygen Supply Tubing 7 ft (2.1 m) - MS4107 •... -
Page 16: Setup
Invacare® Platinum™10L Oxygen Concentrator Check for any obvious damage to the carton or its contents. If 5 Setup damage is evident, notify the carrier, or your local dealer. Remove all loose packing from the carton. 5.1 Unpacking Carefully remove all the components from the carton. -
Page 17: Usage
Usage 6 Usage WARNING! Risk of Injury or Damage To avoid injury or damage from airborne pollutants 6.1 Introduction and/or fumes and for optimal performance: Your oxygen concentrator is intended for individual use indoors. – Locate and position the concentrator in a well It is an electronically operated device that separates oxygen from ventilated space so that the air intake and the air room air. -
Page 18: Setting Up The Concentrator
Invacare® Platinum™10L Oxygen Concentrator 6.3 Setting Up the Concentrator WARNING! Risk of Injury or Damage Plug in power cord to an electrical outlet. Failure to properly install the humidifier bottle or other Connect Humidifier (if so prescribed). accessories to the concentrator will impact the flow of oxygen. - Page 19 Usage Insert a flathead screwdriver in the plate groove C on the top Humidifier Bottle Humidifier Bottle without Cap edge of the filter access door D and gently pry the filter access with Cap door off. Pull up and remove the humidifier bottle adapter E (next to inlet filter).
-
Page 20: Turning The Concentrator On
Invacare® Platinum™10L Oxygen Concentrator Attach the humidifier bottle adapter E to the humidifier When using tubing connections longer than 7 ft (2.1 m) bottle B by turning the wing nut G on the humidifier bottle in length, position the humidifier as close to the patient counterclockwise until it is securely fastened. -
Page 21: Flowrate
Usage 6.3.3 Flowrate A Potential Obstruction Alert indicates a condition that may be associated with a partial or complete obstruction WARNING! of oxygen output. Risk of Injury The use of some accessories and the HomeFill compressor To avoid injury from excess oxygen or a deficit of will deactivate the Potential Obstruction Alert. -
Page 22: Maintenance
Only use mild Risk of Injury or Damage liquid dish detergent (such as Dawn®). Invacare oxygen concentrators are specifically designed to minimize routine preventive maintenance. To prevent At a minimum, preventive maintenance MUST be performed injury or damage: according to the maintenance record guidelines. -
Page 23: Cleaning The Cabinet Filter
Maintenance Periodically clean the concentrator’s cabinet as follows: Use a damp cloth, or sponge, with a mild detergent such as Dawn dish washing soap to gently clean the exterior case. Allow the concentrator to air dry, or use a dry towel, before operating the concentrator. -
Page 24: Humidifier Cleaning And Thermic Disinfection
Invacare® Platinum™10L Oxygen Concentrator 7.4 Humidifier Cleaning and Thermic Dispose of and replace all patient side accessories not suitable for multiple patient use, including but not limited to: Disinfection Clean and disinfect the oxygen humidifier daily to reduce • Nasal Cannula and Tubing limestone deposits and eliminate possible bacterial •... -
Page 25: Preventive Maintenance Checklist
Maintenance 7.6 Preventive Maintenance Checklist Model No: Serial No: ON EACH INSPECTION Record Date of Service Record Elapsed Hours on Hour Meter Clean Cabinet Filter(s) (Refer to Cleaning the Cabinet Filter.) Check Prescribed L/min. Flow Rate DURING PREVENTIVE MAINTENANCE SCHEDULE, OR BETWEEN PATIENTS UNITS WITHOUT SensO —... -
Page 26: After Use
Invacare® Platinum™10L Oxygen Concentrator 8.2 Wear and Tear 8 After Use Invacare reserves the right to ask for any item back that has an alleged defect in workmanship. See Warranty that shipped with the 8.1 Recycling Information product for specific warranty information. -
Page 27: Troubleshooting
Troubleshooting 9 Troubleshooting 9.1 Troubleshooting SYMPTOM PROBABLE CAUSE SOLUTION Alarm: Main Power Loss: No lights illuminated. Power cord not plugged in. Insert plug into outlet. No power at outlet. Inspect house circuit breakers or fuses. If problem recurs, Short Beeps, long pause Tripped circuit breaker. -
Page 28: Technical Data
Invacare® Platinum™10L Oxygen Concentrator 10 Technical data 10.1 Specifications Electrical Requirements: 120 VAC + 10, –15% (132 VAC/102 VAC), 60 Hz Rated Current Input: 4.9 A Sound Pressure Level: < 62 dBA weighted for 3 L/min flow < 62 dBA weighted for 10 L/min Flow Sound Power Level: <... - Page 29 Technical data Filters: Cabinet (2), Outlet HEPA and Compressor Inlet Safety System: Current overload or line surge shutdown. High temperature compressor shutdown. High Pressure Alarm w/compressor shutdown. Low Pressure Alarm w/compressor shutdown. Battery Free Power Loss Alarm. Width: 18 3/8 in ± 3/8 in (46.7 cm ± 1 cm) Height: 26 3/8 in ±...
- Page 30 Invacare® Platinum™10L Oxygen Concentrator Tubing: 7 ft (2.1 m) cannula with a maximum 50 ft (15 m) of Crush-Proof Tubing (DO NOT pinch) Time of Operation: Up to 24 hours per day Recommended Storage and Shipping Temperature: -20° F to 150° F (-29° C to 65° C) at up to 95% relative humidity Measurement uncertainty is included in the device specification.
-
Page 31: Warranty
LIMITATIONS AND EXCLUSIONS: THE FOREGOING from Invacare or a dealer, with a copy of the seller’s invoice required WARRANTY SHALL NOT APPLY TO PRODUCTS SUBJECTED for coverage under this warranty. - Page 32 THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER. SOME STATES DO NOT ALLOW THE EXCLUSION OR...
- Page 33 Notes...
- Page 34 Notes...
- Page 35 Notes...
- Page 36 Invacare Corporation Manufacturer One Invacare Way Invacare Corporation Elyria, Ohio USA 2101 E. Lake Mary Blvd. 44035 Sanford, FL 32773 Tel: 440–329–6000 Tel: 407–321–5630 Tel: 800–832–4707 Technical Services Tel: 440-329-6593 Tel: 800-832-4707 www.invacare.com 1118353-M-00 2016-08-01 Making Life’s Experiences Possible™ *1118353M-00*...
