3

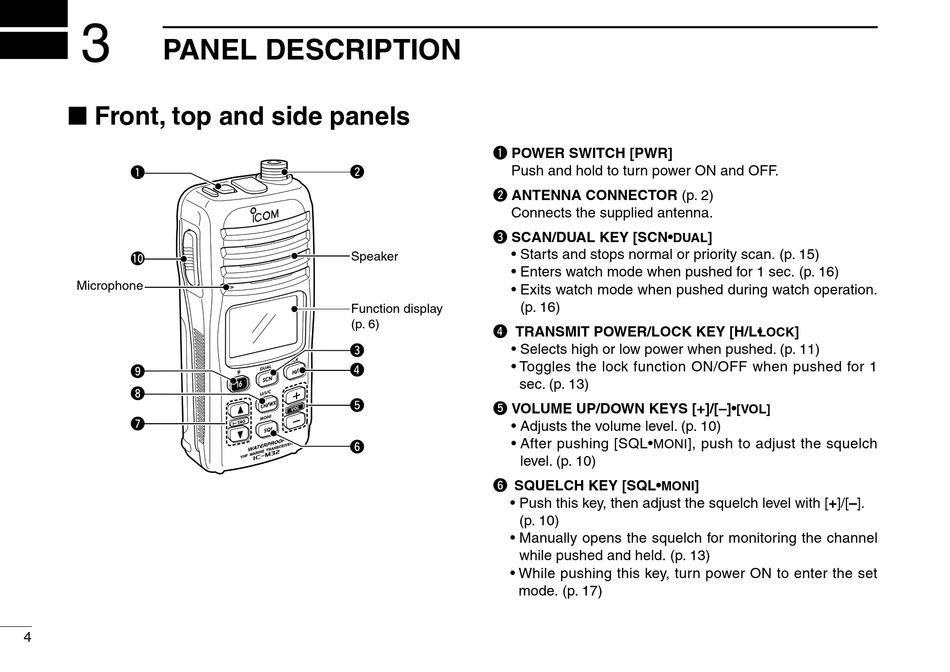

PANEL DESCRIPTION
■ Front, top and side panels
q
!0
Microphone
o
i
u
4
q POWER SWITCH [PWR]
Push and hold to turn power ON and OFF.
w
w ANTENNA CONNECTOR (p. 2)
Connects the supplied antenna.
e SCAN/DUAL KEY [SCN•
• Starts and stops normal or priority scan. (p. 15)
Speaker
• Enters watch mode when pushed for 1 sec. (p. 16)
• Exits watch mode when pushed during watch operation.
(p. 16)
Function display
(p. 6)
r TRANSMIT POWER/LOCK KEY [H/L•
• Selects high or low power when pushed. (p. 11)
e
• Toggles the lock function ON/OFF when pushed for 1
r
sec. (p. 13)
t
t VOLUME UP/DOWN KEYS [+]/[–]•
• Adjusts the volume level. (p. 10)
• After pushing [SQL•
y
level. (p. 10)
y SQUELCH KEY [SQL•
• Push this key, then adjust the squelch level with [+]/[–].
(p. 10)
• Manually opens the squelch for monitoring the channel
while pushed and held. (p. 13)
• While pushing this key, turn power ON to enter the set
mode. (p. 17)
]
DUAL
]
L OCK
[VOL]
], push to adjust the squelch
MONI
]
MONI
