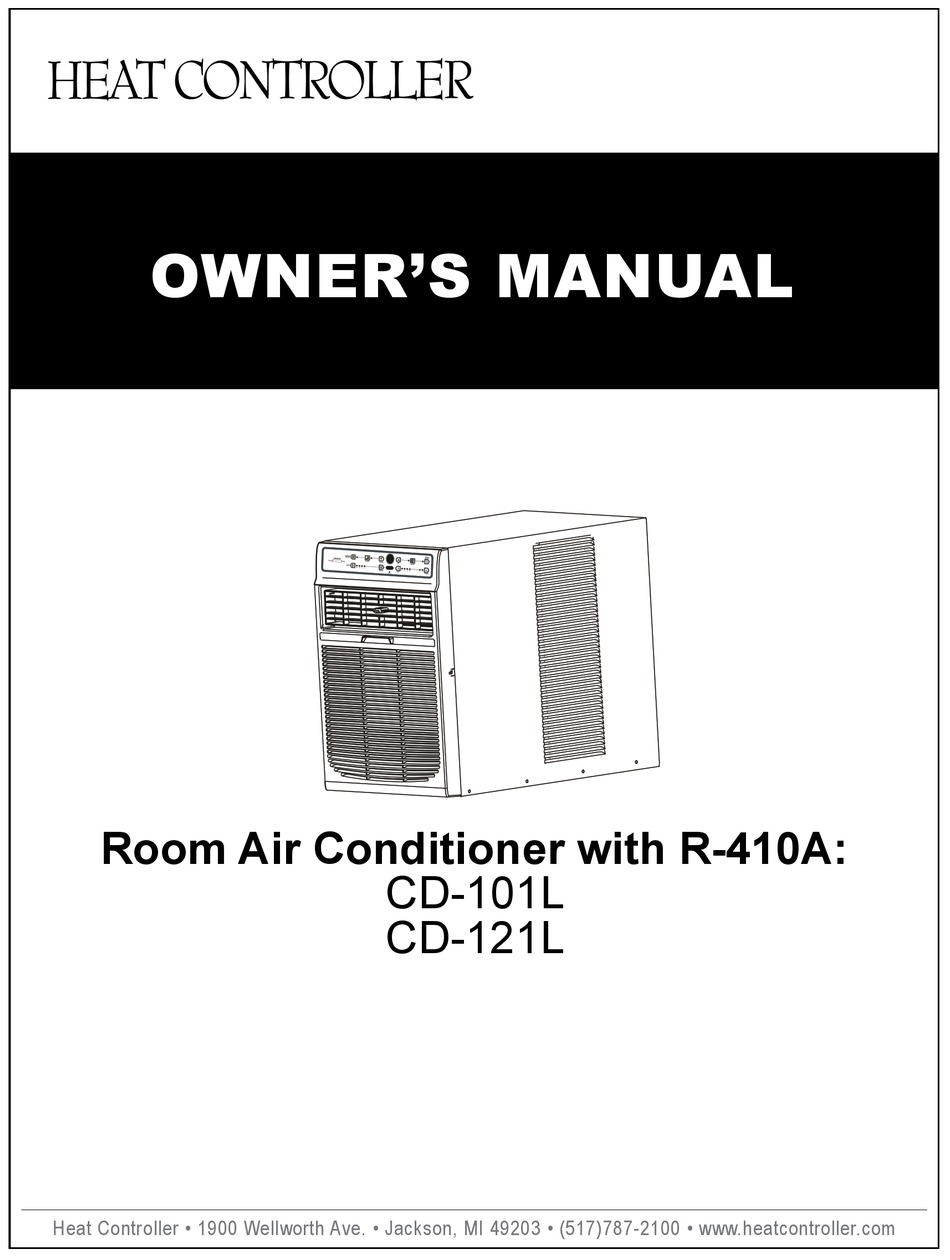

- Page 1 OWNER’S MANUAL Room Air Conditioner with R-410A: CD-101L CD-101J CD-121L CD-121J Heat Controller • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com...
-
Page 2: Table Of Contents
Owner’s Manual Owner’s Manual Room Air Conditioner with R-410A Room Air Conditioner with R-410A Heat Controller, Inc. Heat Controller CONTENTS 1. SAFETY PRECAUTIONS..............2 2. IMPORTANT SAFETY INSTRUCTIONS ..........4 3. NORMAL SOUNDS ................5 4. AIR CONDITIONER FEATURES ............5 5. INSTALLATION INSTRUCTIONS............10 6. - Page 3 Heat Controller Room Air Conditioner with R-410A Owner’s Manual...
- Page 4 Owner’s Manual Room Air Conditioner with R-410A Heat Controller...
-
Page 5: Important Safety Instructions
Heat Controller Heat Controller, Inc. Room Air Conditioner with R-410A Room Air Conditioner with R-410A Owner’s Manual Owner’s Manual IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS For your safety For your safety WARNING WARNING NOTE NOTE The power supply cord with... -
Page 6: Normal Sounds
Owner’s Manual Owner’s Manual Room Air Conditioner with R-410A Room Air Conditioner with R-410A Heat Controller, Inc. Heat Controller NORMAL SOUNDS WINDOW/WALL TYPE ROOM AIR CONDITIONER High Pitched Chatter AIR CONDITIONER FEATURES High efficiency compressors may have a high pitched chatter... - Page 7 Heat Controller Room Air Conditioner with R-410A Owner’s Manual...
-
Page 8: Cooling Mode
Owner’s Manual Owner’s Manual Room Air Conditioner with R-410A Room Air Conditioner with R-410A Heat Controller, Inc. Heat Controller AIR CONDITIONER FEATURES(CONTINUED) AIR CONDITIONER FEATURES NOTE: AIR CONDITIONER FEATURES(CONTINUED) TO SELECT THE To choose operating mode, press the Mode TO SELECT THE... - Page 9 Heat Controller Heat Controller, Inc. Room Air Conditioner with R-410A Room Air Conditioner with R-410A Owner’s Manual Owner’s Manual AIR CONDITIONER FEATURES (CONTINUED) AIR CONDITIONER FEATURES(CONTINUED) AIR CONDITIONER FEATURES(CONTINUED) AIR CONDITIONER FEATURES TIMER: AUTO START/ NOTE: TIMER: AUTO START/ STOP FEATURE:...
- Page 10 Owner’s Manual Owner’s Manual Room Air Conditioner with R-410A Room Air Conditioner with R-410A Heat Controller, Inc. Heat Controller AIR CONDITIONER FEATURES (CONTINUED) AIR CONDITIONER FEATURES DO THIS: Press Check NOTE: Filter button Press the Clean Air button, the ion generator is...
-
Page 11: Installation Instructions
Heat Controller Heat Controller, Inc. Room Air Conditioner with R-410A Room Air Conditioner with R-410A Owner’s Manual Owner’s Manual INSTALLATION INSTRUCTIONS NOTE: These instructions describe installation in a typical wood framed window with a wood SLIDE -BY sash, or installation in a metal CASEMENT window. Modification may be necessary when installing in windows made differently than those shown in these instructions. - Page 12 Owner’s Manual Owner’s Manual Room Air Conditioner with R-410A Room Air Conditioner with R-410A Heat Controller, Inc. Heat Controller 1. Make sure you have all the necessary parts. Installation kit contents: Platform(1) Support brace(1) Adjustment bolt(1) 1/4” (1) Hex flange nut - 1 / 4 (1)
- Page 13 Heat Controller Heat Controller, Inc. Room Air Conditioner with R-410A Room Air Conditioner with R-410A Owner’s Manual Owner’s Manual Alternate screw location sill depth) (depending on the stool depth) sill. Platform tab Window seal Window track...
- Page 14 Owner’s Manual Owner’s Manual Room Air Conditioner with R-410A Room Air Conditioner with R-410A Heat Controller, Inc. Heat Controller...
- Page 15 Heat Controller Heat Controller, Inc. Room Air Conditioner with R-410A Room Air Conditioner with R-410A Owner’s Manual Owner’s Manual Remove the two front retaining screws from the front frame. 2. Gently pull the front out and lift up to release it from the case.
- Page 16 Owner’s Manual Owner’s Manual Room Air Conditioner with R-410A Room Air Conditioner with R-410A Heat Controller, Inc. Heat Controller Insert 20. To replace the front First reconnect the coupler plugs, make the Exhaust control positioned through the front in the proper location. Then replace the retaining screws that holds the panel in place.
- Page 17 Heat Controller Heat Controller, Inc. Room Air Conditioner with R-410A Room Air Conditioner with R-410A Owner’s Manual Owner’s Manual glass panels must be removed before installation.
- Page 18 Owner’s Manual Owner’s Manual Room Air Conditioner with R-410A Room Air Conditioner with R-410A Heat Controller, Inc. Heat Controller...
- Page 19 Heat Controller, Inc. Heat Controller Room Air Conditioner with R-410A Room Air Conditioner with R-410A Owner’s Manual Owner’s Manual Remove the two front retaining screws from the front frame. 2. Gently pull the front out and lift up to release it from the case.
-
Page 20: Care And Cleaning
Owner’s Manual Owner’s Manual Room Air Conditioner with R-410A Room Air Conditioner with R-410A Heat Controller, Inc. Heat Controller CARE AND CLEANING CARE AND CLEANING CAUTION WARNING! CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit Clean your air conditioner occasionally to keep it looking new. -
Page 21: Troubleshooting Tips
Heat Controller, Inc. Heat Controller Room Air Conditioner with R-410A Room Air Conditioner with R-410A Owner’s Manual Owner’s Manual TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance. - Page 22 Owner’s Manual Room Air Conditioner with R-410A Heat Controller...
- Page 23 Heat Controller Room Air Conditioner with R-410A Owner’s Manual...
- Page 24 Room Air Conditioner with R-410A Owner’s Manual Heat Controller 11/2013...
