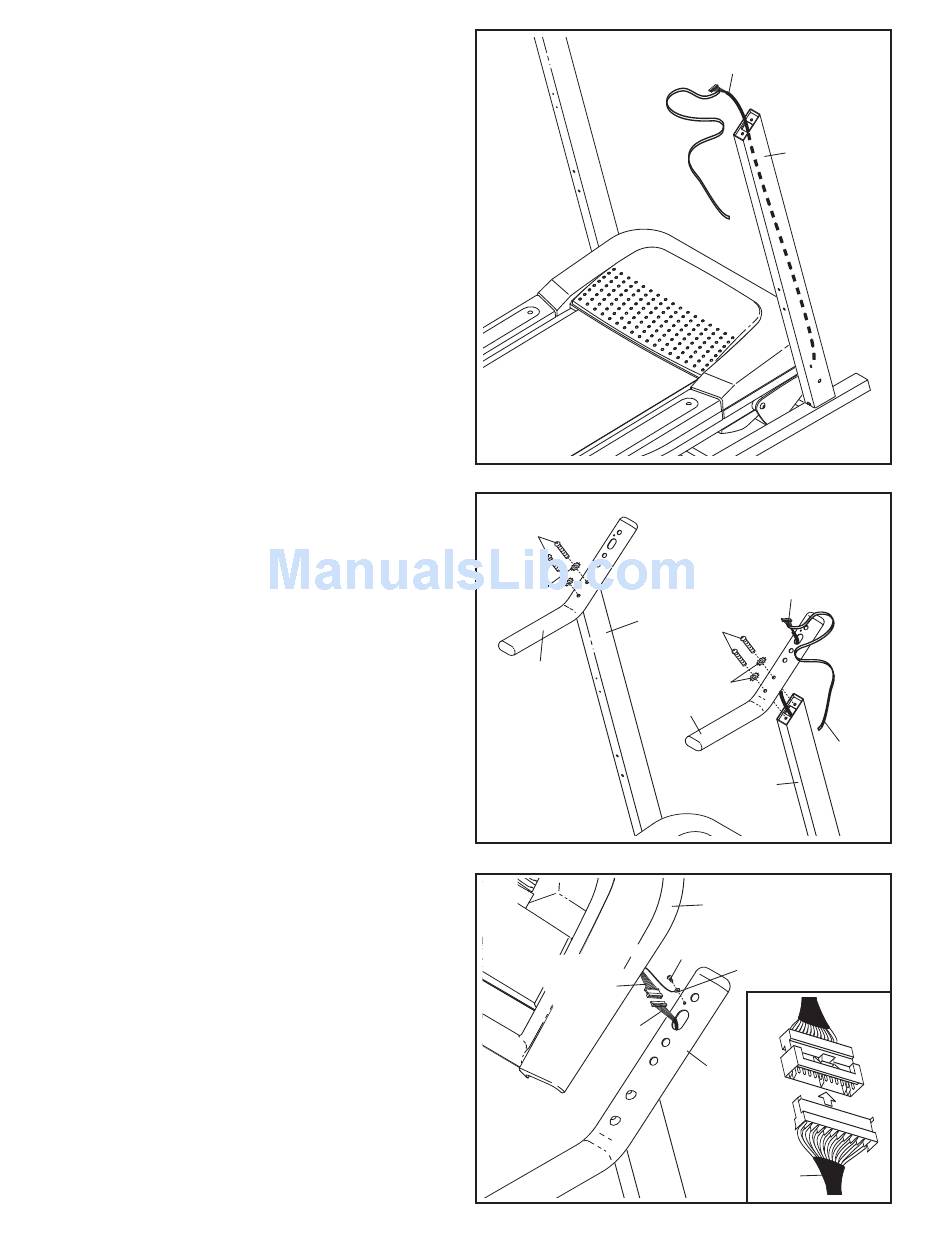

7. Gently pull the Upright Wire (69) to remove any
excess from the Right Upright (39).
8. Route the Upright Wire (69) through one of the
Handrails (40). Attach the Handrail to the Right
Upright (39) with two Handrail Bolts (9) and two
Handrail Star Washers (11). Be careful not to
pinch the Upright Wire.
Attach the other Handrail (40) to the Left Upright
(38) with two Handrail Bolts (9) and two Handrail
Star Washers (11). Firmly tighten the Handrail
Bolts.
Remove the tie from the Upright Wire (69).
9. Have another person hold the Console Base
(67) near the right Handrail (40). Attach the
ground wire on the Console Base to the right
Handrail with a No. 8 x 3/4" Screw (10).
Connect the wire harness on the Console Base
(67) to the Upright Wire (69) as shown in the
inset drawing. Important: If the connectors are
oriented correctly, they will slide together
easily and snap into place. If the connectors
are not oriented correctly, the console may
be damaged when the power is turned on.
