Automatic Combustion Control (ACC)
IMPORTANT: Read all instructions carefully before starting installation. Failure to follow these
instructions may result in a fire hazard and will void the warranty.
• Fig. 3,4,5,6, 7 and Table 1,2,3,4 relate to installations with tested flue systems; as per AS/NZS
2918:2001 - Appendix F, with a ceiling angle between 0° - 30° inclusive.
• For installations with a ceiling angle greater than 30°, refer to Fig. 18.1, 21.1 & 21.2 and AS/NZS
2918:2001 4.6.3(b)
• Ceiling Plate may vary in size depending on ceiling angle. Please specify ceiling pitch prior to
ordering the ceiling plate.
• Quadra-Fire Voyageur Grand ACC wood burner's are tested and approved to the N.Z. National
Environmental Standards;
GRAND-MBK-AU Voyageur Grand Insert Hardwood Certified
Particulate Emissions = 2.0 g/kg Space Heating Efficiency = 62.8%
Page 1

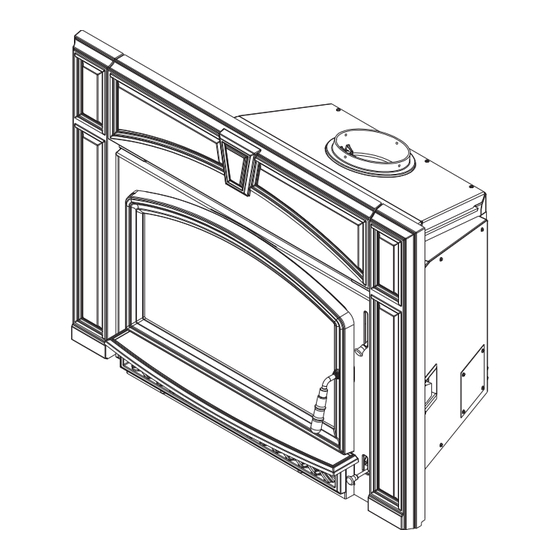

VOYAGEUR GRAND INSERT
OWNER'S MANUAL
Installation and Operations
GRAND-MBK-AU
INSTALLATIONS TO COMPLY WITH AS/NZS2918:2001
AND WILL REQUIRE A BUILDING CONSENT
Model:
7075-205
R
April 29, 2013
Advertisement
Table of Contents
Related Manuals for Quadra-Fire VOYAGEUR GRAND INSERT GRAND-MBK-AU
Summary of Contents for Quadra-Fire VOYAGEUR GRAND INSERT GRAND-MBK-AU
- Page 1 • Ceiling Plate may vary in size depending on ceiling angle. Please specify ceiling pitch prior to ordering the ceiling plate. • Quadra-Fire Voyageur Grand ACC wood burner’s are tested and approved to the N.Z. National Environmental Standards; GRAND-MBK-AU Voyageur Grand Insert Hardwood Certified Particulate Emissions = 2.0 g/kg Space Heating Efficiency = 62.8%...
-
Page 2: Congratulations
Hearth & Home Technologies welcomes you to our tradition our stoves, inserts and fireplaces. And yet we are old-fash- of excellence! In choosing a Quadra-Fire appliance, you ioned when it comes to craftsmanship. Each unit is meticu- have our assurance of commitment to quality, durability, and lously fabricated and surfaces are hand-finished for lasting performance. -
Page 3: Table Of Contents
Voyageur Grand Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. •... -
Page 4: User's Guide
Voyageur Grand User’s Guide Operating Instructions A. Quick Start Guide Note: These are generic drawings and may not represent your specific model. 10 Pieces of Newspaper, 10-20 Pieces of Dry Kindling FIRST FIRE ITEMS NEEDED: and a Few Pieces of Dry Split Wood. LOAD WOOD ADD NEWSPAPER OPEN AIR CONTROLS BURN HIGH... -
Page 5: Automatic Combustion Control (Acc)
Voyageur Grand B. Automatic Combustion Control (ACC) D. Burn Rates and Operating Efficiency Typically, when you build a fire, you open the air controls fully For maximum operating efficiency and monitor the fire to prevent it from going into an overfire 1. - Page 6 Voyageur Grand 6. The blower is equipped with a rheostat (speed control). The highest blower speed is obtained by turning the rheostat on, then adjusting back towards “OFF” as far as possible without turning the blower off. For a low blower speed, turn the control knob clockwise as far as possible Blower Controls Under Ash Lip MANUAL: over-...
-
Page 7: Disposal Of Ashes
Voyageur Grand Maitenance & Service Creosote - Formation and Need for Removal A. Disposal of Ashes • When wood is burned slowly, it produces tar and other • Frequency: When ash reaches the top of the brick organic vapors, which combine with expelled moisture covers (should not spill over covers). -
Page 8: Glass Cleaning
Voyageur Grand F. Inspect Firebrick & Replacement E. Glass Cleaning Instructions • Frequency: As desired • Frequency: After each ash removal • By: Homeowner • By: Homeowner • Clean glass with a non-abrasive glass cleaner. Abrasive cleaners may scratch and cause glass to crack. Replace the firebrick if they become crumbly and/or if •... -
Page 9: Quick Reference Maitenance Guide
Voyageur Grand G. Quick Reference Maintenance Guide Start the first inspection after the first 2 months of use, or if performance changes, and adjust your schedule CAUTION! Allow the appliance to completely cool accordingly. Maintenance is required for safe operation down before performing any cleaning or maintenance. -
Page 10: Trouble Shoot Guide
Voyageur Grand H. Troubleshooting Guide With proper installation, operation, and maintenance your woodstove will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist you or a qualified service person in the diagnosis of a problem and the corrective action to be taken. -
Page 11: Section 3: Service Parts Replacement
Handle glass with care. • Inspect the gasket to ensure it is undamaged. Blower • Do NOT strike, slam or scratch glass. • Do NOT operate appliance with glass & door assembly removed. • Do NOT operate with glass cracked, broken or Black scratched. Quadra-Fire appliances are equipped with ceramic super White Snap Disc heat-resistant glass, which can only be broken by impact or misuse. Power Cord Black Black White B. Snap Disc Replacement 1. -
Page 12: Blower Replacement
Voyageur Grand D. Blower Replacement CAUTION 1. The grille on the blower access assembly is hinged. Shock Risk Swing the grille downward to expose the 2 screws. • Do NOT remove grounding prong from plug. Figure 8.1 • Plug directly into properly grounded 3 prong 2. -
Page 13: Door Handle Assembly
Voyageur Grand F. Baffle & Ceramic Blanket Removal E. Door Handle Assembly 1. Install washer on door handle shaft. 1. Remove all ash from the firebox, and extinguish all hot embers before disposal into a metal container. 2. Slide door handle through door. 2. -
Page 14: Tube Channel Assembly Replacement
Voyageur Grand G. Tube Channel Assembly Replacement Removing Tube Channel Assembly Bend Back Tabs 1. Remove the 3 right side bricks. 2. Remove the baffle protection channel by bending back Baffle Protection Channel the tabs using needle nose pliers located at the right and left side of the protection cover. -
Page 15: Installer's Guide
Voyageur Grand Installer’s Guide Getting Started A. Tools And Supplies Needed Pre-Burn Check List Before beginning the installation be sure the following tools and building supplies are available: Place the appliance in a location near the final installation area and follow the procedures below: 7/16 Socket Framing materia Open the appliance and remove all the parts and... -
Page 16: Section 5: Dimensions And Clearances
Voyageur Grand Dimensions and Clearances A. Appliance Dimensions NOTE: Flue Collar size is 152 mm diameter (ID) 32 5/8 (829mm) 23 3/4 (602mm) 17 15/16 456 mm 5 (127mm) Figure 12.1 Top View Figure 12.2 Front View with Cast Surround Overall Sizes Metal Surround w/Cast Trim-STD 1080 mm... -
Page 17: Clearances To Combustibles (Ul And Ulc)
Voyageur Grand B. Clearances to Combustibles TOP TRIM (3/4” max depth) 22 1/2 35 1/4 (572mm) (896mm) (1092 mm) HEARTH EXTENSION (MINIMUM REQUIREMENT*) 46 5/16 (1176mm) MANTEL (12” max depth) 22 1/2 MINIMAL REQUIREMENT FOR (572mm) EXTENSION PROTECTION* THE HEARTH THERMAL PROTECTION MANTEL DEFLECTOR MINIMAL REQUIREMENT IS A MINIMUM REQUIRED... -
Page 18: Alternate Floor Protection Calculation
Depth approved by the regulatory authority having juris- Height diction Front Width *You will need to add additional clearances to these Quadra-fire Voyageur Grand ACC does not require a dimensions for your specific installation. Also allow suf- ficient clearance if you are installing an outside air kit. insulating Floor Protector, as they are tested and comply with the minimum Floor Protector requirements Figure 14.3 of AS/NZS 2918:2001. -
Page 19: Section 6: Chimney Systems
Voyageur Grand Chimney Systems A. Venting Systems 3. Both methods must be removable and replaceable for cleaning and re-installation. Chimney Connector: It is also known as flue pipe or stove • When possible, install an airtight clean-out door to the pipe. -
Page 20: Installation Into A Masonry Fireplace
Voyageur Grand E. Prefabricated Metal Chimney (Cont’d) flue, but will also help increase the unit’s efficiency and decrease creosote deposits in the chimney. To maintain the functionality of the fireplace’s chimney system you may use a Simpson Dura-Vent DuraLiner When a connected flue or liner is in use, the insert is able Slip Hanger, Part # 4671, and attach to the bottom of the to “breathe”... - Page 21 Voyageur Grand In USA a minimum 5 foot length, 6 inch diameter flue liner is required, however Hearth & Home Technologies strongly recommends a full reline for optimum performance. UL 1777 Insulated Stainless Steel Follow Manufacturer’s Liner or Other Approved Lining System Instructions for Maximum Liner Extension Above Follow Manufacturer’s Instructions...
-
Page 22: Section 7: Appliance Set-Up
Voyageur Grand Appliance Set-up Remove the zip tie to the lower WARNING access cover. It is to prevent the Fire Risk cover opening during shipping. Asphyxiation Risk Do not draw outside combustion air from: A. Outside Air Kit Installation • Wall, floor or ceiling cavity A source of air (oxygen) is necessary in order for combustion to •... -
Page 23: Optional Elbow Flue Adapter Installation
Simpson Durvent Pipe Distributor or from your local questionable use stove mastic Figure 20.2 Quadra-Fire dealer, Part Number DV-4615. 2. Attach gasket to bottom side of flue collar with a thin coat Figure 20.1 shows a vertical installation and also how to of silicone. -
Page 24: Securing Appliance To Stove Pipe/Liner
Voyageur Grand E. Securing Appliance to Stove Pipe/Liner F. Standard Surround & Trim Kit Installation Standard Size: 1092 mm W x 787 mm H 1. Once you have the appliance in place and secured, Large Size: 1295 mm W x 864 mm H remove the tube channel assembly, baffle board and 1. -
Page 25: Standard Surround & Cast Trim
Voyageur Grand G. Standard Surround & Cast Trim Kit is facing the front. Figure 22.2. Standard Size: 1080 mm. W x 762 mm H 7. Place the cast footers under the metal sides aligning the top Large Size: 1219 mm W x 864 mm H and bottom holes in the cast footers and metal sides. -
Page 26: All Cast Surround
Voyageur Grand H. All Cast Surround Kit I. Blower Cord Installation on Left Side Size: 1416 mm W x 762 mm H The blower cord is shipped to be installed on the right side Included in Surround Kit: (2) side pieces, left and right; (1) of the appliance. - Page 27 Voyageur Grand Green Grounding Wire Remove Screw Figure 24.4 6. Remove the screw that is holding the ground lug Figure 24.1 to the control plate. 4. Remove the 2 screws at the top of the control plate. Push the bottom of the control plate to the inside of the appliance and partially remove the control plate assembly.
- Page 28 Voyageur Grand White Wire Black Wire Green Grounding Fiber Wire Wrapped Wire Figure 25.1 Figure 25.4 8. The power cord is now disconnected from the blower 11. Connect the white wire on the power cord into the control plate. Pull the cord out through the right side fiber wrapped wire on the wire harness.
-
Page 29: Section 8: Reference Materials
Voyageur Grand Reference Materials A. WARNINGS: AS/NZS 2918:2001 General Notes WARNING: THE APPLIANCE AND FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE WITH AS/NZS 2918 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING CODE OR CODES. WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL COMPLY WITH THE REQUIREMENTS OF AS/NZS 4013 WHERE REQUIRED BY THE REGULA- TORY AUTHORITY, I.E. -
Page 30: Warranty Policy
Voyageur Grand AUSTRALIAN WARRANTY INFORMATION Hearth & Home Technologies Inc (HHT) 1445 N. Highway Colville, WA 99114 (509-684-3745) www.quadrafire.com HHT extends the following manufacturer’s warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance will be free from defects in materials and workmanship at the time of manufacture. - Page 31 Voyageur Grand OTHER RIGHTS The HHT manufacturer’s warranty is in addition to other rights and remedies that you may have under Australian law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
-
Page 32: Contact Information
CONTACT INFORMATION: Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL Read, understand and Leave this manual with • Important operating and • •...
