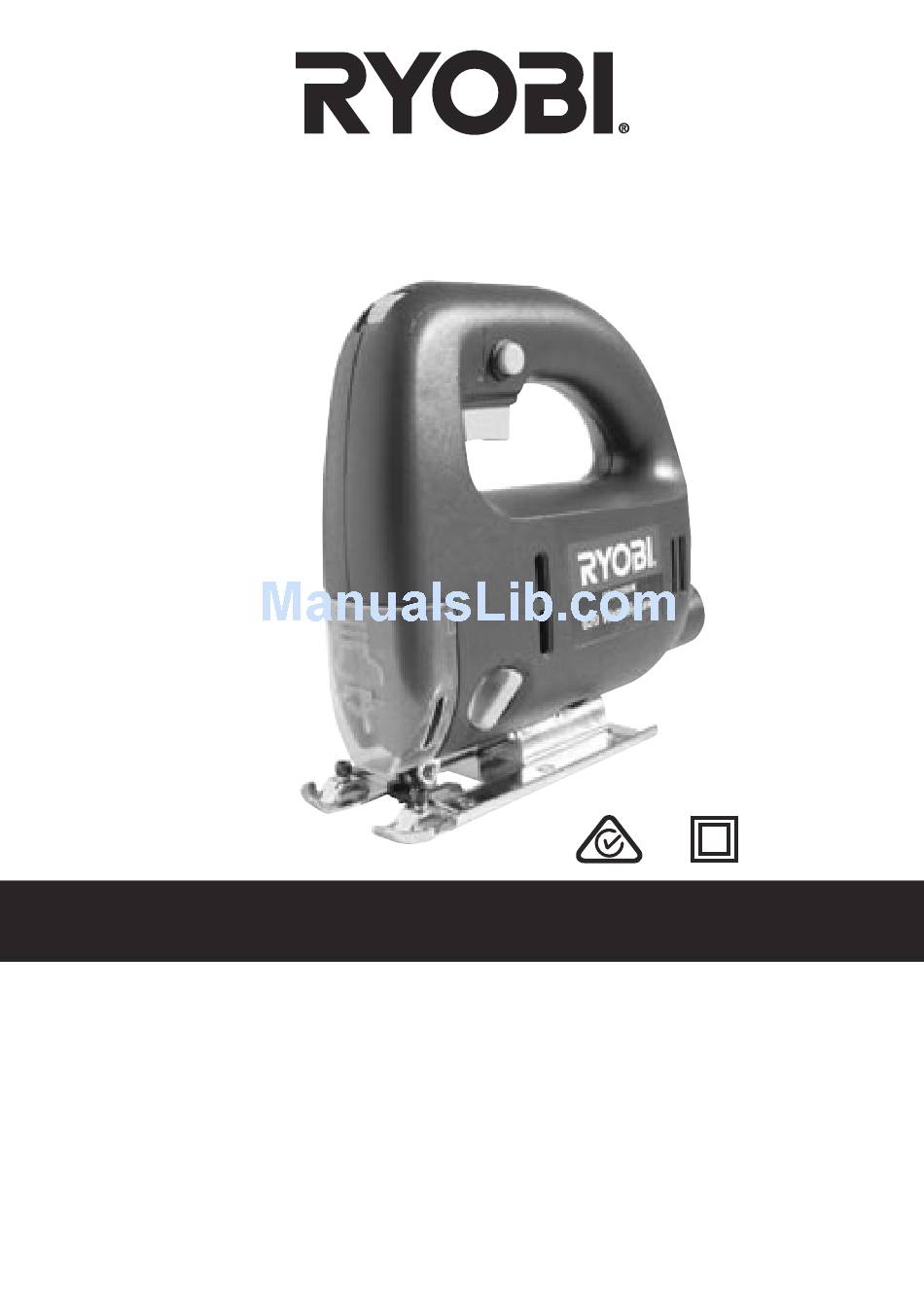

OWNER'S OPERATING MANUAL

SPECIFICATIONS:

Power Input . . . . . 620 watts

No Load Speed . . . 500 - 3000 rpm

Cutting Capacity

Timber . . . . . . . . . .65mm

Steel . . . . . . . . . . .5mm

Aluminium . . . . . .12mm

Bevel . . . . . . . . . . .0 - 45º

Weight . . . . . . . . . .1.5kg

IMPORTANT NOTICE: This JIG SAW is designed for light consumer use. It is ideal for

CUTTING jobs around the home. It is NOT designed for trade or industrial use and is not

covered by warranty for use in these applications.

THANK YOU FOR BUYING A RYOBI JIG SAW

Your new Jig Saw has been engineered and manufactured to Ryobi's high standard for

reliability, ease of operation, and operator safety. Properly cared for, it will give you years of

rugged, trouble free performance.

CAUTION: Carefully read through this entire owner's manual before using your Jig Saw

Pay close attention to the Rules for Safe Operation, Warnings, and Cautions.

If you use your Jigsaw properly and only for what it is intended, you will enjoy years of safe, reliable

service.

Thank you again for buying Ryobi tools.

620 Watt JIG SAW

MODEL COJ6220VK

SAVE THIS MANUAL FOR FUTURE REFERENCE

DOUBLE

INSULATED

Page 1 THANK YOU FOR BUYING A RYOBI JIG SAW Your new Jig Saw has been engineered and manufactured to Ryobi's high standard for reliability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble free performance.
Page 2: Rules For Safe Operation
For service we suggest you return the tool to they are not safety glasses. your nearest Ryobi Authorised Service Centre for repair. 11. PROTECT YOUR LUNGS. Wear a dust mask if When servicing, use only genuine Ryobi replacement operation is dusty.
Page 3 Fast cut • Variable Speed Variable Fig.5 orbital action Blade support speed Your Ryobi jig saw is Base roller dial control equiped with variable speed control to allow ■ APPLICATIONS selection of the correct (USE ONLY FOR THE PURPOSES LISTED speed for the material BELOW.)
Page 4 • Centre Cutting Cutting in the centre of a board can be done without first drilling a starting hole. Rest the base of the jig saw on the work as shown without the Fig.8 blade touching the work. Then slowly lower the moving blade against the board.
Page 5: Home Use Warranty
RYOBI NEW ZEALAND PTY. LTD. AUCKLAND: 503 Mt Wellington Highway, Mt Wellington, N.Z. Tel: (09) 573 0230 - Free Call: 0800 279 624 - Fax: (09) 573 0231 - Email: info@ryobi.co.nz Contact during normal business hours. THIS WARRANTY FORM SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES.
