Maytag MVWC200X User Manual

PRODUCT MODEL NUMBERS
MVWC200X, MVWC400X, MVWC450X, MVWX500X, MVWX600X, MVWX700X, MVWC300X,
MVWX550X, MVWC350A, MVWC360A, MVWC200B, MVWC300B, MVWC425B

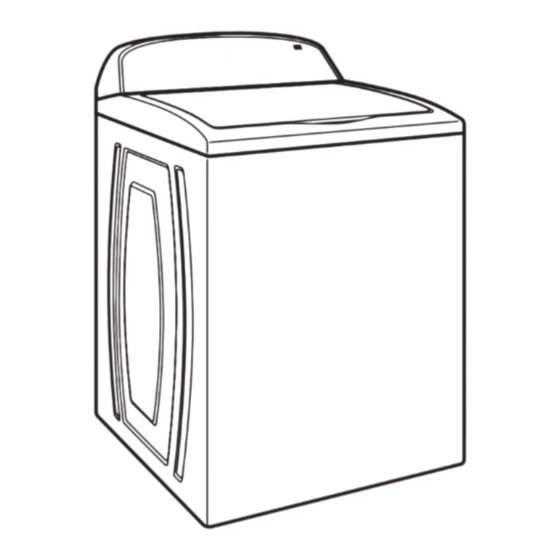

Washer dimensions
42"
(1067 mm)
27 / "
1
27"
2
(699 mm)
(686 mm)
Top-Loading Automatic Washer
Recessed area or closet installation
14" max.
(356 mm)
5"
(126 mm)
1"
(25 mm)
Dimensions show recommended spacing allowed, except for
closet door ventilation openings which are minimum required.
This washer has been tested for installation with spacing of
0" (0 mm) clearance on the sides. Consider allowing more space
for ease of installation and servicing, and spacing for companion
appliances and clearances for walls, doors, and floor moldings.
Add spacing of 1" (25 mm) on all sides of washer to reduce
noise transfer. If a closet door or louvered door is installed,
top and bottom air openings in door are required.
3"
(76 mm)
48 in.
(310 cm
17"
(432 mm)
24 in.
(155 cm
1"
3"
(25 mm)
(76 mm)
W10240509D
2
2 )
2
2 )
08/2013
