Maytag MVWC200 Dimensions And Installation

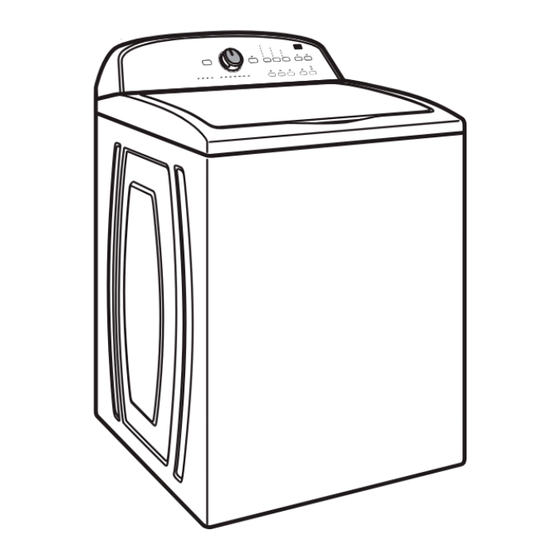

Maytag top-loading automatic washer.


PRODUCT MODEL NUMBERS
MVWC200X, MVWC400X, MVWC450X, MVWX500X, MVWX600X,
MVWX700X, MVWC300X, MVWX550X, MVWC350A, MVWC360A
Washer dimensions
42"
(1067 mm)
27
/
"
1
27"
2
(699 mm)
(686 mm)
Top-Loading Automatic Washer
Recessed area or closet installation
14" max.
(356 mm)
5"
(126 mm)
1"
(25 mm)
Dimensions show recommended spacing allowed, except for
closet door ventilation openings which are minimum required.
This washer has been tested for installation with spacing of
0" (0 mm) clearance on the sides. Consider allowing more space
for ease of installation and servicing, and spacing for companion
appliances and clearances for walls, doors, and floor moldings.
Add spacing of 1" (25 mm) on all sides of washer to reduce
noise transfer. If a closet door or louvered door is installed,
top and bottom air openings in door are required.
3"
(76 mm)
48 in.
(310 cm
17"
(432 mm)
24 in.
(155 cm
1"
3"
(25 mm)
(76 mm)
W10240509D
2
2
)
2
2
)
09/2012

Summary of Contents

  • Page 1

    Top-Loading Automatic Washer PRODUCT MODEL NUMBERS MVWC200X, MVWC400X, MVWC450X, MVWX500X, MVWX600X, MVWX700X, MVWC300X, MVWX550X, MVWC350A, MVWC360A Washer dimensions Recessed area or closet installation 3" " 27" (76 mm) (699 mm) (686 mm) 42" 14" max. 48 in. (356 mm) (310 cm (1067 mm) 17"...

  • Page 2

    ELECTRICAL REQUIREMENTS A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is recommended that a separate circuit serving only this appliance be provided. DRAIN SYSTEM Drain system can be installed using a floor drain, wall standpipe, floor standpipe, or laundry tub.
