Installation and Operation
Installation Overview
To install and set up the YCS SW2, follow these steps:
Mount the YCS SW2 on a rack shelf, furniture, or projector
1
if desired.
Connect your composite video and/or S-video input
2
source(s) to one or both YCS input connectors.
Connect your output device(s) to the YCS composite video
3
and/or S-video output connector(s).
Wire the provided 2-pin captive screw connector to the
4
external power supply. (See Wiring the Power Connector,
later in this chapter.)
If using autoswitching, insert the provided 5-pin captive
5
screw plug into the 5-pin connector on the YCS back
panel, and jumper-connect pins 4 and 5 together. (See
Autoswitching, later in this chapter.)
If using contact closure for input selection, connect a two-
6
button remote contact closure device to pins 1, 2, and 3 of
the captive screw connector on the YCS rear panel. (See
Contact Closure, later in this chapter.)
Apply power to the YCS SW2 and to the input and output
7
devices.
Mounting the YCS SW2
The YCS SW2 can be set on a table; mounted on a rack shelf;
mounted under a desk, podium, or table; or attached to a
projector.
Tabletop use
Four self-adhesive rubber feet are included with the YCS SW2.
For tabletop use, attach one foot at each corner on the bottom of
the unit, and place the YCS in the desired location.
2-2
YCS SW2 • Installation and Operation
Rack mounting
For optional rack mounting, do not install the rubber feet.
Mount the switcher on a 19" wide 1U VersaTools
(Extron part #60-190-20 or 60-604-20), a standard 1U Universal
or Basic rack shelf (Extron part #60-190-01 or 60-604-01), or
a Universal or Basic 1U 6-inch Deep Rack Shelf (Extron part
#60-190-10 or 60-604-10).
Mounting on a standard or VersaTools rack shelf
If feet were previously attached to the bottom of the YCS,
1.
remove them.
2.
Mount the YCS SW2 on the rack shelf, using two 4-40 x
3/16" screws in opposite (diagonal) corners to secure the
unit to the shelf (see fi gure 2-1, below).
3.
Install blank panel(s) or other unit(s) on the rack shelf as
desired.
VersaTools Rack Shelf
1/4 Rack Width Front
False Faceplate
Use 2 mounting holes on
opposite corners.

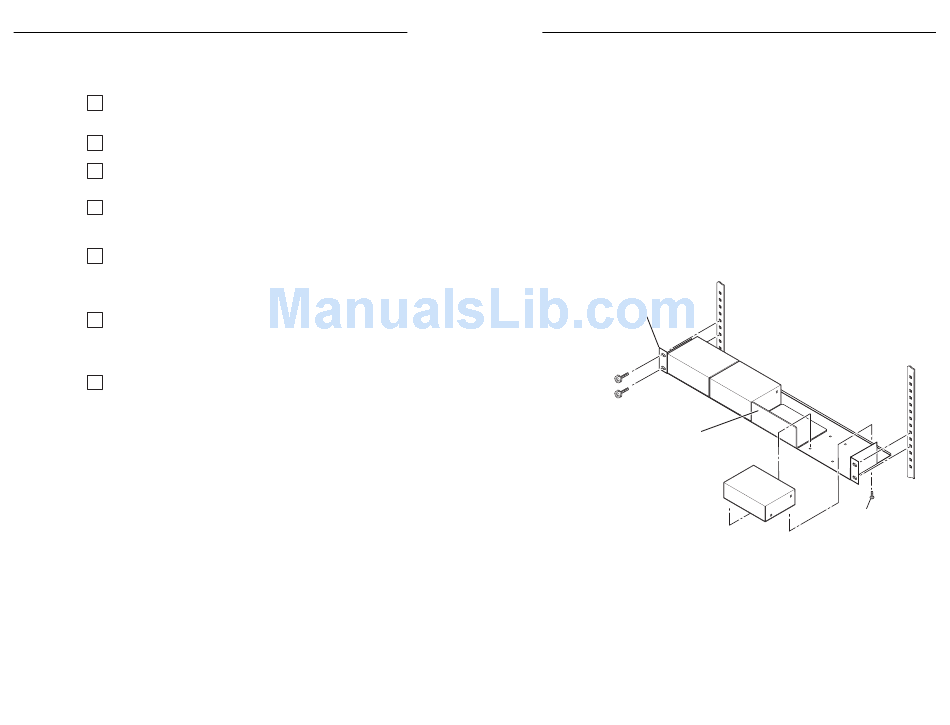

Figure 2-1 — Mounting a YCS SW2 (with other
units) on a VersaTools rack shelf
YCS SW2 • Installation and Operation
®
rack shelf
(2) 4-40 x 3/16"
Screws
2-3
