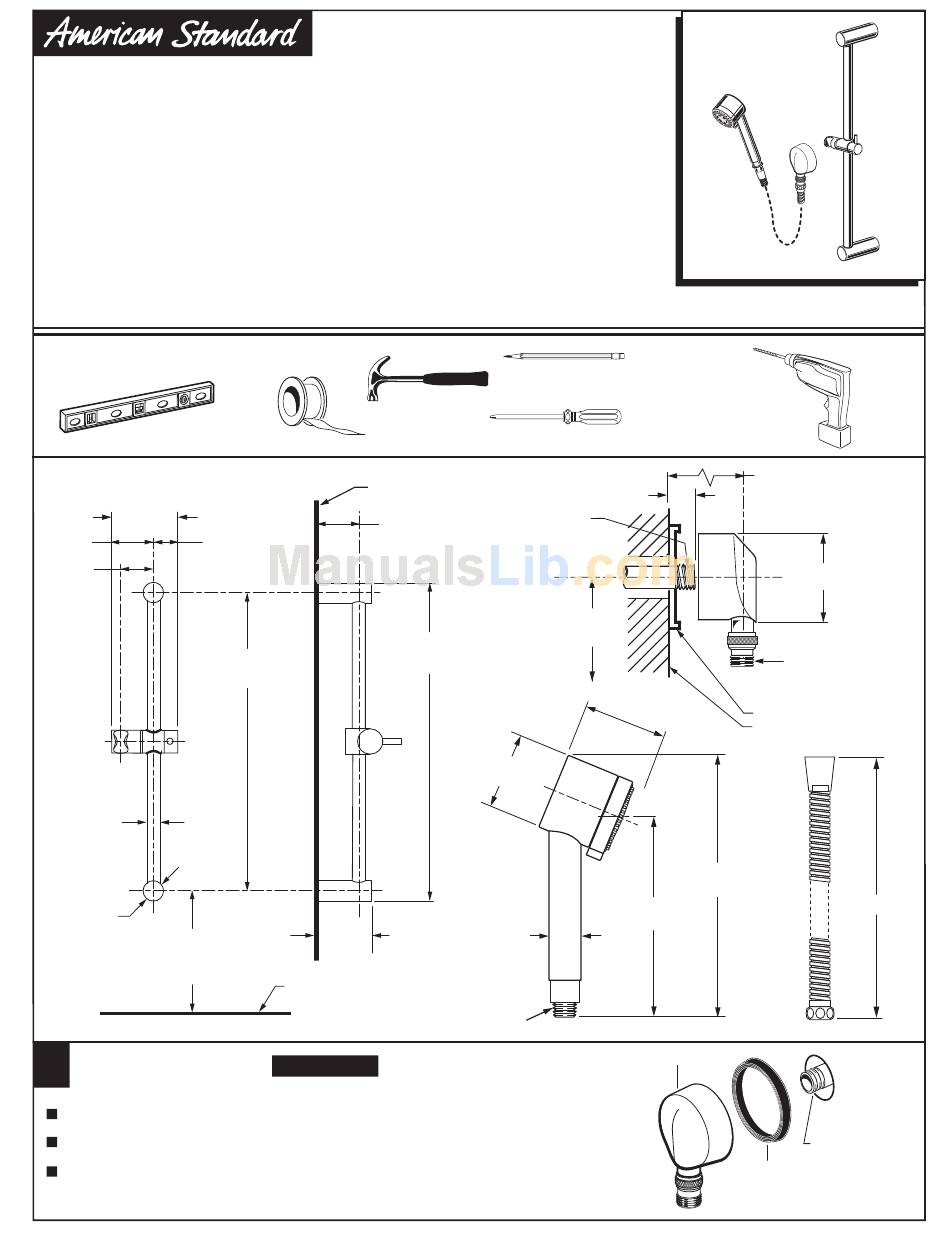

American Standard One Shower System 2064.724 Installation Instructions

ONE SHOWER SYSTEM
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended Tools & Materials
Level
ROUGHING-IN DIMENSIONS
95mm
(3-3/4)
54mm
41mm
(2-1/8)
(1-5/8)
38mm
(1-1/2)
586-595mm
(23-1/8, 23/3/8)
19mm
(3/4)
33.5mm
(1-3/16D.)
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
915mm 1219mm
TO
(36)
1
INSTALL WALL SUPPLY
Supply to WALL SUPPLY (1) is 1/2" NPT. See rough-in above for detailed information.
Install RUBBER SEAL (2) onto WALL SUPPLY (1).
Apply sealant or teflon tape to threads of 1/2" NPT supply nipple. Thread WALL SUPPLY (1)
onto supply nipple making a water tight seal. WALL SUPPLY (1) with RUBBER SEAL (2)
should be tight against finished wall.
Teflon Tape
FINISHED WALL
76mm
(3)
96mm
(3-3/4)
(48)
FINISHED FLOOR
Turn off hot and cold water
CAUTION
supplies before beginning.
Installation
Instructions
2064.724
Pencil
Hammer
Phillips Screwdriver
1/2" NPT
(48" - 60") (OPTIONAL)
TO FINISHED FLOOR
620mm
(24-3/8)
(2-3/8")
65mm
(2-1/2")
25mm
(1")
1/2" NPSM
Certified to comply with ANSI A112.18.1
10mm (3/8)
Drill Bit
Electric Drill
32mm
13mm
(1-1/4)
(1/2)
RUBBER GASKET
FINISHED
60mm
WALL
203mm
(8")
151mm
(6")
1
2
M 9 6 8 9 2 7 R e v . 1 . 1
53mm
(2-1/16)
1/2" NPSM HOSE
CONNECTION
59"
1/2" NPT
APPLY SEALANT
OR TEFLON TAPE
