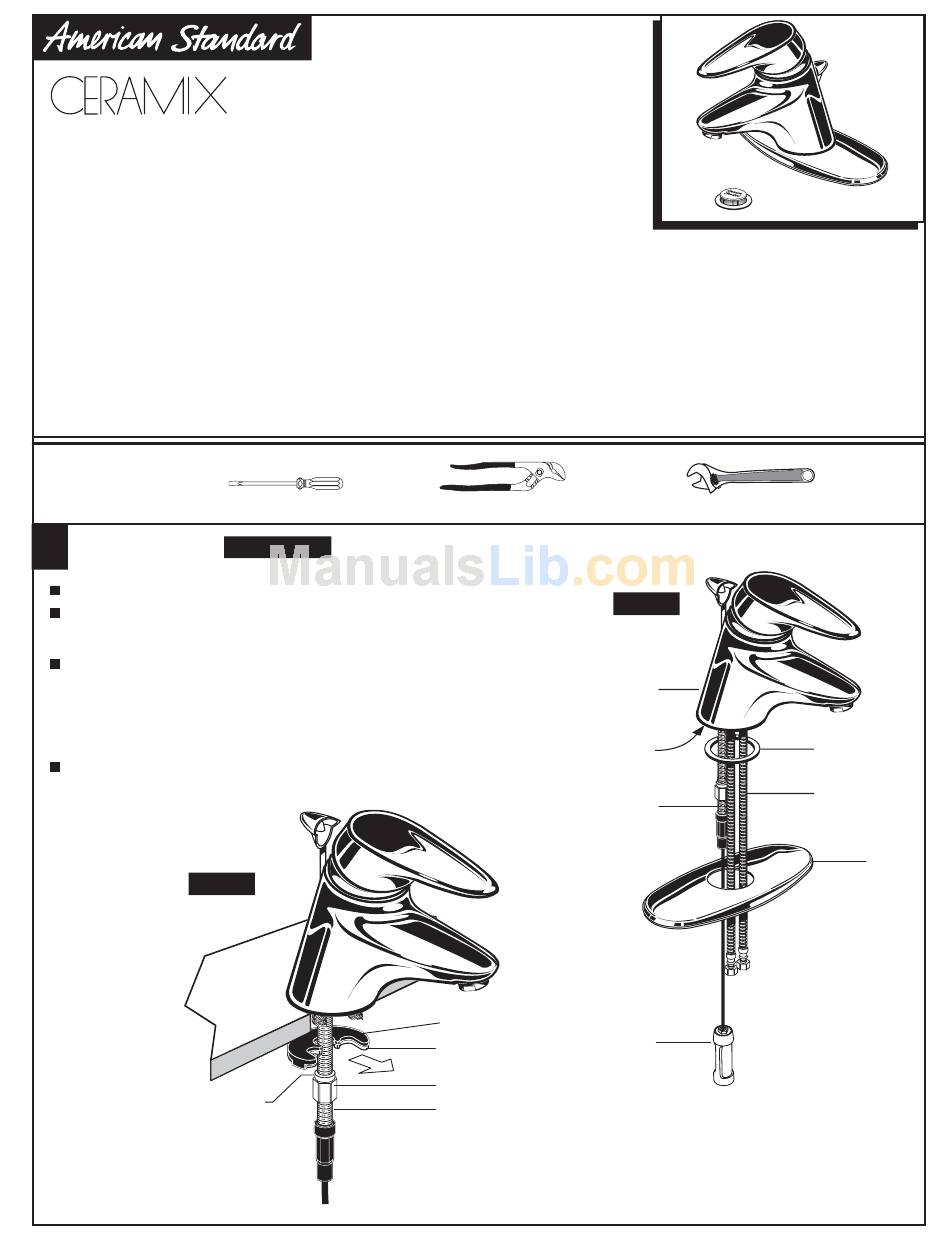

American Standard Ceramix 2000.10X Installation Instructions Manual

American standard centerset lavatory faucet installation instructions.


Centerset Lavatory Faucet with
Speed Connect™ Drain
Congratulations on purchasing your American Standard
faucet with Speed Connect drain, a feature found only on
American Standard faucets.
Speed Connect™ Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with the Speed Connect drain. Heplful tips for
removing your current drain can be found in the Troubleshooting section of these instructions.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Recommended tools
1
INSTALL FAUCET
Seat SEAL (1) into under side of FAUCET BASE (2).
Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and DRAIN
CABLE ASSEMBLY (8) through ESCUTCHEON (9) (optional) and the
mounting hole of lavatory or mounting surface. Fig. A.
From below, push GASKET (7) and RETAINING WASHER (5) onto
MOUNTING STUD (4). Secure Faucet with MOUNTING NUT (6),
pulling faucet to front of sink, so SUPPLIES (3) rests against
mounting hole. Before final tightening, make sure collar on
MOUNTING NUT (6) is seated into RETAINING WASHER (5).
Fig.B.
Adjust Faucet so that it is centered. Tighten MOUNTING NUT (6)
to complete faucet mounting.
Fig. B.
COLLAR ON
MOUNTING NUT
T M
Screwdriver
Turn off hot and cold water
CAUTION
supplies before beginning.
Installation
Instructions
2000.10X
2000.16X
Channel Locks
GROOVE
(FAUCET
BASE)
7
5
6
4
1
Certified to comply with ANSI A112.18.1
M 9 6 8 7 6 0 R e v . 1 . 3
Adjustable Wrench
Fig. A.
2
4
8
1
3
9

Summary of Contents

  • Page 1

    • Guaranteed to seal properly the first time, every time. *Your new American Standard faucet is designed to work only with the Speed Connect drain. Heplful tips for removing your current drain can be found in the Troubleshooting section of these instructions.

  • Page 2

    POP-UP DRAIN Remove CLEAR PLASTIC COVER (1). Remove CARDBOARD SPACER (2) from under DRAIN POP-UP (3). Tighten TAILPIECE (4) on DRAIN BODY before Fig. B. installing DRAIN BODY. REMOVE FLANGE Thread FLANGE (1) counter-clockwise and remove FLANGE (1) and FOAM GASKET (2) from drain Fig.

  • Page 3

    ATTACH CABLE CONNECTOR Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4” O.D. Fig. B. CHECK OPERATION OF POP-UP Operate LIFT KNOB (1) to verify that STOPPER (2) opens and closes.

  • Page 4

    TEST INSTALLED FITTING With HANDLE (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. Remove AERATOR (3). Operate HANDLE (1) to flush water lines thoroughly. Replace AERATOR (3). CHECK DRAIN CONNECTIONS Operate POP-UP KNOB (4) and fill lavatory with water. Check that DRAIN STOPPER (5) makes a good seal and retains water in SINK.

  • Page 5

    Speed Connect™ Drain Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •...

  • Page 6

    To install the stopper in “Unlocked” mode, insert the Stopper into the Drain so that the Plastic Loop is facing toward the front of the Sink and the American Standard logo is facing rear. Rotate Stopper slightly if necessary so that the Stopper slides all the way down.
