Metrologic IS4220 ScanGlove Installation And User Manual

Laser bar code scanner
Hide thumbs Also See for IS4220 ScanGlove:

Advertisement

Quick Links

METROLOGIC INSTRUMENTS, INC.
IS4220 ScanGlove
®
Laser Bar Code Scanner
Installation and User's Guide

Advertisement

Table of Contents
loading

Summary of Contents for Metrologic IS4220 ScanGlove

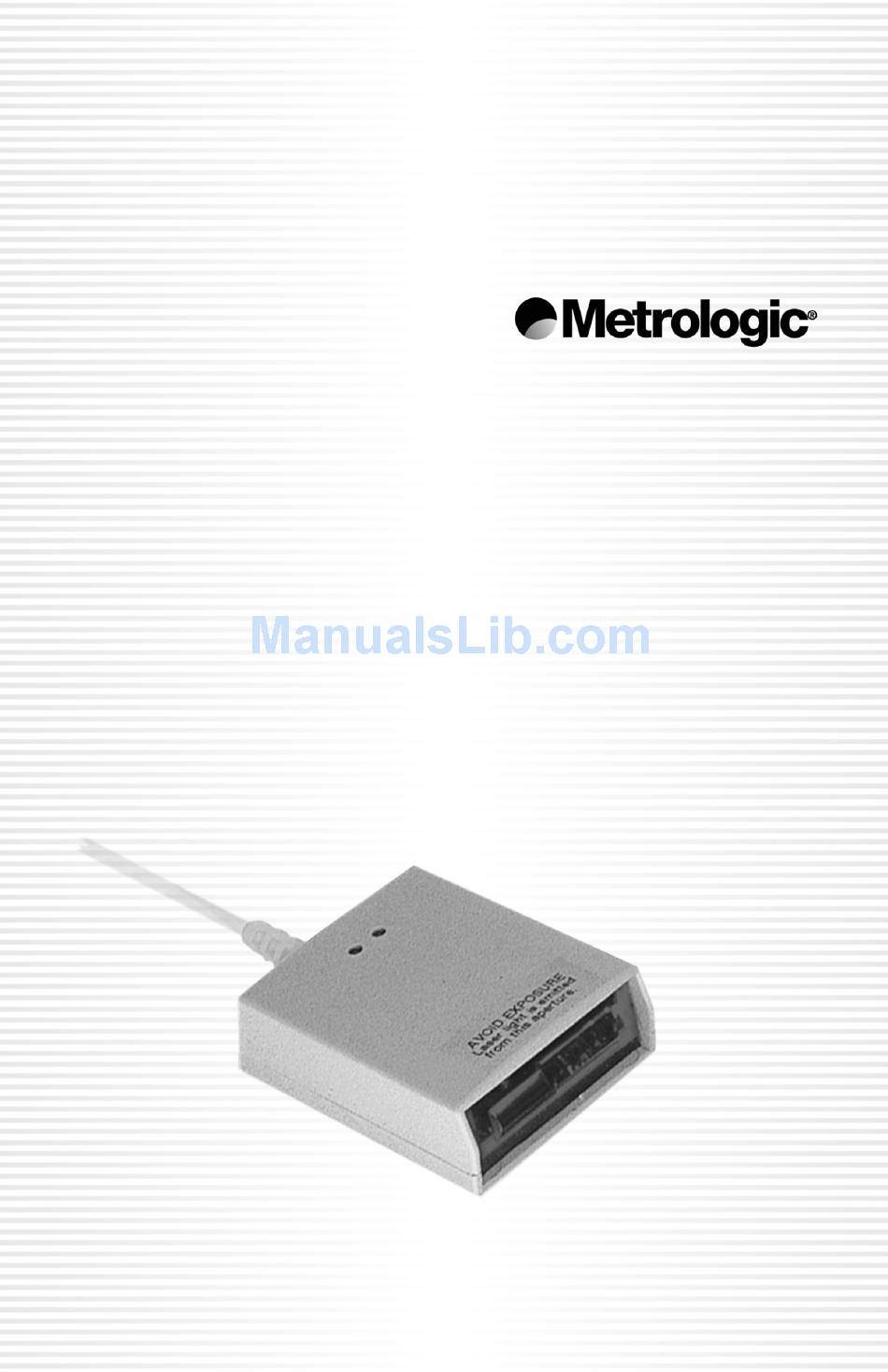

  • Page 1 METROLOGIC INSTRUMENTS, INC. IS4220 ScanGlove ® Laser Bar Code Scanner Installation and User’s Guide...
  • Page 3 Email: info@ru.metrologic.com Copyright © 2004 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.
  • Page 4: Table Of Contents

    ABLE OF ONTENTS Introduction ......................1 Scanner and Accessories ..................1 Scanner Installation....................2 Scanner Configuration to the Host System ............3 Parts of the Scanner .................... 4 Visual Indicators....................5 Audible Indicators....................9 Labels......................... 10 Maintenance....................... 10 Infrared (IR) Object Sensor ................11 Scan Field ......................
  • Page 5: Introduction

    NTRODUCTION The IS4220 ScanGlove ® is a fully automatic single-line laser barcode scanner. It is designed to be used as a “hands-free” wearable scanner or a stationary desktop scanner. Every ScanGlove is equipped with ScanQuest , a patented activation technology ®...
  • Page 6: Scanner Installation

    CANNER NSTALLATION Turn off power to the host system. Connect the communication cable to the proper port on the host device. Turn on power to the host system. When the IS4220 first receives power, the red LED will flash, the green LED will flash, and then the scanner will beep once.
  • Page 7: Scanner Configuration To The Host System

    CANNER ONFIGURATION TO THE YSTEM The IS4220 is shipped from the factory pre-programmed to a set of default parameters. It may be necessary to change the default parameters to match the host system’s requirements or to enable additional scanner functions. For a list of possible parameter settings, refer to the Default Settings section of this guide.
  • Page 8: Parts Of The Scanner

    ARTS OF THE CANNER Figure 1. Scanner Parts Item Description Green LED When a bar code is read successfully the green LED will flash. Red LED When the red LED is illuminated, the laser is on. Red Output Window (Laser Aperture) Infrared Sensor (IR) If a specified time has elapsed without any scanning, the unit will enter a “standby”...
  • Page 9: Visual Indicators

    ISUAL NDICATORS There is a red and a green LED located on the top of the scanner. When the scanner is on, the flashing or constant illumination of the LEDs indicates the status of the current scan and the scanner. Illumination of the LEDs will not occur if the scanner has No Red LED remained dormant for a specified time and the scanner is...
  • Page 10 IGNAUX PTIQUES Sur la partie supérieure du scanner se trouvent une diode LED rouge et une diode LED verte. Quand le scanner est sous tension, les diodes rouge et verte clignotantes ou allumées vous informent sur l'état de palpage et de scanner. Ni la diode Il existe deux raisons possibles pour que les diodes ne rouge, ni la...
  • Page 11 PTISCHE NZEIGEN Auf der Oberseite des Scanners befinden sich eine rote und eine grüne Leuchtdiodenanzeige. Ist der Scanner eingeschaltet, so geben Ihnen die blinkenden oder feststehenden Leuchtdiodenanzeigen Aufschluß über den Abtast und Scannerstatus. Es gibt zwei mögliche Gründe, weshalb die Leuchtdiodenan Weder rote zeigen nicht aufleuchten.
  • Page 12 EGNALI TTICI Sulla parte superiore dello scanner si trovano due diodi luminosi: uno rosso e uno verde. Quando lo scanner è inserito, i diodi luminosi, che possono o essere accesi in continuazione o lampeggiare, Vi informano sullo stato della scansione e dell’apparecchio.
  • Page 13: Audible Indicators

    UDIBLE NDICATORS The scanner provides sounds to signal certain conditions. To change the volume (four settings are available) or turn the beeper off, refer to Beeper Tones in the Programming Guide. One Beep When the scanner first receives power, the red LED will flash, followed by the green LED, and then the scanner will beep once.
  • Page 14: Labels

    ABELS Each IS4220 has a serial number label and a laser class label on the bottom of the unit. These labels provide important information like; date and location of manufacture, model number, serial number, caution statements and laser class. There is also text molded into the top of the case near the window that says, “AVOID EXPOSURE - laser light emitted from this aperture”.
  • Page 15: Infrared (Ir) Object Sensor

    (IR) O NFRARED BJECT ENSOR An infrared (IR) device located behind the window initiates the scanning process. The IR sensor is active as long as power is applied to the unit. When the IR sensor detects an object, the green LED will flash. When the laser decodes a bar code, the scanner transmits the data to the host system and emits a beep to show that decoding is complete.
  • Page 16: Scan Field

    Scan Field The depth of field for the scanner is 12.7 mm to 203 mm (.5" to 8") from the face of the output window for .33 (13 mil) Bar Codes. Figure 3. Scan Field for .33 (13 mil) Bar Codes Specifications subject to change without notice.
  • Page 17: Specifications

    PECIFICATIONS IS4220 S PECIFICATIONS PERATIONAL Light Source: 650 nm VLD Depth of Field: 12.7 mm to 203 mm (.5" to 8") for .33 (13 mil) bar code Width of Scan Field: 28.6 mm (1.125”) @ face; 102 mm (4”) @ 76.2 mm (3”) Scan Speed: 52 scans lines per second Scan Pattern:...
  • Page 18: Default Settings

    EFAULT ETTINGS Many functions of the scanner can be "programmed", that is enabled or disabled. The scanner is shipped from the factory programmed to a set of default conditions. All factory default parameters have an asterisk ( * ) in the default column of the charts on the following pages .
  • Page 19 EFAULT ETTINGS IGHT EYBOARD RS232 ARAMETER EFAULT EDGE ACK/NAK XON/XOFF No Intercharacter Delay 1 Millisecond Intercharacter Delay 5 Millisecond Intercharacter Delay 10 Millisecond Intercharacter Delay 25 Millisecond Intercharacter Delay 100 Millisecond Intercharacter Delay DTR Input DTR Scan Disable “DE” Disable Command LRC Calc+ Transmit RS232 Start LRC on first RS232 Byte Start LRC on Second RS232 Byte...
  • Page 20 EFAULT ETTINGS IGHT EYBOARD RS232 ARAMETER EFAULT EDGE Hong Kong Matrix 2 of 5 Airline 2 of 5 Minimum 1 Character Code Length Minimum 3 Character Code Length Minimum 6 Character Code Length Set Minimum Character Length Set Character Lock Length Transmit UPC-A Number Sys UPC-A Check Digit Transmit Convert UPC-A to EAN-13...
  • Page 21 EFAULT ETTINGS IGHT EYBOARD RS232 ARAMETER EFAULT EDGE ]C1 Transmit Coupon C128 Coupon 128 Group Separator Italian Pharmaceutial Codabar Start and Stop Class ITF Minimum Symbol Length Test Matrix 2 of 5 Check Digit Hong Kong Matrix 2 of 5 MSI - Plessey Test of Check Digit Enable MSI - Plessey Mod 10 Check Digit...
  • Page 22 EFAULT ETTINGS IGHT EYBOARD RS232 ARAMETER EFAULT EDGE RTS Counter Toggle Beep on BEL RS232 Bancorner Mode FedEX parsing Retransmit of Same Code Programmable Prefix ID Programmable Prefix ID Programmable Suffix ID Programmable Suffix ID Clear all Programmable Prefixes and Suffixes SNI Beetle Mode ATKeyboard...
  • Page 23: Troubleshooting Guide

    ROUBLESHOOTING UIDE The following guide is for reference purposes only. Contact a Metrologic representative at 1-800-ID-METRO or 1-800-436-3876 to preserve the limited warranty terms on page 20. YMPTOMS OSSIBLE AUSE OLUTION Make sure the cable is No Power is being plugged into the host.
  • Page 24: Limited Warranty

    IMITED ARRANTY ® The IS4220 ScanGlove scanners are manufactured by Metrologic at its Blackwood, New Jersey, U.S.A. facility. The IS4220 scanners have a two (2) year limited warranty from the date of manufacture. Metrologic warrants and represents that all IS4220 scanners are free of all defects in material, workmanship and design, and have been produced and labeled in compliance with all applicable U.S.
  • Page 25: Notices

    OTICES Notice This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 26: European Standard

    OTICES European Standard Warning This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Funkstöreigenschaften nach EN 55022:1998 Warnung! Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich Funkstörungen verursachen;...
  • Page 27: Patents

    ATENTS This METROLOGIC product may be covered by one or more of the following U.S. Patents: U.S. Patent No. 5,260,553; 5,340,971; 5,340,973; 5,424,525; 5,468,951; 5,484,992; 5,525,789; 5,528,024; 5,627,359; 5,661,292; 5,742,043; 5,756,982; 5,777,315; 5,789,730; 5,789,731; 5,825,012; 5,874,721; 5,886,337; 5,925,870; 5,925,871; 5,984,187; 6,029,894; 6,085,981; 6,189,793;...
  • Page 28: Index

    NDEX installation........1 interfaces ........1 application ........1 audible........5–9 autodiscriminates ......13 keyboard wedge..1, 13, 14–18 bar code ....4, 5–9, 10, 11, 19 beep ......5–9, 13, 14, 19 labels .......... 10 LED..... 4, 5–9, 11, 13, 19 light levels ........13 light pen emulation..
  • Page 29 NDEX razzberry tone ......9, 14 temperature ........ 13 red LED .........4, 5–9 termination ........13 repair ...........20 Test..........17 rights ...........23 test code ........19 RMA ..........20 tones ........9, 13 roll, pitch, yaw......13 troubleshooting ......19 RS232 ......13, 14–18 USB ........
  • Page 30 OTES...
  • Page 32 November 2004 Printed in the USA 0 0 - 0 2 3 4 8 C...
