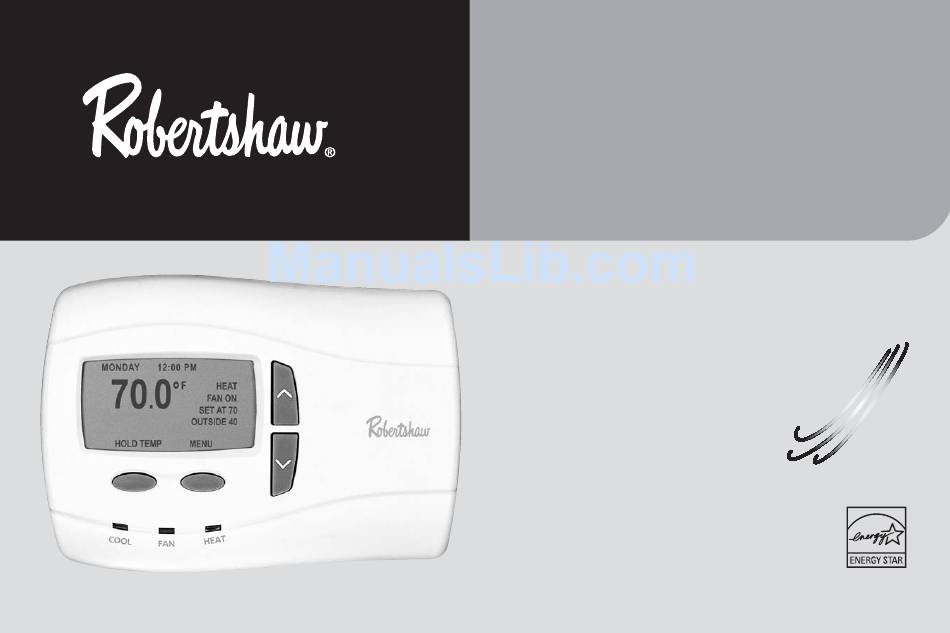

- Page 1 9901 DELUXE 9915 PROGRAMMABLE 9920 THERMOSTATS User's Manual Menu Driven Display Integrated Damper / Fresh Air Economizer Control Control 24 VAC with Worry-Free Memory Storage English and Spanish Menus 110-1069B Two Year Warranty...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING: Always turn off power at the main power source by unscrewing fuse or switching circuit breaker to the off position before installing, removing, or cleaning this thermostat. Read all of the information in this manual before programming this thermostat. This is a 24V AC low-voltage thermostat. -
Page 3: Table Of Contents
TABLE OF CONTENTS Changing the Time of Day ..................Page Turning on Heating and Cooling Cycles . -
Page 4: Changing The Time Of Day
Changing the Time of Day MONDAY 3:29 PM From the main screen press MENU. COOL 78.1 FAN AUTO SET AT 78 HOLD TEMP MENU MENU Use the UP or DOWN arrows to highlight DAY/TIME. Press SELECT. DAY / TIME FRESH AIR USER SETTINGS HOME SELECT... -
Page 5: Turning On Heating And Cooling Cycles
Turning on Heating and Cooling Cycles MONDAY 3:29 PM From the main screen press MENU. COOL 78.1 FAN AUTO SET AT 78 MENU HOLD TEMP MENU PROGRAM Use the UP or DOWN arrows to highlight HEAT/COOL. Press SELECT. HEAT / COOL DAY / TIME HEAT / COOL SETTINGS HOME... -
Page 6: What Do The Led's Below The Display Mean
Thermostat HEAT – The heating cycle has been Model HEAT COOL CHECK EMER activated. • • • 9901i FAN – The fan has been activated. • • • 9915i COOL – The cooling cycle has been • • • 9920i activated. -
Page 7: Fan Cycles
Fan Cycles MONDAY 3:29 PM COOL From the main screen press MENU. 78.1 FAN AUTO SET AT 78 HOLD TEMP MENU Use the UP or DOWN buttons until FAN is highlighted. Press SELECT. MENU HEAT / COOL FRESH AIR DAY / TIME Use the UP or DOWN buttons to highlight FAN settings. -
Page 8: Temporary Temperature Adjustments
Temporary Temperature Adjustments MONDAY 3:29 PM COOL 78.1 From the main screen, press the UP or DOWN button. The screen FAN AUTO will change to the following. SET AT 78 HOLD TEMP MENU SET AT Use the UP or DOWN button to adjust to the desired temperature. -
Page 9: Timed Temperature Adjustment
Timed Temperature Adjustments MONDAY 3:29 PM COOL 78.1 Press the HOLD TEMP button. The following screen appears. FAN AUTO SET AT 78 HOLD TEMP MENU HOLD SETTINGS PERMANENT HOLD Press the DOWN button to highlight TEMPORARY HOLD. Press SELECT. TEMPORARY HOLD VACATION HOLD SELECT HOME... -
Page 10: Permanent Hold
Permanent Hold MONDAY 3:29 PM COOL From the main screen press the HOLD TEMP button. The following screen appears. 78.1 FAN AUTO SET AT 78 HOLD TEMP MENU HOLD SETTINGS The PERMANENT HOLD feature should be highlighted. If it is not, use PERMANENT HOLD the UP or DOWN arrow to highlight it. -
Page 11: Vacation Hold
Vacation Hold MONDAY 3:29 PM From the main screen press the HOLD TEMP button. The following screen appears. COOL 78.1 FAN AUTO SET AT 78 HOLD TEMP MENU HOLD SETTINGS Use the UP or DOWN arrow to highlight the VACATION HOLD feature. PERMANENT HOLD Press SELECT. -
Page 12: Programming
Programming MONDAY 3:29 PM COOL 78.1 FAN AUTO From the main screen press the MENU button. SET AT 78 HOLD TEMP MENU MENU PROGRAM Use the UP or DOWN button to highlight PROGRAM. Press SELECT. HEAT / COOL FRESH AIR DAY / TIME HOME SELECT... - Page 13 Programming (Con’t.) MONDAY PROGRAM HEAT COOL 8:30AM The time for the first event should be highlighted. Use the UP or DOWN key to change the time. DUSK 5:00PM Press SET TIME. UNOCC 6:00PM COPY BACK SET TIME MONDAY PROGRAM HEAT COOL 8:30AM The heating setpoint for the first event will be highlighted.
-
Page 14: Copy Command
Copy Command MONDAY PROGRAM HEAT COOL 8:30AM In the program screen, press the DOWN button until COPY is highlighted. DUSK 5:00PM Press SELECT. UNOCC 6:00PM COPY NOTE: Copy command will appear only if programming an individual day. MAIN MENU SELECT COPY MONDAY TO Use the UP or DOWN button to highlight the TUESDAY... -
Page 15: Events
Events An event is a programming period. This could be the period in the morning when the facility is occupied. It could be the period when no one is at work. It could be the evening. The time for an event is selected based on when you want the event to occur. For example, if people start to arrive at the facility at 6:30 AM, set the first event for 6:30 AM. -
Page 16: Setting The Economizer / Damper Program
Setting the Economizer / Damper Program MAIN MENU The thermostat can be set to open or close a damper or economizer at different times during the day. To program this setting, select FRESH AIR from the main menu and press SELECT. HEAT / COOL DAY / TIME FRESH AIR... -
Page 17: User Settings
User Settings MONDAY 3:29 PM COOL The USER SETTINGS can change the way information is displayed on the thermostat and help 78.1 FAN AUTO to optimize comfort. It’s one way to truly personalize your new thermostat. SET AT 78 HOLD TEMP MENU MENU DAY / TIME... - Page 18 Detailed Information on the USER SETTINGS To select a USER SETTING, use the UP or DOWN button to highlight the desired value. Press SELECT to select desired value. TEMPERATURE TEMPERATURE: Fahrenheit or Celsius ˚F Temperature will be displayed in F or C. ˚C USER MENU SELECT...
- Page 19 More Detailed Information on the USER SETTINGS DIFFERENTIAL SETTINGS DIFFERENTIAL SETTING The temperature differential is your comfort level. The differential is the difference from setpoint 1ST DIFF 1.0°F before your heating or cooling system will turn on. The 9915i and 9920i models also have 2 2ND DIFF 2.0°F stage differential.
- Page 20 More Detailed Information on the USER SETTINGS LANGUAGE SETTING This screen allows you to choose the displayed language; English or Spanish. ENGLISH ˜ ESPANOL USER MENU SELECT SECURITY SETTINGS SECURITY In order to prevent tampering with the program and desired settings, two levels of security are avail- able.The first will allow only temporary changes to the temperature.
-
Page 21: Installer Settings
MAIN MENU SELECT MAIN MENU SELECT SELECT SYSTEM SETUP SYSTEM SETUP FURNACE The 9901i has a furnace or heat pump system selection. HEAT PUMP INSTALL MENU SELECT 1ST STAGE HEATING GAS / OIL 1st STAGE HEATING ELECTRIC The 9915i can have a gas/oil or electric first stage heating. - Page 22 INSTALLER SETTINGS (continued) AUXILIARY HEAT AUXILIARY HEAT STANDARD - COMP. =ON The 9920i can be set to use your 2H/2C heat pump internal auxiliary heating or to use an exter- ADD ON - COMP. =OFF nal add-on source. The add-on feature will be used most often when a single stage heat pump uses a gas or electric furnace as its second stage of heating.
- Page 23 INSTALLER SETTINGS (continued) ENERGY EFFICIENT RECOVERY ENERGY EFFICIENT RECOVERY DISABLE When turned on, the thermostat will look up to two hours before the next event and anticipate when ENABLE to turn on to reach the desired temperature. INSTALL MENU SELECT AUTOCHANGE DEADBAND DEADBAND SETPOINT Deadband is used with the AUTO CHANGEOVER feature.
- Page 24 Two menus are available for the 9920i, the System Monitor and the Filter Monitor. Three menus are HEAT MONITOR 980 available for the 9901i and the 9915i, the Cool Monitor, the Heat Monitor and the Filter Monitor. All FILTER MONITOR 980 can be set based on the HVAC system run time or the calendar.
-
Page 25: Energy Efficient Recovery™ (Eer™)
Changing INSTALLER SETTINGS The INSTALLER SETTINGS are selected based on the type of equipment you have in your facility. This feature should be set only by a certified HVAC technician. Changing these settings could result in higher energy costs and may even damage the equipment. You should only change the FILTER MONITOR length should you get a new type of filter. -
Page 26: Additional Information
Additional Information For additional troubleshooting information, visit our web site at www.about-i-series.com. To talk with a service representative, give us a call at 800-445-8299. Power Outage Protection The thermostat automatically retains the time of day for approximately two hours in the event of a power outage. All other programmed parameters are stored permanently in memory. - Page 27 TWO YEAR LIMITED WARRANTY The manufacturer warrants to the original contractor installer or to the original consumer user, each new Robertshaw thermostat to be free from defects in materials and workmanship under normal use and service for a period of two (2) years from the date of purchase. This warranty does not cover batteries (if so equipped), damage caused by batteries, damage resulting from improper installation, alteration, misuse or abuse of the thermostat occurring after the date of purchase.
- Page 28 Controls Americas 515 Promenade Avenue Corona CA 92879-1736 United States of America Made in Mexico Patents Pending 110-1069B www.about-i-series.com...
