110-737
3/11/04
8:15 AM
I N T E G R A T E D C O M F O R T S O L U T I O N S
110-737
As an Energy Star partner, Maple Chase has
determined that this thermostat product meets
the Energy Star guidelines for energy efficiency.
Important Safety Information Warning:
•
Always turn off power at the main power source by unscrewing
fuse or switching circuit breaker to the off position before installing,
removing, cleaning or servicing thermostat.
•
Read all of the information in this manual before installing or
programming this thermostat.
•
This is a 24V AC low-voltage thermostat. Do not install on voltages
higher than 30V AC.
•
All wiring must conform to local and national building and electrical
codes and ordinances.
•
Do not short (jumper) across terminals on the gas valve or at the
system control to test installation. This will damage the thermostat
and void the warranty.
Page 1

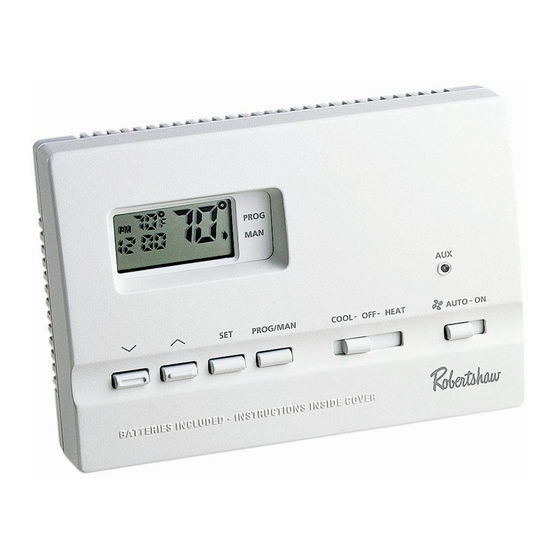

9615
®
™
E
G
ELECTRIC
GAS
7 Day Programmable
2 Heat / 2 Cool
User's Manual
Quick Start
Installation and
Programming
©1999 Maple Chase Company
1
DIGITAL
PROGRAMMABLE
THERMOSTAT
Advertisement
Table of Contents
Related Manuals for Robertshaw 9615
Summary of Contents for Robertshaw 9615
-
Page 1: Quick Start
110-737 3/11/04 8:15 AM Page 1 9615 DIGITAL PROGRAMMABLE THERMOSTAT ® ™ I N T E G R A T E D C O M F O R T S O L U T I O N S ELECTRIC 7 Day Programmable 2 Heat / 2 Cool User’s Manual... -
Page 2: Replacing Existing Thermostat
110-737 3/11/04 8:15 AM Page 2 Features • Four pre-programmed Energy Star setpoints for each day of the week • Quickset™ programming for quickly programming all days of the week simultaneously • Energy Efficient Recovery (EER™) • Residual cooling for added air-conditioning efficiency •... -
Page 3: Installation
110-737 3/11/04 8:15 AM Page 3 FIGURE 1 Installing Item 9615 Thermostat NOTE: F , 4-5 OR NEW INSTALLATIONS MOUNT THERMOSTAT ON INSIDE WALL FEET ABOVE THE FLOOR O NOT INSTALL BEHIND A DOOR IN A CORNER NEAR AIR VENTS... - Page 4 110-737 3/11/04 8:15 AM Page 4 FIGURE 3 MOUNTING HOLES PROG MORN DAY EVE NITE EER CHANGE PROG/MAN COOL OFF HEAT FAN AUTO ON 7. Drill the marked holes using a 3/16" drill bit. NOTE: Enclosed plastic anchors do not require a drilled hole for drywall. 8.
-
Page 5: Programming Guide
110-737 3/11/04 8:15 AM Page 5 Programming Guide Set Time of Day, Day of Week, Temperature Differential, Residual Cooling 1. Press SET & PROG/MAN. Release simultaneously. SET PROG/MAN PROG SET PROG/MAN COOL-OFF-HEAT AUTO - ON Press to change Time of Day. 2. -
Page 6: Changing Fahrenheit (F) To Celsius (C)
110-737 3/11/04 8:15 AM Page 6 5. Press Press SET P To change Residual Cooling NOTE: T HE RESIDUAL COOL FEATURE WILL KEEP THE SYSTEM FAN ON FOR AN 30, 60 ADDITIONAL SECONDS AFTER THE COMPRESSOR CYCLES OFF HE RESIDUAL OOL FEATURE CAN ONLY BE SET IN THE OOL MODE Changing Fahrenheit (F) to Celsius (C) - Page 7 110-737 3/11/04 8:15 AM Page 7 4. Press SET. SET PR PROG SET PROG/MAN COOL-OFF-HEAT AUTO - ON 5. Press to change MORN temperature. 6. Repeat Steps 2-5 for DAY, EVE, and NITE. 7. Repeat steps 2–6 above to program COOL-OFF-HEAT any other day of the week.
-
Page 8: Reset
110-737 3/11/04 8:15 AM Page 8 Energy Efficient Recovery EER™ EER™ allows your system to operate at peak efficiency for optimal energy savings. EER™ looks up to 2 hours prior to the end of a set-back period to begin monitoring system performance and determine the most efficient time to turn on your system. -
Page 9: To Test Thermostat
110-737 3/11/04 8:15 AM Page 9 To Test Thermostat WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS VALVE OR SYSTEM CONTROL TO TEST OPERATION. THIS WILL DAMAGE THE THERMOSTAT AND VOID YOUR WARRANTY. CAUTION: D 50°F (10°C). T O NOT SWITCH SYSTEM TO COOL IF THE TEMPERATURE IS BELOW HIS CAN DAMAGE THE AIR CONDITIONING SYSTEM AND CAUSE PERSONAL INJURY COOL-OFF-HEAT... -
Page 10: Troubleshooting
110-737 3/11/04 8:15 AM Page 10 Troubleshooting SYMPTOM REMEDY Thermostat does not turn Check Wiring. on system. (See “INSTALLATION.”) Check fuse. Replace with 3 amp fuse if fuse has opened. Five minute compressor short cycle protection may be in effect. Press RESET to override. -
Page 11: Wiring Diagrams
Wiring Diagrams The following is just a sample of the most common types of HVAC sys- tems. Refer to your system’s installation manual for wiring information. Robertshaw 9615 Multi-Stage Thermostat Y1 W1 Y/Y1 2 Stage Heat / 1 Stage Cool... - Page 12 110-737 3/11/04 8:15 AM Page 12 Five-Year Limited Warranty Maple Chase Company warrants to the original contractor installer, or to the original consumer user, each new Robertshaw thermostat to be free from defects in materials and workmanship under normal use and service for a period of five (5) years from date of purchase.
