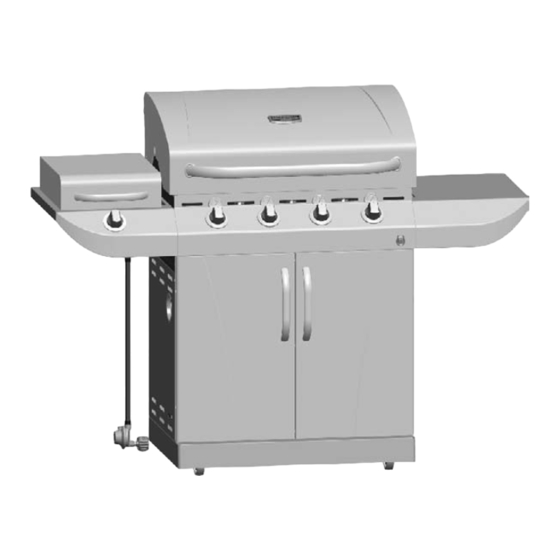

Char-Broil Commercial 463247209 Product Manual

Commercial series
Hide thumbs
Table of Contents

Advertisement

Quick Links

The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Char-Broil®; America's Legendary Barbeque Company®;
American Gourmet®; Bandera®; BrushHawg®; CB940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; DiamondFlame®; Everybody Grills®; Everybody Outside®;
FastStart®; Fireball®; Firenzy®; FlavorMaster®; Grill2Go®; Grill2Go® Express®; Grill Lovers®; H20 Smoker®; Keepers of the Flame®; New Braunfels Smoker
Company®; Oklahoma Joe's®; Patio Bistro®; Patio Caddie®; Patio Kitchen®; Precision Flame®; Quantum®; Santa Fe®; Sear and Grill®; Sierra®; Signature
Series®; The Big Easy®; The Minute Grill®; Trentino®; Wild West Tradition®; and the following marks:
The following are trademarks of W.C. Bradley Co.: Commercial Series™; Designer Series™; Grill2Go® Advantage™; Longhorn™; Double Chef™; QuickSet™;
Ready When You Are™; Hog and Yard Bird™; You Bring the Party™; SureFire™; Universal Grill Parts™
TEC™ is a trademark of Tec Infrared Grills.
Protected under one or more of the following U.S. Patents: 4,989,579; 5,421,319; 5,458,309; 5,579,755; 5,996,573; 6,114,666; 6,135,104; 6,209,533; 6,279,566; 6,331,108; 6,484,900; 6,526,876; 6,595,197; 6,640,799; 6,640,803; 6,729,873; 6,739,473; 6,749,424;
6,863,100; 6,935,327; 6,951,213; 6792,935; 7,047,590; D364,535; D372,637; D373,701; D377,735; D383,035; D397,910; D405,643; D406,005; D406,009 ; D413,043; D413,229; D414,982; D415,388; D416,164; D416,441; D417,587; D417,588; D422,516; D423,876;
D428,303; D430,772; D435,396; D436,004; D438,059; D438,060; D438,427; D439,110; D442,505; D443,179; D443,354; D443,464; D447,384; D447,385; D447,909; D448,610; D448,614; D448,615; D448,616; D448,975; D449,492; D450,544; D451,759; D454,028;
D454,031; D455,205; D455,206; D456,202; D456,222; D456,223; D457,789; D458,520; D458,760; D458,802; D459,088; D459,148 D459,149; D459,161; D459,163; D459,586; D459,943; D460,312; D460,313; D460,318; D461,359; D465,123; D465,693; D466,307;
D466,439; D466,752; D473,414; D474,371; D477,498; D477,501; D477,504; D477,506; D477,746; D478,471; D478,472; D480,914; D491,410; D494,009; D494,413; D498,523; D500,359; D504,048; D530,098; D535,000; Canada: 87,743; 87,744; 97,504; 99,355;
102,037; 104,200; 2,315,567; 2,336,036; France: 010,231; 010,422; 010,590; 010,849; 1,089,646; Germany: 1,089,646; South Korea: 384,565; China: 99,127,066.5; United Kingdom: 2,099,402; 1,089,646. Other Patents Pending.
© 2008 W.C. Bradley Company
© 2008 Char-Broil, LLC Columbus, GA 31902
PRODUCT GUIDE
MODEL 463247209
IMPORTANT: Fill out the product record information below.
Serial Number
See rating label on grill for serial number.
Date Purchased
For support and to register your
grill, please visit us at
www.charbroil.com
If you have questions or need
assistance during assembly,
please call 1-800-241-7548.
®
®
TM REVISION 00
Rev. 03• 08-15-08 • 80007556

Advertisement

Table of Contents
loading

Related Manuals for Char-Broil Commercial 463247209

Summary of Contents for Char-Broil Commercial 463247209

  • Page 1 1-800-241-7548. The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Char-Broil®; America's Legendary Barbeque Company®; American Gourmet®; Bandera®; BrushHawg®; CB940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; DiamondFlame®; Everybody Grills®; Everybody Outside®;...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS DANGER For Your Safety ........2-3 If you smell gas: Use and Care .
  • Page 3 WARNING CALIFORNIA PROPOSITION 65 1. Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm. 2. This product contains chemicals, including lead and lead compounds, known to the State of California to cause cancer, birth defects or other reproductive harm.

  • Page 4: Use And Care

    LP Cylinder USE AND CARE • The LP cylinder used with your grill must meet the following requirements: DANGER • Use LP cylinders only with these required measurements: 12" (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum.

  • Page 5: For Your Safety

    LP Cylinder Exchange Connecting Regulator to the LP Cylinder • Many retailers that sell grills offer you the option of replacing 1. LP cylinder must be properly secured onto grill. (Refer to your empty LP cylinder through an exchange service. Use only assembly section.) those reputable exchange companies that inspect, precision fill, 2.
  • Page 6 Leak Testing Valves, Hose and Regulator 1. Turn all grill control knobs to OFF. 2. Be sure regulator is tightly connected to LP cylinder. 3. Completely open LP cylinder valve by turning hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately.
  • Page 7 Safety Tips WARNING ▲ Before opening LP cylinder valve, check the coupling nut for tightness. ▲ When grill is not in use, turn off all control knobs and LP For Safe Use of Your Grill and to Avoid Serious Injury: cylinder valve.
  • Page 8 Burner Flame Check WARNING • Remove cooking grates and flame tamers. Light burners, rotate knobs from HIGH to LOW . You should see a smaller Turn controls and gas source or tank OFF when not flame in LOW position than seen on HIGH. Perform burner flame check on sideburner, also.

  • Page 9: Spider Alert

    CAUTION Cleaning the Burner Assembly Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting grill. 1. Turn gas off at control knobs and LP cylinder. SPIDER ALERT! 2. Remove cooking grates and flame tamers. 3.

  • Page 10: Limited Warranty

    LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of manufacture*.

  • Page 11: Parts List

    PARTS LIST Not Pictured: Key Qty Description BOTTOM SHELF CASTER, LOCKING Key Qty Description CASTER, FIXED … DOOR MAGNET ASSEMBLY CART LEFT SIDE PANE … WRENCH GROMMET … HARDWARE PACK CART RIGHT SIDE PANEL … ASSEMBLY MANUAL, ENGLISH LOWER BACK PANEL …...

  • Page 12: Parts Diagram

    PARTS DIAGRAM...

  • Page 13: Assembly

    ASSEMBLY Attach the two locking casters at the rear of the bottom shelf and the two fixed casters at the front. Use the provided caster wrench to fully tighten casters. Fixed caster Locking caster Bottom shelf Rear Attach side panels to bottom shelf using three 1/4-20x1/2”...
  • Page 14 Place lower back panel between side panels at rear of bottom shelf. Make sure the slots are positioned as shown (A). Secure lower back panel to side panels using four 1/4-20x1/2” screws, 7mm lock washers, and 7mm flat washers on each side. 1/4-20x1/2”...
  • Page 15 On back of grill, place upper back panel between side panels and above lower back panel. Secure upper back panel, in lower holes, using one 1/4-20x1½” screw, 7mm lock washer, and 7mm flat washer on each side. Do not fully tighten screws until side shelf installation is complete in later steps.

  • Page 16: Assembly

    Insert tabs on left sideburner shelf assembly into rectangular slots in side of firebox, shown A. Attach rear of shelf using one 1/4-20x3/4” screw, 7mm flat washer,7mm lock washer and 1/4”nut in upper hole; and using 1/4-20x1½” screw, 7mm lock washer, 7mm flat washer in lower hole, shown B/C. Attach front of shelf and fascia using two 1/4-20x3/4”...
  • Page 17 Insert front brace under control panel and between cart side panels. Make sure door hinge pins are on the top side and facing the front. Secure using two 1/4-20x1½” screws, 7mm lock washers, and 7mm flat washers on each side. NOTE: MAKE SURE THAT THE FRONT BRACE IS MOUNTED IN THE MOST DOWNWARD POSITION WHEN ASSEMBLED TO CART.
  • Page 18 Insert sideburner burner into left shelf. The stud on bottom of burner fits into rear small hole in sideburner drip pan on shelf, shown A. Secure burner to sideburner drip pan with one Wing nut, shown B. Under sideburner shelf, attach sideburner ignitor wire to electrode.
  • Page 19 Place sideburner grate onto sidebruner shelf. Then place sideburner griddle onto sidebruner shelf, aligning griddle legs with holes in shelf. Sideburner griddle Sideburner grate Inside of cart, insert rear heat shield tabs(without holes) into three slots between upper and lower back panels, shown A. Attach shield tabs under front brace with three #8x3/8”...
  • Page 20 Attach other end to bottom of Inside of cart, insert end of tank wire (without hole) into back of lower back panel. front brace with a #8x3/8” self-tapping screw. Front brace #8x3/8” self-tapping screw Tank wire end of tank wire Inside of cart, insert tank exclusion wire ends into lower back panel.
  • Page 21 Release the cap and nut from electronic ignition module. Attach electronic ignition module and heat shield to the cart right side panel with the nut, shown A. – ) end first. Then put on the cap, shown B. Insert AA battery into ignition module, negative ( Connect each of the wires from the main burner electrodes, and sideburner electrode into the back of the electronic ignition module.
  • Page 22 Install flame tamers by sliding one end of each flame tamer into slots at front of firebox and resting opposite end on pins in back of firebox. Flame tamer Slide into slots Place cooking grates onto the firebox as shown. Insert the two wire ends at rear of warming rack into holes in back of firebox.
  • Page 23 On back of grill, slide grease tray into opening in upper back panel. CAUTION Failure to install grease tray will cause hot grease to drip from bottom of grill with risk of fire or property damage. Grease tray LP CYLINDER IS SOLD SEPARATELY. Fill and leak check the cylinder before attaching to grill and regulator (see Use & Care section).

  • Page 24: Troubleshooting

    EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Emergencies Possible Cause Prevention/Solution Gas leaking from • Damaged hose. • Turn off gas at LP cylinder or at source on natural gas systems. If cracked/cut/burned anything but burned, replace valve/hose/regulator.

  • Page 25: Troubleshooting

    Troubleshooting (continued) Problem Possible Cause Prevention/Solution Burner(s) will not light ELECTRONIC IGNITION: using ignitor. • No spark, no ignition noise. • See Section I of Electronic Ignition System. (See Electronic Ignition Troubleshooting also) • No spark, some ignition noise. • See Section II of Electronic Ignition System. •...
  • Page 26 Troubleshooting - Electronic Ignition Problem (Ignition) Possible Cause Check Procedure Prevention/Solution SECTION I • Battery not installed • Check battery orientation. • Install battery (make sure that “+” and “–” No sparks appear at any electrodes when properly. connectors are oriented correctly, with “+” end up ignition button is and “–”...
