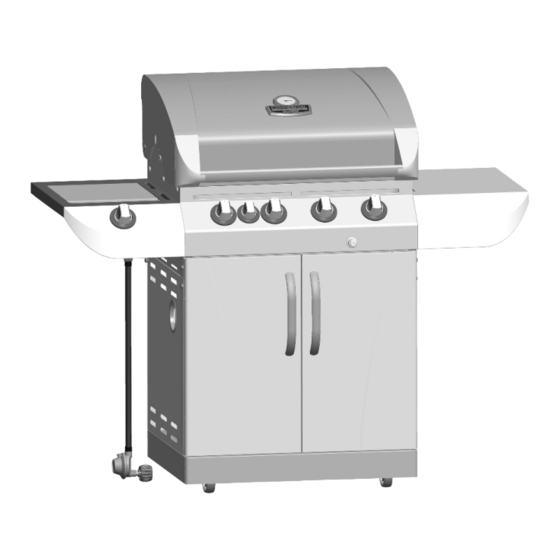

MODEL 463248108 • PRODUCT GUIDE
THIS GRILL IS FOR OUTDOOR USE ONLY.
CAUTION:
Read and follow all safety statements, assembly
instructions, and use and care directions before
attempting to assemble and cook.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
If you have questions or need assistance during assembly, please call
To insure your satisfaction and for follow-up service, register your grill online at www.grillregistration.com
WARNING:
Failure to follow all manufacturer's instructions could
result in serious personal injury and/or property
damage.
CAUTION:
Some parts may contain sharp edges – especially as
noted in the manual! Wear protective gloves if
necessary.
1-800-241-7548
.
463248108 • 80065476 • 03-27-08
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Char-Broil 463248108
Summary of Contents for Char-Broil 463248108
- Page 1 MODEL 463248108 • PRODUCT GUIDE THIS GRILL IS FOR OUTDOOR USE ONLY. CAUTION: WARNING: Read and follow all safety statements, assembly Failure to follow all manufacturer’s instructions could instructions, and use and care directions before result in serious personal injury and/or property attempting to assemble and cook.
- Page 2 CAUTION CAUTION CAUTION: Indicates a potentially hazardous situation or For residential use only. Do not use for commercial unsafe practice which, if not avoided, may result in minor cooking. or moderate injury. 2 • 463248108...
-
Page 3: Table Of Contents
Registration Card ........31 manufacturer. 463248108 • 3... - Page 4 Check the telephone Retainer Strap by the sun. directory under “Gas Companies” for nearest certified LP • Do not store an LP cylinder in an area where children play. dealers. 4 • 463248108...
-
Page 5: For Your Safety
Nipple has to be centered into the LP cylinder valve. WARNING If “growing” bubbles appear do not use or move the LP cylinder. Contact an LP gas supplier or your fire department! 463248108 • 5... -
Page 6: Grill Service Center
• If a leak is detected at any time, STOP and call the fire department. • If you cannot stop a gas leak, immediately close LPcylinder valve and call LP gas supplier or your fire department! 6 • 463248108... - Page 7 • Always close LP cylinder valve and remove burners closest to the IGNITION BURNER first. If ignition still does not occur, follow match-lighting coupling nut before moving LP cylinder from instructions. specified operation position. Lighting instructions continued on next page. 463248108 • 7...
- Page 8 .Be sure burner position. Valves should turn smoothly. lights and stays lit. Hose Check • Before each use, check to see if hoses are cut or worn. Replace damaged hoses before using grill. Use only valve/hose/regulator specified by manufacturer. 8 • 463248108...
-
Page 9: Spider Alert
If any large cracks or before use whenever the grill has been idle for an extended period. holes are found replace burner. 463248108 • 9... -
Page 10: Indirect Cooking
165° F, or until steaming hot. 1 Burner Cooking Cook with direct or indirect heat. Best for smaller meals or foods. Consumes less fuel. 2 Burner Cooking Great indirect cooking on low. Produces slow, even heating. Ideal for slow roasting and baking. 10 • 463248108... - Page 11 The methods below are suggestions for cleaning stainless steel surfaces. Choose a cleaning method appropriate for your needs. It is recommended that you use a Char-Broil® grill cover to help prolong the life and prevent discoloration of your grill.
- Page 12 These usually happen when spiders or other insects build nests inside burners. The burners have to be removed periodically and cleaned inside to remove the spider nests. To prevent grill fires and venturi fires, use the Char-Broil Premium Grill Tune-Up Kit. You can buy it online at www.charbroil.com www.grilllovers.com...
-
Page 13: Parts List
Key Qty Description Part # PARTS LIST – Model No. 463248108 Logo Plate ..... . 80005616 Key Qty Description Part # Temperature Gauge . -
Page 14: Parts Diagram
PARTS DIAGRAM – Model No. 463248108 14 • 463248108... -
Page 15: Assembly
ASSEMBLY – Model No. 463248108 Attach the two locking casters at the rear of the bottom shelf and the two fixed casters at the front. Use the provided caster wrench to fully tighten casters. Fixed caster Locking caster Bottom shelf Attach side panels to bottom shelf using three 1/4-20x1/2”... - Page 16 Make sure the regulator hose is hanging outside the cart. Grill head must face open side of cart. Grill head Regulator hose 16 • 463248108...
- Page 17 1/4-20x1½” screw, 7mm lock washer, and 7mm flat washer on each side. Do not fully tighten screws until side shelf installation is complete in later steps. 1/4-20x1½” 7mm lock 7mm flat screw washer washer Rear upper panel 463248108 • 17...
-
Page 18: Assembly
Now you may fully tighten lower screws on upper back panel. 7mm flat washer 1/4-20x3/4” 7mm lock screw washer 7mm lock washer 7mm flat Tabs washer Left sideburner shelf into 1/4-20x1½” screw holes 7mm flat 7mm lock washer washer Fascia, left sideburner shelf 1/4-20x3/4” screw 18 • 463248108... - Page 19 See illustration C for proper burner-to-valve engagement. Secure burner to bracket using two #10-24x3/8” screws, 5mm lock washers, and 5mm flat washers (B). 5mm flat washer 5mm lock washer Sideburner burner #10-24x3/8” screw 463248108 • 19...
- Page 20 Screw Tank heat shield 4mm Flat washer Front brace 4mm Lock washer #8-32 Hex nut Some components not shown for illustration purposes. Grease tray opening #8x3/8” self- tapping screw Left grease tray rail Right grease tray rail 20 • 463248108...
- Page 21 Install flame tamers by sliding one end of each flame tamer into slots at front of firebox and resting opposite end on pins in back of firebox. Flame tamer Front of firebox Lid removed for clarify Back of firebox 463248108 • 21...
- Page 22 Cylinder screw at rear of cart Regulator LP Cylinder (not included) Always keep LP cylinders in upright position during use, transport, and storage. 22 • 463248108...
- Page 23 Grease tray Unscrew electronic ignition button on front of control panel. Insert AA battery into ignitor, negative (—) end first. Replace button. AA Battery Electronic Ignition Button 463248108 • 23...
-
Page 24: Troubleshooting
• Wires are loose or disconnected. • Reconnect wires or replace electrode/wire assembly. • Wires are shorting (sparking) between • Replace ignitor wire/electrode assembly. ignitor and electrode. • Dead battery. • Replace with a new AA-size alkaline battery. 24 • 463248108... - Page 25 This page intentionally blank 463248108 • 25...
- Page 26 • The worn nozzles don’t have enough “bite” to engage the valve. Try cylinder. with worn threads. a second LP dealer. One burner does not • Grease buildup or food particles in • Clean carry-over tube(s) with wire brush. light from other end(s) of carryover tube(s). burner(s). 26 • 463248108...
- Page 27 This page intentionally blank 463248108 • 27...
-
Page 28: Troubleshooting
Bradley Company. Thermos® is a registered trademark of the Thermos Company and its affiliates. Artisan Collection by Char-Broil ™, C3 and Design™, Char-Broil and Design™, Flame Design™, FlavorTents™, Grill 2 Go™, Grillin’ Stick™, Keeper of the Flame™, Keepers of the Flame™, Natural Grip™, Outdoor Cooking Collection and Design™, Patio Bistro™, PrecisionFlame™, Pro-Check™, QuickSet Grills and Design™, SmokerTents™, The Big Easy™, The Minute Grill™, The Edge™, The Tuscan Collection™, and The Urban Grill™... -
Page 29: Limited Warranty
Consumer returns will not be accepted unless a valid Return Authorization is first acquired by calling 1-800-241--7548 and then clearly marked on the outside of the package and the package is shipped freight/postage pre-paid to the address above. 463248108 • 29... - Page 30 This page intentionally blank 30 • 463248108...
-
