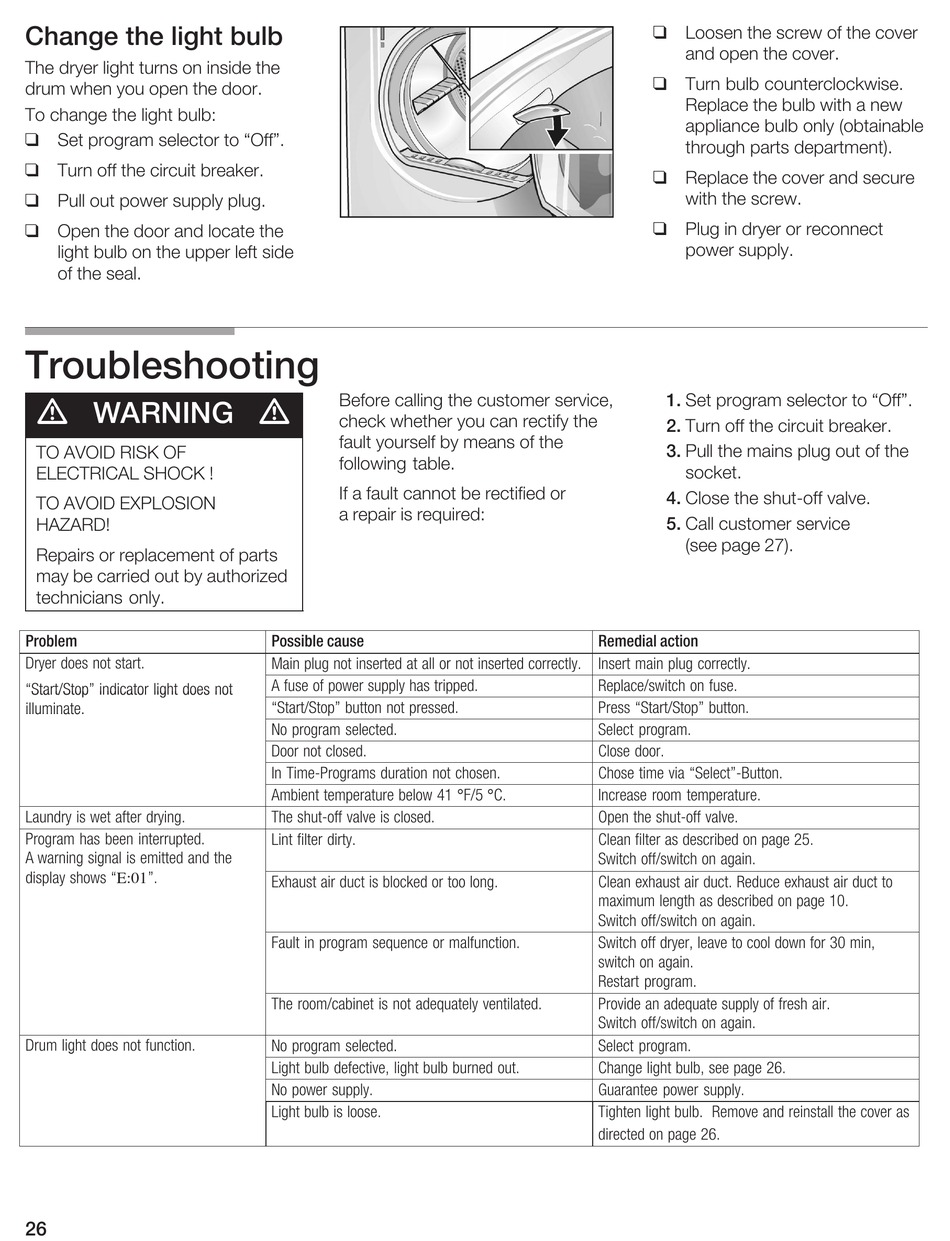

Change the light bulb

The dryer light turns on inside the
drum when you open the door.
To change the light bulb:
q Set program selector to Off".
q Turn off the circuit breaker.
q Pull out power supply plug.
q Open the door and locate the
light bulb on the upper left side
of the seal.

Troubleshooting

d
WARNING
TO AVOID RISK OF
ELECTRICAL SHOCK !
TO AVOID EXPLOSION
HAZARD!
Repairs or replacement of parts
may be carried out by authorized
technicians only.
Problem
Dryer does not start. y
Start/Stop" indicator light does not Start/Stop indicator light does not
illuminate. illuminate.
Laundry is wet after drying.
Program has been interrupted.
A warning signal is emitted and the g g
display shows E:01".
Drum light does not function. g
26
Before calling the customer service,
d
check whether you can rectify the
fault yourself by means of the
following table.
If a fault cannot be rectified or
a repair is required:
Possible cause
Main plug not inserted at all or not inserted correctly. Insert main plug correctly.
A fuse of power supply has tripped.
Start/Stop" button not pressed.
No program selected.
Door not closed.
In Time Programs duration not chosen.
Ambient temperature below 41 F/5 C.
The shut off valve is closed.
Lint filter dirty.
Exhaust air duct is blocked or too long.
Fault in program sequence or malfunction.
The room/cabinet is not adequately ventilated.
No program selected.
Light bulb defective, light bulb burned out.
No power supply.
Light bulb is loose.
q Loosen the screw of the cover
and open the cover.
q Turn bulb counterclockwise.
Replace the bulb with a new
appliance bulb only (obtainable
through parts department).
q Replace the cover and secure
with the screw.
q Plug in dryer or reconnect
power supply.
1. Set program selector to Off".
2. Turn off the circuit breaker.
3. Pull the mains plug out of the
socket.
4. Close the shut off valve.
5. Call customer service
(see page 27).
Remedial action
Replace/switch on fuse.
Press Start/Stop" button.
Select program.
Close door.
Chose time via Select" Button.
Increase room temperature.
Open the shut off valve.
Clean filter as described on page 25.
Switch off/switch on again.
Clean exhaust air duct. Reduce exhaust air duct to
maximum length as described on page 10.
Switch off/switch on again.
Switch off dryer, leave to cool down for 30 min,
switch on again.
Restart program.
Provide an adequate supply of fresh air.
Switch off/switch on again.
Select program.
Change light bulb, see page 26.
Guarantee power supply.
Tighten light bulb. Remove and reinstall the cover as
directed on page 26.
