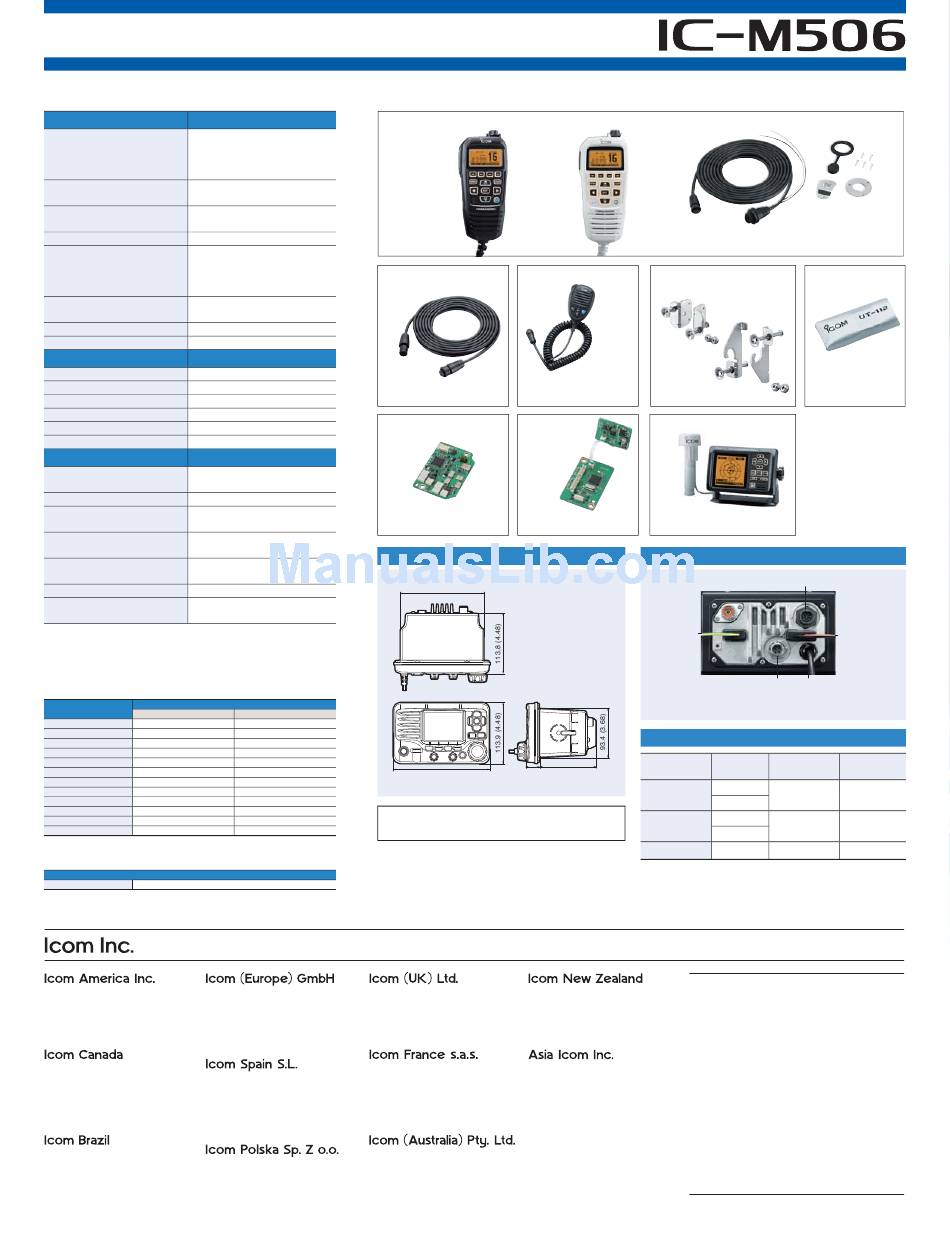

Specifications - Icom IC-M506 Specifications

VHF MARINE TRANSCEIVER

SPECIFICATIONS

GENERAL
Frequency range 156.025–157.425MHz
Tx
Rx
156.050–163.275MHz
CH70 156.525MHz
AIS1, 2 161.975, 162.025MHz
Usable channels USA, CAN, INT, WX
channels
Type of emission 16K0G3E (FM),
16K0G2B (DSC)
Power supply requirement 13.8V DC
Current drain (at 13.8V DC)
Tx 25W output 5.5A
Rx AF Max External SP 5.0A (RX hailer ON)
1.5A
Internal SP
Operating temperature range –20°C to +60°C;
–4°F to +140°F
Antenna impedance 50Ω (SO-239)
Weight 1400g; 3.09lb
(approx.)
TRANSMITTER
Output power 25W, 1W
(at 13.8V DC)
Max. frequency deviation ±5.0kHz
Frequency tolerance ±10ppm
Spurious emissions Less than –70dBc (at 25W)
Residual modulation More than 40dB
Adjacent channel power More than 70dB
RECEIVER
Intermediate frequency 1st 30.15MHz, 2nd 450kHz
CH70 1st 21.7MHz, 2nd 450kHz
0.22μV typical
Sensitivity
(at 12dB SINAD)
Adjacent channel More than 75dB
selectivity CH70 (1% BER) More than 73dBμ emf
Spurious response More than 75dB
CH70 (1% BER) More than 73dBμ emf
Intermodulation More than 75dB
CH70 (1% BER) More than 68dBμ emf
Hum and noise More than 40dB
Audio output power More than 15W with a 4Ω
(at 10% distortion) RX speaker
Measurements made in accordance with TIA/EIA 603 and IEC
62238. All stated specifications are subject to change without no-
tice or obligation.
Applicable U.S. Military Specifications
The IC-M506 and HM-205B/RM have been tested to and passed the following
MIL-STD requirements and strict environmental standards.
MIL 810 G
Standard
Method
Low Pressure 500.5
High Temperature 501.5
Low Temperature 502.5
Temperature Shock 503.5
Solar Radiation 505.5
Rain 506.5
Humidity 507.5
Salt Fog 509.5
Dust Blowing 510.5
Immersion 512.5
Vibration 514.6
Shock 516.6
Also meets equivalent MIL-STD-810-C, -D, -E and -G.
Applicable IP Rating
Ingress Protection Standard
Water IPX8 (1 m depth water for 60 minutes)
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries. COMMANDMIC, AQUAQUAKE, MarineCommander
and SUBMERSIBLE PLUS are trademarks of Icom Inc. (Japan) in the United States. NMEA 2000 is a trademark of the National Maritime Electronics Association, Inc. All other trademarks are the properties of their respective holders.
1-1-32, Kami-minami, Hirano-ku, Osaka 547-0003, Japan Phone: +81 (06) 6793 5302
12421 Willows Road NE, Communication Equipment
Kirkland, WA 98034, U.S.A. Auf der Krautweide 24
Phone : +1 (425) 454-8155 65812 Bad Soden am Taunus, Germany
Fax : +1 (425) 454-1509 Phone : +49 (6196) 76685-0
E-mail : sales@icomamerica.com Fax
URL : http://www.icomamerica.com E-mail : info@icomeurope.com
URL
Glenwood Centre #150-6165 Highway 17A,
Delta, B.C., V4K 5B8, Canada
Ctra. Rubi, No. 88 "Edificio Can Castanyer"
Phone : +1 ( 604 ) 952-4266
Bajos A 08174, Sant Cugat del Valles,
: +1 ( 604 ) 952-0090
Fax Barcelona, Spain
Phone : +34 ( 93 ) 590 26 70
E-mail : info@icomcanada.com
URL : http://www.icomcanada.com Fax
E-mail : icom@icomspain.com
URL
Rua Itororó, 444 Padre Eustáquio
Belo Horizonte MG, 80-286 Gdansk, Jaskowa Dolina St. 75, Poland
CEP: 30130-150, Brazil Phone : +48 ( 58 ) 551 0484
Phone : +55 (31) 3582 8847
Fax
Fax : +55 (31) 3582 8987
E-mail : icompolska@icompolska.com.pl
E-mail : sales@icombrazil.com
URL
OPTIONS
COMMANDMIC
(11.7–15.9V DC)
EXTENSION CABLE for
COMMANDMIC, HM-195B/SW
OPC-1541
6.1m (20ft) extension cable.
Up to two cables available.
AIS RECEIVER UNIT,
UX-231
UX-231
Already installed,
depending on version.
Procedure
I, II
I, II
I, II
I–C
I
I
II
–
I
I
Supplied accessories:
I
• Hand hanger • DC power cable • Mounting bracket kit
I, IV
Blacksole House, Altira Park,
Herne Bay, Kent, CT6 6GZ, U.K.
Phone : +44 (0) 1227 741741
Fax : +44 (0) 1227 741742
: +49 (6196) 76685-50 E-mail : info@icomuk.co.uk
URL : http://www.icomuk.co.uk
: http://www.icomeurope.com
Zac de la Plaine,
1 Rue Brindejonc des Moulinais, BP 45804,
31505 Toulouse Cedex 5, France
Phone : +33 (5) 61 36 03 03
Fax : +33 (5) 61 36 03 00
: +34 ( 93 ) 589 04 46
E-mail : icom@icom-france.com
URL : http://www.icom-france.com
: http://www.icomspain.com
Unit 1 / 103 Garden Road,
Clayton, VIC 3168 Australia
Phone : +61 (03) 9549 7500
: +48 ( 58 ) 551 4720 Fax : +61 (03) 9549 7505
E-mail : sales@icom.net.au
URL : http://www.icom.net.au
: http://www.icompolska.com.pl
Some options may not be available in some countries. Please ask your dealer for details.
™
HM-195B HM-195SW
(Black) (Super white)
SPEAKER-MICROPHONE
HM-205B/RB
HM-205RB is for rear
microphone version.
NMEA 2000
INTERFACE
UNIT, UX-232
UX-232
Already installed,
depending on version.
DIMENSIONS
157 (6.18)
Unit: mm (inch)
178.9 (7.04) 25(0.98) 104 (4.09)
www.icom.co.jp/world
Fax: +81 (06) 6793 0013
146A Harris Road, East Tamaki,
Auckland, New Zealand
Phone : +64 (09) 274 4062
Fax : +64 (09) 274 4708
E-mail : inquiries@icom.co.nz
URL : http://www.icom.co.nz
6F No. 68, Sec. 1 Cheng-Teh Road,
Taipei, Taiwan, R.O.C.
Phone : +886 (02) 2559 1899
Fax : +886 (02) 2559 1874
E-mail : sales@asia-icom.com
URL : http://www.asia-icom.com
Supplied accessories
• 6.1m (20ft) of cable • Microphone hanger
• Mounting base for connector
FLUSH MOUNT KITS VOICE SCRAMBLER
UNIT
MB-132
UT-112
Provides up to 32 codes
MB-75
for private conversation.
CLASS B AIS TRANSPONDER
MA-500TR
For transmitting own vessel AIS
information.
REAR PANEL VIEW
COMMANDMIC
NMEA 0183
IN/OUT
NMEA 2000 Rear microphone
(* Depending on version) (* Depending on version)
Showing IC-M506 AIS rear microphone version.
CONFIGURATION VARIATIONS
Microphone NMEA 2000
Front Mic
NMEA 2000/
IC-M506 AIS
NMEA 0183
Rear Mic
Front Mic
NMEA 2000/
IC-M506 PLUS
NMEA 0183
Rear Mic
IC-M506 Front Mic NMEA 0183*
1
* Optional UX-232 is required for NMEA 2000.
2
* Optional UX-231 is required for AIS receiver.
Count on us!
Your local distributor/dealer:
14HS0090 © 2014 Icom Inc.
DC power,
AF OUT leads
AIS Receiver
Integrated AIS
Receiver
2
Not included*
1 2
Not included*
