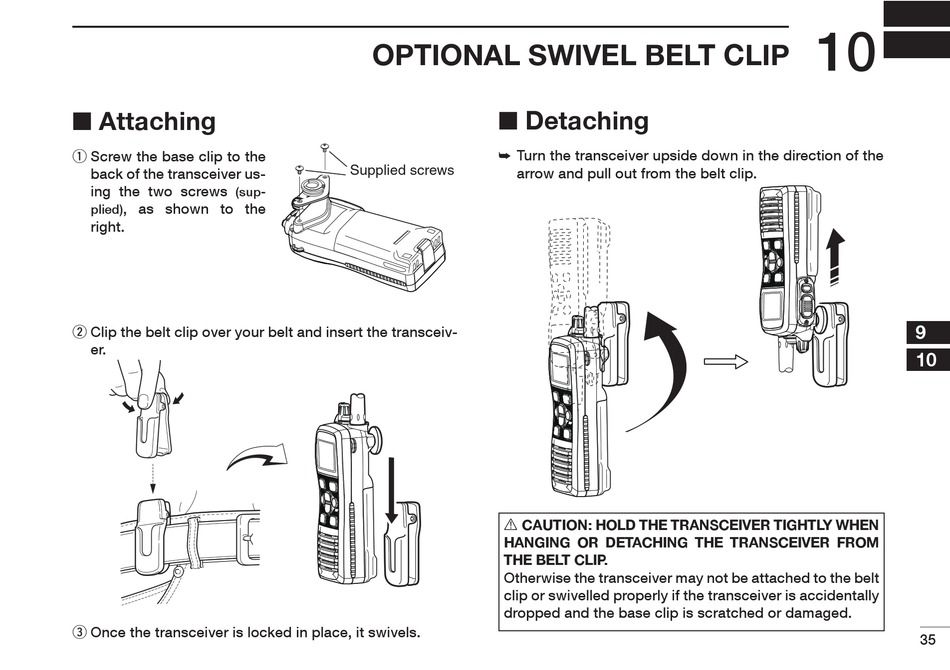

Optional Swivel Belt Clip; Attaching; Detaching - Icom IC-M73EURO Instruction Manual

■ Attaching

q Screw the base clip to the
back of the transceiver us-
ing the two screws
(sup-
, as shown to the
plied)
right.
w Clip the belt clip over your belt and insert the transceiv-
er.
e Once the transceiver is locked in place, it swivels.

OPTIONAL SWIVEL BELT CLIP

■ Detaching

Turn the transceiver upside down in the direction of the
➥
Supplied screws
arrow and pull out from the belt clip.
R CAUTION: HOLD THE TRANSCEIVER TIGHTLY WHEN
HANGING OR DETACHING THE TRANSCEIVER FROM
THE BELT CLIP.
Otherwise the transceiver may not be attached to the belt
clip or swivelled properly if the transceiver is accidentally
dropped and the base clip is scratched or damaged.
