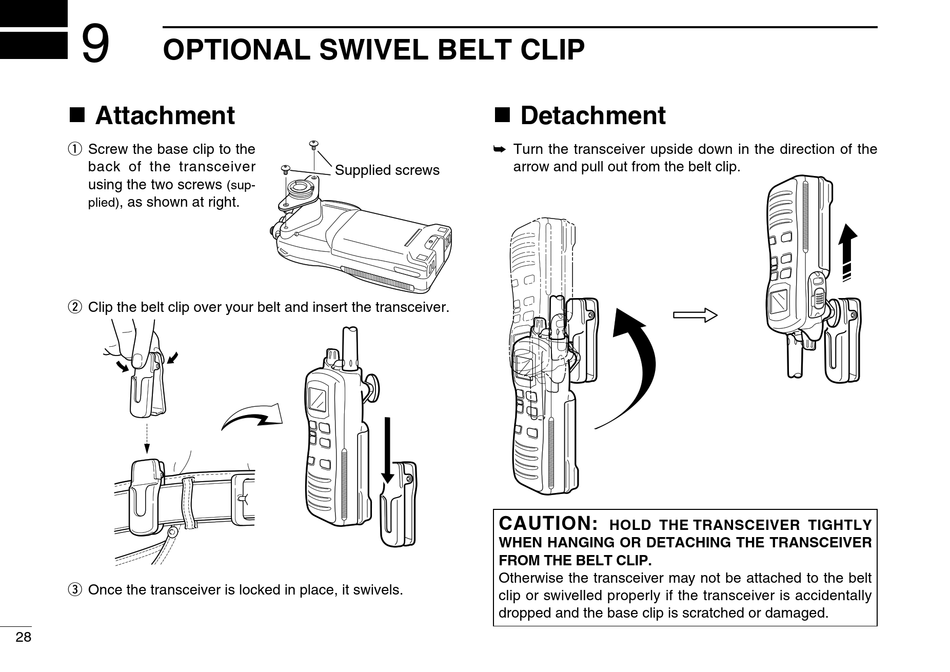

n Attachment

q Screw the base clp to the

back of the transcever

usng the two screws

, as shown at rght.

pled)

w Clp the belt clp over your belt and nsert the transcever.

e Once the transcever s locked n place, t swvels.

Supplied screws

(sup-

n Detachment

➥ Turn the transcever upsde down n the drecton of the

arrow and pull out from the belt clp.

CAUTION:

HOLD THE TRANSCEIVER TIGHTLY

WHEN HANGING OR DETACHING THE TRANSCEIVER

FROM THE BELT CLIP.

Otherwse the transcever may not be attached to the belt

clp or swvelled properly f the transcever s accdentally

dropped and the base clp s scratched or damaged.
