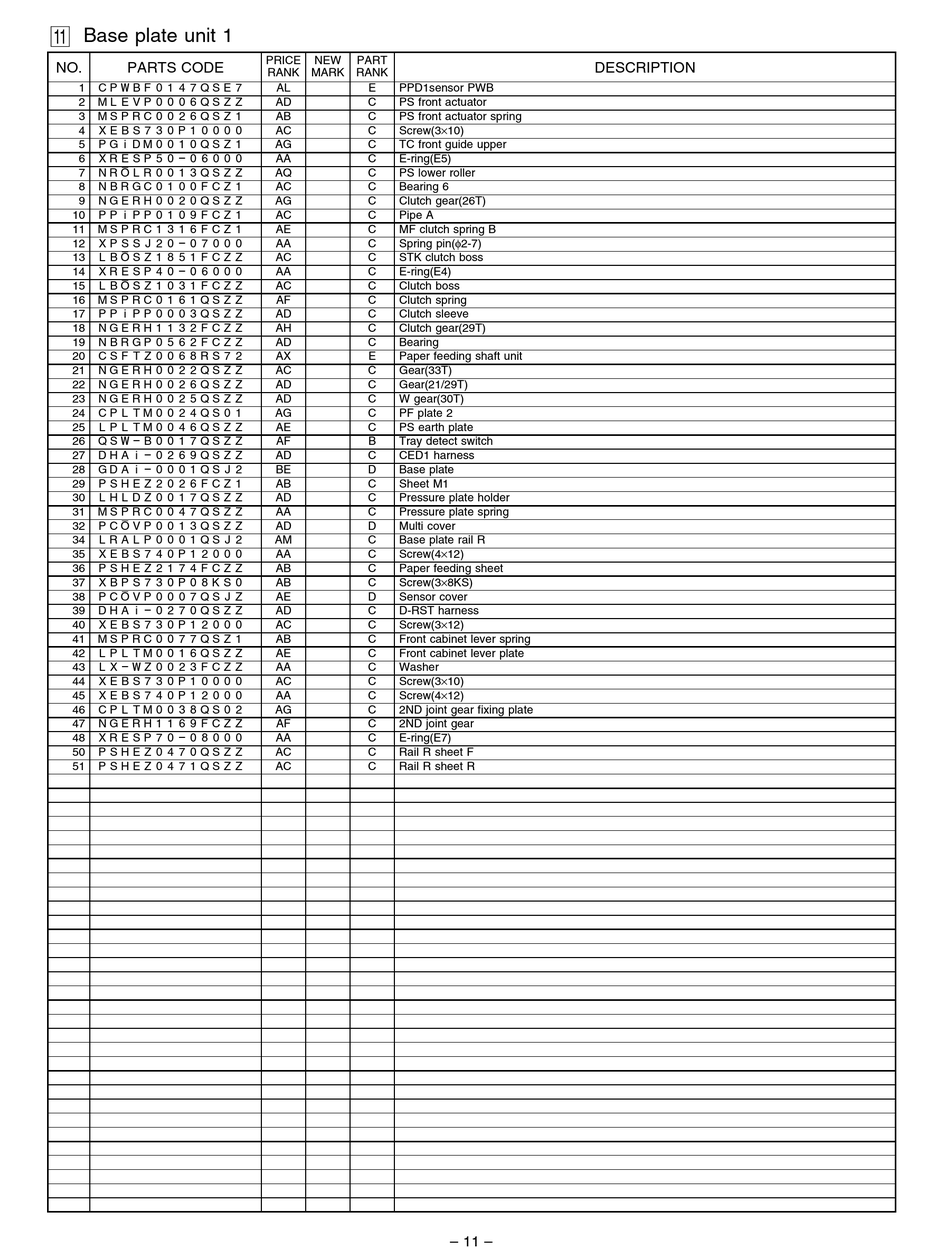

Base plate unit 1
NO. PARTS CODE
1 C P W B F 0 1 4 7 Q S E 7
2 M L E V P 0 0 0 6 Q S Z Z
3 M S P R C 0 0 2 6 Q S Z 1
4 X E B S 7 3 0 P 1 0 0 0 0
5 P G I D M 0 0 1 0 Q S Z 1
6 X R E S P 5 0 - 0 6 0 0 0
7 N R O L R 0 0 1 3 Q S Z Z
8 N B R G C 0 1 0 0 F C Z 1
N G E R H 0 0 2 0 Q S Z Z
9
10 P P I P P 0 1 0 9 F C Z 1
11 M S P R C 1 3 1 6 F C Z 1
12 X P S S J 2 0 - 0 7 0 0 0
13 L B O S Z 1 8 5 1 F C Z Z
14 X R E S P 4 0 - 0 6 0 0 0
15 L B O S Z 1 0 3 1 F C Z Z
16 M S P R C 0 1 6 1 Q S Z Z
17 P P I P P 0 0 0 3 Q S Z Z
18 N G E R H 1 1 3 2 F C Z Z
19 N B R G P 0 5 6 2 F C Z Z
20 C S F T Z 0 0 6 8 R S 7 2
21 N G E R H 0 0 2 2 Q S Z Z
22 N G E R H 0 0 2 6 Q S Z Z
23 N G E R H 0 0 2 5 Q S Z Z
24 C P L T M 0 0 2 4 Q S 0 1
25 L P L T M 0 0 4 6 Q S Z Z
26 Q S W - B 0 0 1 7 Q S Z Z
27 D H A I - 0 2 6 9 Q S Z Z
28 G D A I - 0 0 0 1 Q S J 2
29 P S H E Z 2 0 2 6 F C Z 1
30 L H L D Z 0 0 1 7 Q S Z Z
31 M S P R C 0 0 4 7 Q S Z Z
32 P C O V P 0 0 1 3 Q S Z Z
34 L R A L P 0 0 0 1 Q S J 2
35 X E B S 7 4 0 P 1 2 0 0 0
36 P S H E Z 2 1 7 4 F C Z Z
37 X B P S 7 3 0 P 0 8 K S 0
38 P C O V P 0 0 0 7 Q S J Z
39 D H A I - 0 2 7 0 Q S Z Z
40 X E B S 7 3 0 P 1 2 0 0 0
41 M S P R C 0 0 7 7 Q S Z 1
42 L P L T M 0 0 1 6 Q S Z Z
43 L X - W Z 0 0 2 3 F C Z Z
44 X E B S 7 3 0 P 1 0 0 0 0
45 X E B S 7 4 0 P 1 2 0 0 0
46 C P L T M 0 0 3 8 Q S 0 2
47 N G E R H 1 1 6 9 F C Z Z
48 X R E S P 7 0 - 0 8 0 0 0
50 P S H E Z 0 4 7 0 Q S Z Z
51 P S H E Z 0 4 7 1 Q S Z Z
PRICE NEW PART
RANK MARK RANK
AL E PPD1sensor PWB
AD C PS front actuator
AB C PS front actuator spring
AC C Screw(3×10)
AG C TC front guide upper
AA C E-ring(E5)
AQ C PS lower roller
AC C Bearing 6
AG C Clutch gear(26T)
AC C Pipe A
AE C MF clutch spring B
AA C Spring pin(φ2-7)
AC C STK clutch boss
AA C E-ring(E4)
AC C Clutch boss
AF C Clutch spring
AD C Clutch sleeve
AH C Clutch gear(29T)
AD C Bearing
AX E Paper feeding shaft unit
AC C Gear(33T)
AD C Gear(21/29T)
AD C W gear(30T)
AG C PF plate 2
AE C PS earth plate
AF B Tray detect switch
AD C CED1 harness
BE D Base plate
AB C Sheet M1
AD C Pressure plate holder
AA C Pressure plate spring
AD D Multi cover
AM C Base plate rail R
AA C Screw(4×12)
AB C Paper feeding sheet
AB C Screw(3×8KS)
AE D Sensor cover
AD C D-RST harness
AC C Screw(3×12)
AB C Front cabinet lever spring
AE C Front cabinet lever plate
AA C Washer
AC C Screw(3×10)
AA C Screw(4×12)
AG C 2ND joint gear fixing plate
AF C 2ND joint gear
AA C E-ring(E7)
AC C Rail R sheet F
AC C Rail R sheet R
DESCRIPTION
– 11 –
