iOptron SmartStarMiniTower II Instruction Manual page 9

#10
#9
Figure 8
Figure 9

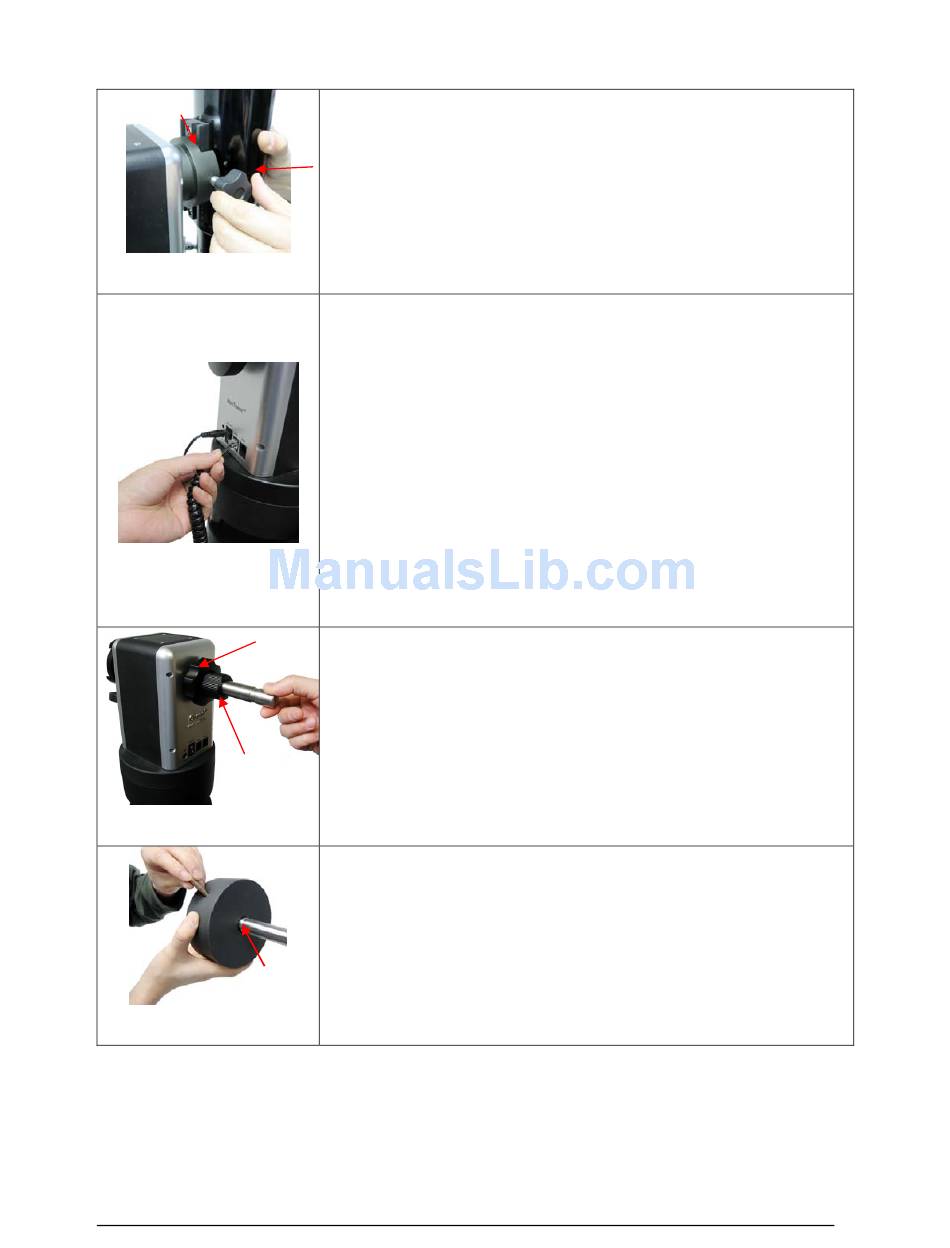

Step 7.
#12
This step allows you to attach the counterweight or a second
scope. (note: if you have a light scope less than 10 lbs. on the
primary side, then attaching a counterweight is optional).
First, make sure altitude lock (#12) is tightened. Loose the
#13
counterweight shaft lock #13. Tap the center of the primary
dovetail and pull the counterweight shaft (#17) out to a desired
length. Tightened the counterweight shaft lock #13 to secure it.
Figure 10
If you are attaching a second scope do not add the
counterweight. Instead, skip to Step 10 to add a second
scope.
Step 8.
Slide the counterweight onto the counterbalance shaft (#17).
groove
Insert the brass pin into the hole on the counterweight. Note:
when tightened this brass rod should fit into the groove on the
shaft.
Figure 11
iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569‐0200 | Toll Free (866) 399‐4587 | www.iOptron.com
Step 5.
Attach telescope to Primary Dovetail Saddle (#10) using
Primary Dovetail Lock (#9).
Step 6.
Plug one end of supplied 6P4C RJ-11 cable into either one of
the two HBX (Handbox) sockets on the mount; plug the other
end into the GoToNova 8401 hand controller. Plug in 12V
power cable.
Turn on power. Now you are ready to observe. Use the 4 arrow
keys (▲▼◄►) to rotate the scope Up, Down, Left, and Right.
Use the number key to change the slew speed from the
slowest (1:1X) to the fastest (9:MAX).
The other HBX is reserved for accessories, such as electronic
focuser, laser pointer and autoguider adapter. DO NOT plug
non-iOptron accessories into the unit to avoid damaging
the mount or accessories.
9
