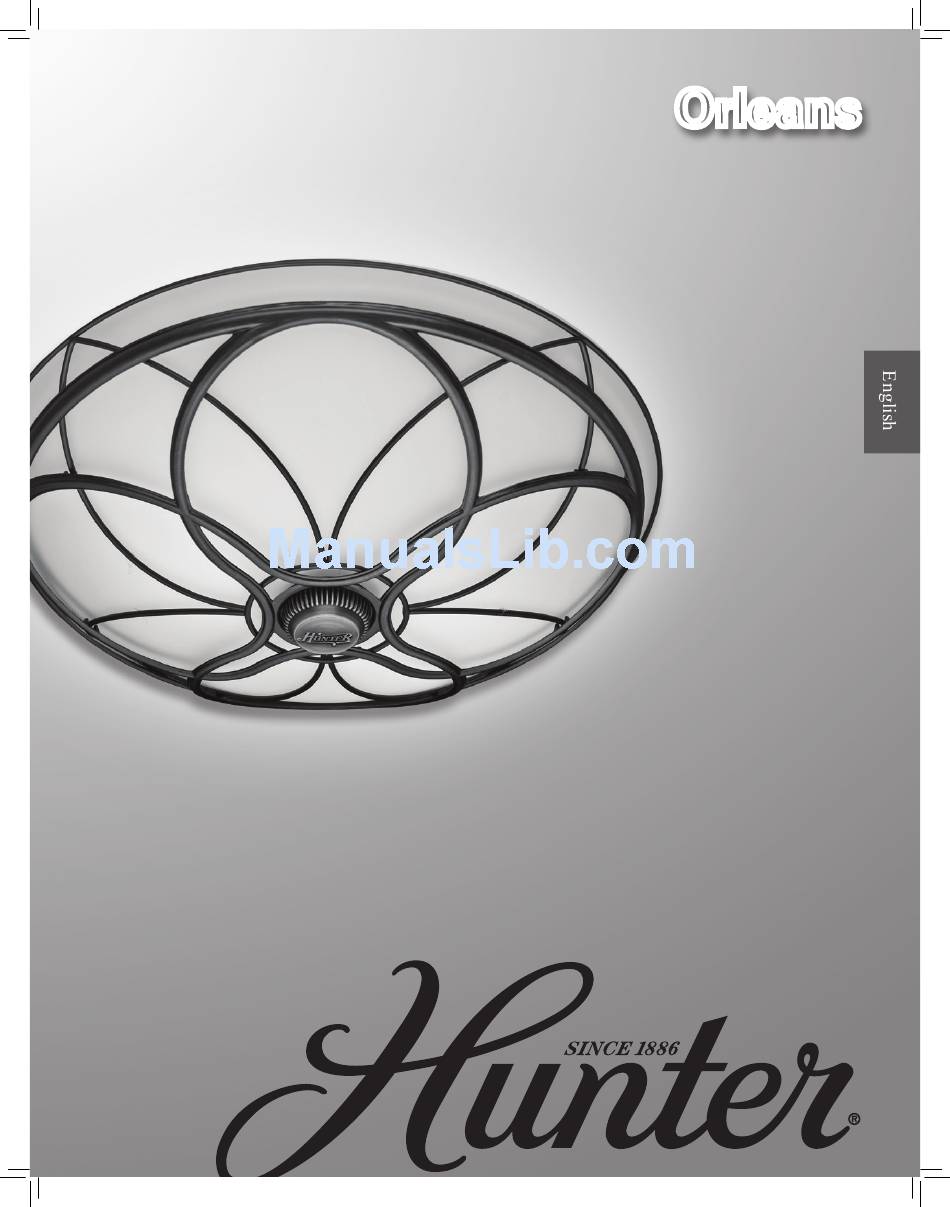

- Page 1 Orleans Bath Ventilator with Light Owner’s Manual Model 82704 42906-01 20100614 42906-01 06142010 ©2010 Hunter Fan Co.
-
Page 2: Cooking Area
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: American Society for Heating, Refrigeration and Air-Conditioning 1. Use this unit only in a manner intended by the manufacturer. If you have questions, contact the manufacturer. Engineers (ASHRAE), and the local code authorities. -
Page 3: Before Installation
Check all the parts. 95047-05-000 If damaged, call 1-888-830-1326 75864-01-000 for replacements. 03242-07-133 95261-01-000 74508-03-133 77522-01 65219 3/8” Cable Connector 96382-01-444 75184-01-133 Extra Screws NOTE: Strain relief cable 96456-01-444 connector must be installed. Not Included. 75730-01-444 Included. Tools Needed. (Not supplied.) Estimated assembly time: 30 to 60 minutes Before Installation NOTE: Remove all packing materials before installation. - Page 4 Remove the motor/blower from the housing. Remove packing material. Remove the pre-loaded screw tip covers. Back out the pre-loaded screw tips until flush with the side of the housing. Remove the wiring cover screw. Remove the wiring cover. 42906-01 06142010...
-
Page 5: New Construction
Pop out the first wiring access slug. Use second if needed. Insert the strain relief (not included) into the housing and secure with washer. Choose Installation Option For New Construction go to step A11, page 5 For Existing Construction go to step B11, page 8 New Construction Position the correct depth mark at the bottom edge of the Screw pre-loaded screws into joist or framing. - Page 6 Route wires through the strain relief. Ground Black Green 2 Pin Bare Copper White Black Main Switch 1 (AC In) Fan Motor White White 3 Pin Black Light Light *Option Black Switch 2 (AC In) *Option Fan & Main Light Together Connect wires as shown.
- Page 7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Connect wiring harness. DO NOT ALLOW THE MOTOR TO Reinstall the motor by inserting the tabs and pushing up into HANG FROM THE WIRING HARNESS. position.
-
Page 8: Existing Construction
Existing Construction EXISTING FAN Remove an existing fan and check to make sure the Move the housing into position above the ceiling. opening is large enough to accommodate the new motor housing (7 1/4”x 7 3/4”). Route wires through strain relief. Attach existing ducting to duct connector. - Page 9 Ground Black Green 2 Pin Bare Copper White Black Main Switch 1 (AC In) Fan Motor White White 3 Pin Black Light Light *Option Black Switch 2 (AC In) *Option Fan & Main Light Together Connect wires as shown. Install the wiring cover plate. Make sure all wiring Connect wiring harness.
- Page 10 O F F Turn on the power source. Test the motor. If the motor does not run, check the plug connection. Go to step on page 10 to attach grille. Attaching the Grille Remove the thumbscrews. Connect wiring harness. DO NOT ALLOW THE FIXTURE TO HANG FROM THE WIRING HARNESS.
- Page 11 Remove the strain relief bracket screw. Position the strain relief bracket under the motor as shown. Insert the strain relief bracket’s dog-leg tab so that Align posts 1, 2 and 3 (stamped into motor housing) it hooks over the lip of the motor. Reinstall the with posts 1, 2 and 3 (stamped into light fixture).
- Page 12 NOTE: Remove plastic packaging material from glass dome. Screw finial into position. Align glass dome and push up. 42906-01 06142010...
-
Page 13: Troubleshooting
Problem: Fan does not come on. Solution: • Hunter Fan Bath Ventilators are extremely quiet. To confirm that the fan is running, place your hand near the vents to feel the air movement. • Turn power on, replace fuse, or reset breaker. -
Page 14: Warranty
If your Hunter bath exhaust fan motor fails at any time within five years after the date of sale to you due to a defect in material or work- manship, labor and materials to repair the defect will be provided free of charge at our nearest service center or our Service Department in Memphis, Tennessee.
