Other Control

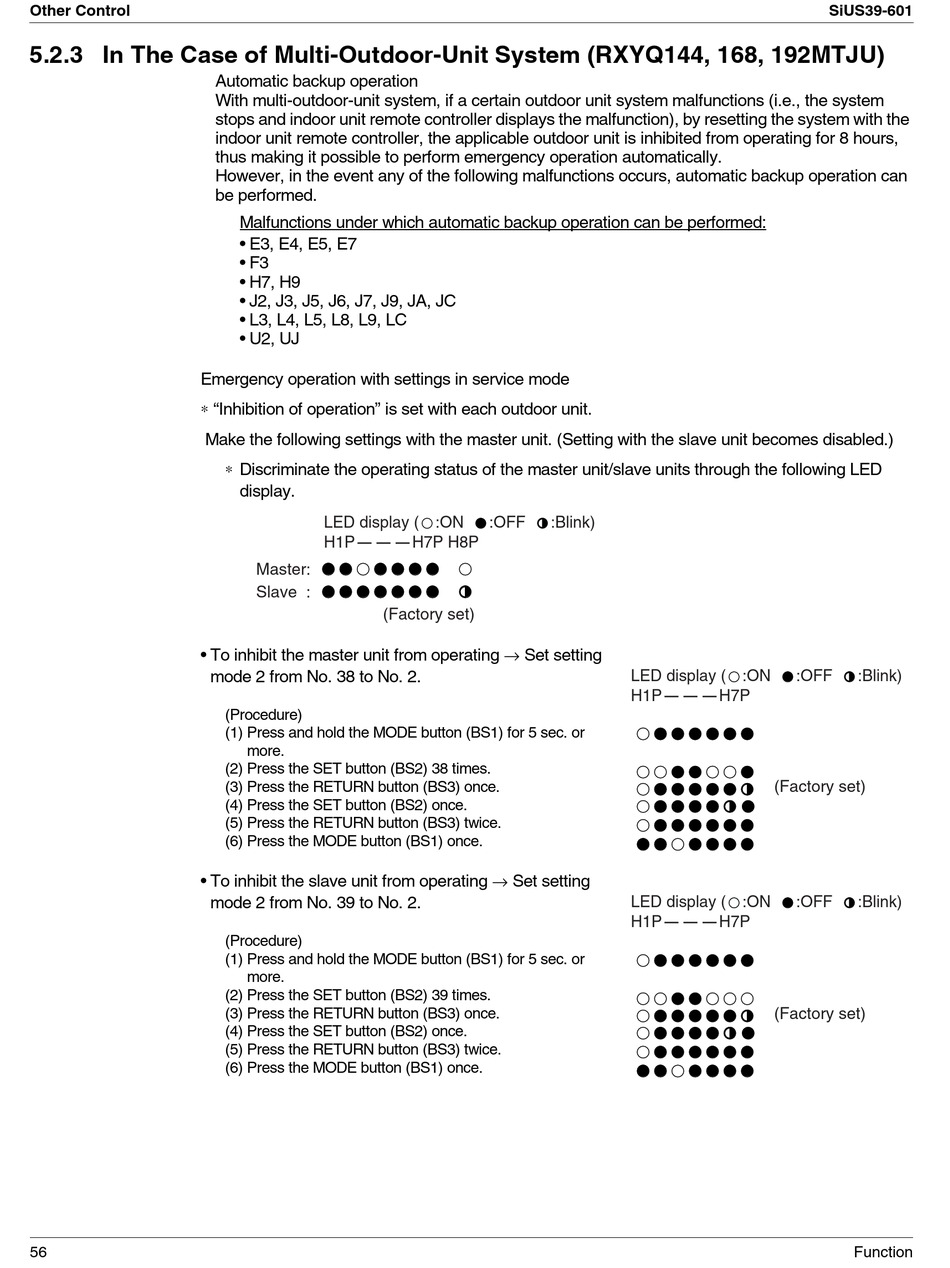

5.2.3 In The Case of Multi-Outdoor-Unit System (RXYQ144, 168, 192MTJU)
Emergency operation with settings in service mode
∗
Make the following settings with the master unit. (Setting with the slave unit becomes disabled.)
• To inhibit the master unit from operating
• To inhibit the slave unit from operating
56
Automatic backup operation
With multi-outdoor-unit system, if a certain outdoor unit system malfunctions (i.e., the system
stops and indoor unit remote controller displays the malfunction), by resetting the system with the
indoor unit remote controller, the applicable outdoor unit is inhibited from operating for 8 hours,
thus making it possible to perform emergency operation automatically.
However, in the event any of the following malfunctions occurs, automatic backup operation can
be performed.
Malfunctions under which automatic backup operation can be performed:
• E3, E4, E5, E7
• F3
• H7, H9
• J2, J3, J5, J6, J7, J9, JA, JC
• L3, L4, L5, L8, L9, LC
• U2, UJ
"Inhibition of operation" is set with each outdoor unit.
∗
Discriminate the operating status of the master unit/slave units through the following LED
display.
LED display (7:ON
H1P---H7P H8P
Master:
77 7777777 7777 7
Slave : 7777777 7777777 9 9
(Factory set)
mode 2 from No. 38 to No. 2.
(Procedure)
(1) Press and hold the MODE button (BS1) for 5 sec. or
more.
(2) Press the SET button (BS2) 38 times.
(3) Press the RETURN button (BS3) once.
(4) Press the SET button (BS2) once.
(5) Press the RETURN button (BS3) twice.
(6) Press the MODE button (BS1) once.
mode 2 from No. 39 to No. 2.
(Procedure)
(1) Press and hold the MODE button (BS1) for 5 sec. or
more.
(2) Press the SET button (BS2) 39 times.
(3) Press the RETURN button (BS3) once.
(4) Press the SET button (BS2) once.
(5) Press the RETURN button (BS3) twice.
(6) Press the MODE button (BS1) once.
:OFF :Blink)
7 7 9 9
→
Set setting
LED display (7:ON
H1P---H7P
7777777 777777
7777
777777 777779 9
77777 77779 9 7 7
7777777 777777
7777777 77
→
Set setting
LED display (7:ON
H1P---H7P
7777777 777777
7777
777777 777779 9
77777 77779 9 7 7
7777777 777777
7777777 77
SiUS39-601
:OFF
7 7 9 9
77777 7
(Factory set)
7777
:OFF
7 7 9 9
77777
(Factory set)
7777
:Blink)
:Blink)
Function
