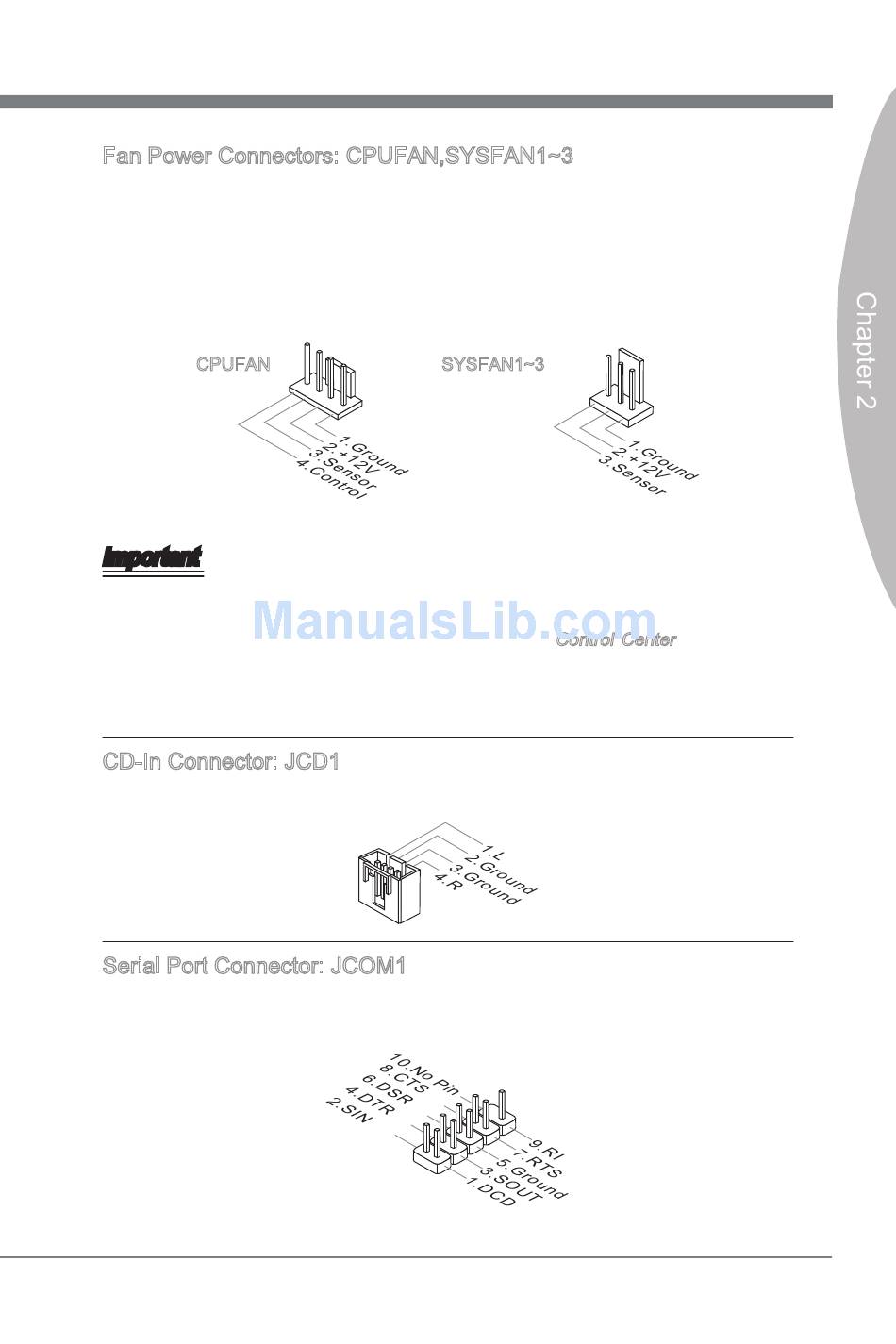

Fan Power Connectors: CPUFAN,SYSFAN1~3
The fan power connectors support system cooling fan with +12V. When connecting the
wire to the connectors, always note that the red wire is the positive and should be con-
nected to the +12V; the black wire is Ground and should be connected to GND. If the
mainboard has a System Hardware Monitor chipset on-board, you must use a specially
designed fan with speed sensor to take advantage of the CPU fan control.
CPUFAN
Important
Please refer to the recommended CPU fans at processor's official website or consult
•
the vendors for proper CPU cooling fan.
• CPUFAN support Smart fan control. You can install Control Center utility that will
automatically control the CPUFAN speeds according to the actual CPUFAN tem-
peratures.
CD-In Connector: JCD1
This connector is provided for external audio input.
Serial Port Connector: JCOM1
This connector is a 16550A high speed communication port that sends/receives 16
bytes FIFOs. You can attach a serial device.
