NOTICE: SAVE THESE INSTRUCTIONS
model(s):

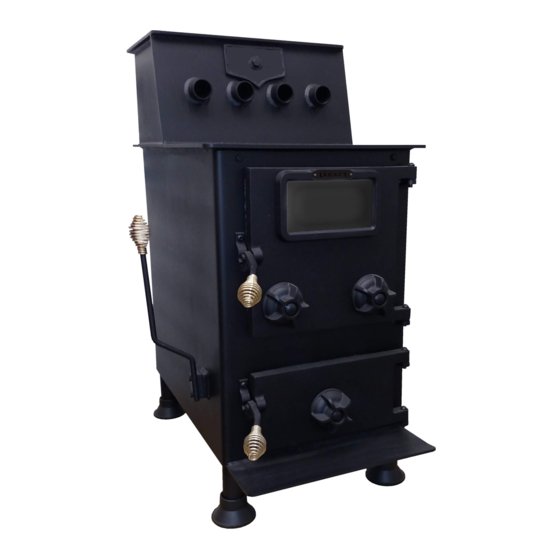

SF250 Coal Stove
PlEASE rEAd ThIS ENTIrE mANuAl bEFOrE YOu INSTAll ANd uSE YOur NEw rOOm hEATEr. FAIlurE TO
FOllOw INSTruCTIONS mAY rESulT IN PrOPErTY dAmAgE, bOdIlY INjurY, Or EvEN dEATh.
FOr uSE IN ThE u.S. ANd CANAdA. NOT SuITAblE FOr INSTAllATION IN mObIlE hOmES
IF ThIS hArmAN® STOvE IS NOT PrOPErlY INSTAllEd, A hOuSE FIrE mAY rESulT. FOr YOur SAFETY, FOllOw
INSTAllATION dIrECTIONS.
CONTACT lOCAl buIldINg Or FIrE OFFICIAlS AbOuT rESTrICTIONS ANd INSTAllATION INSPECTION
rEQuIrEmENTS IN YOur ArEA.
CONTACT YOur lOCAl AuThOrITY (SuCh AS muNICIPAl buIldINg dEPArTmENT, FIrE dEPArTmENT, FIrE
PrEvENTION burEAu, ETC.) TO dETErmINE ThE NEEd FOr A PErmIT.
CETTE guIdE d'uTIlISATION EST dISPONIblE EN FrANCAIS. ChEz vOTrE CONCESSIONNAIrE dE hArmAN®.
Installation & Operating manual
SAFETY NOTICE
SAvE ThESE INSTruCTIONS.
!
hOT SurFACES!
Glass and other surfaces are hot during
operation and cool down.
hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
stove.
• Alert children and adults to hazards of high temperatures.
high temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
WARNING
3-90-70738R9_08/13
Advertisement
Table of Contents
Related Manuals for Harman SF250 Coal Stove
Summary of Contents for Harman SF250 Coal Stove
- Page 1 FOllOw INSTruCTIONS mAY rESulT IN PrOPErTY dAmAgE, bOdIlY INjurY, Or EvEN dEATh. FOr uSE IN ThE u.S. ANd CANAdA. NOT SuITAblE FOr INSTAllATION IN mObIlE hOmES IF ThIS hArmAN® STOvE IS NOT PrOPErlY INSTAllEd, A hOuSE FIrE mAY rESulT. FOr YOur SAFETY, FOllOw INSTAllATION dIrECTIONS.
-
Page 2: Table Of Contents
TAblE OF CONTENTS Safety Considerations ... . . 3 Specifications ....4 Assembly ..... . . 5 Installation . -
Page 3: Safety Considerations
• All Surfaces of stove are hot. Do not touch. be alarmed, this is normal and does not cause harm. • Keep children away. mobile homes • Serious burns will result if touched. This Harman® Stove is not approved for installation in Fuel/Firing warnings mobile/manufactured homes. danger SPECIAL WARNING: NEVER OPERATE YOUR STOVE WITH THE FIRE OR ASH DOOR OPEN! Do not use chemicals or fluids to start or “freshen up”... -
Page 4: Specifications
SPECIFICATIONS 35 3/4 20 1/2 3-90-70738R9_08/13... -
Page 5: Assembly
ASSEmblY blower The blower slides into the channel bracket on the rear of the stove as shown at right. Plug the blower into a properly grounded receptacle. Shaker handle The shaker handle installs onto the shaker handle mount using the two hex-bolts and washers provided. Firebricks The SF250 uses 14 “standard” firebricks, as shown below. These standard firebricks measure 9” X 4½” X 1¼” each. The firebricks are already installed in the stove but can be removed to lighten the stove for moving. The doors can also be removed by simply lifting them off of the hinges. -
Page 6: Installation
INSTAllATION wArNINg: This stove must be installed in accordance with Adjustable Leveling Feet all state and local building code requirements. To accomodate an un-even hearth surface, the SF250 is equipped with adjustable leveling feet. Each foot can be Locating the stove turned in or out of the leg to lower or raise that corner of Locate the stove as close to the chimney or flue as possible, the stove. -
Page 7: Chimney & Venting
ChImNEY & vENTINg Types Of Chimneys More than 10 Ft. (3 m) The chimney is one of the most important, yet most neglected and misunderstood portions of any solid fuel burning stove installation. Do not connect this stove to a 10 Ft. - Page 8 ChImNEY & vENTINg Possible causes of insufficient draft; The most common cause of poor draft is an improperly sized flue liner. It is recommended that the inside dimensions of A. Chimney Leaks - Air leaking in around a loose fitting the liner be at least as large as the appliance flue outlet cleanout door, flue pipe joints and/or seams not secured, and no larger than 125% of the collar for a round flue. An improper plug openings or defective masonry.
-
Page 9: Operating Instructions
OPErATINg INSTruCTIONS The SF250 is approved for use with coal only. Burning Increasing heat From A low Fire wood or other such fuels in this stove, except for the Every effort should be made not to let a coal fire burn so purpose of igniting a coal fire, is prohibited. -
Page 10: Maintenance
mAINTENANCE Spiral Chamber Cleanout SHAKER hANdlE (external) SHAKER grATES GRATE LINK Close-up view of grate system components Periodic and Normal Everyday Maintenance Blower Motor- Clean periodically to remove pet hair and lint from the intake and fan. Cleanout Plate Removed Grates- Keep ash pan empty. CAUTION: BEFORE CLEANING THE CHIMNEY AND SMOKE PIPE, BE SURE THE FIRE IS OUT AND THE STOVE IS COOL. -
Page 11: Optional Bent Hot Water Coil
OPTIONAl bENT hOT wATEr COIl Optional bent hot water Coil - Part #3-10-49202 Use a hole saw and the template supplied with the coil to Washer make two holes through the side wall of the stove. Keep the coil holes above the firebrick and away from the loading Outside Nut Outside Nut door. Place one of the supplied nuts on each leg of the coil. Place the coil through the holes in the stove, and adjust the nuts so that the pipes stick out about 1¼” to 1½” from the sidewall of the stove. Put flat washers and nuts on the Stove Side... - Page 12 wATEr COIl OPTION Example 2: Circulating pump method. Used when the distance is more than ten feet or when the stove is on a higher level than the existing water heater. In addition to a circulator, you may want to add a aquastat to control the pump according to water temperature. This is not necessary if the circulator is left run continuously. Another option is a gate valve placed near the circulator to control the rate of flow. 1. Turn off the water heater and the water supply to it. Drain the tank completely. 2. Remove the Temp/Pressure relief valve and discard. Install a short ¾” nipple and tee (1) along with a new Temp/Pressure relief valve. 3. Remove the drain valve, at the bottom of the storage tank. Install a ¾” nipple and tee, and reinstall the drain valve to the tee (4). 4. Install a circulating pump (6) as shown. Run ¾” copper tubing from the circulator to the lower leg of the coil. This is where the optional gate valve (5) can be installed. 5. Install a ¾” tee and a 150 lb. pressure relief valve (7) in the top leg within 2 feet of the top outlet of the water coil. 6. Complete the copper line by running it back to the tee at the top of the water tank, making sure to install a vent elbow and automatic air vent (2) at the high point of the line. The optional aquastat can be installed in this line a maximum of six feet from the stove. The aquastat must be a “close on temperature rise” type and must be wired and set to turn on the circulator when the water temperature reaches 120˚ Farenheit. The system is now ready to be refilled and power restored to the water heater ONLY after the tank is filled. EXAmPlE 2: Circulator method. (more than 10 feet.) 3-90-70738R9_08/13...
-
Page 13: Testing Label
TESTINg lAbEl * This appliance is also approved for installation into a shop 3-90-70738R9_08/13... -
Page 14: Warranty
hearth & home Technologies lImITEd lIFETImE wArrANTY Hearth & Home Technologies, on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. wArrANTY COvErAgE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered compo- nents manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its obligations under such warranties by replacing the product itself or refunding the verified purchase price of the product itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty is subject to conditions, exclusions and limitations as described below. wArrANTY PErIOd: Warranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent, authorized HHT dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from HHT, regardless of the installation or occupancy date. The warranty period for parts and labor for covered components is produced in the following table. The term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for gas appliances, and 10 years from the beginning date of warranty coverage for wood, pellet, and coal appliances. These time periods reflect the minimum expected useful lives of the designated components under normal operating conditions. Warranty Period HHT Manufactured Appliances and Venting Components Covered Parts Labor Wood Pellet Coal Electric Venting Wood All parts and material except as covered by Conditions, 1 Year... -
Page 15: Warranty
wArrANTY CONdITIONS: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. • This warranty is only valid in the country in which the HHT authorized dealer or distributor that sold the appliance resides. • Contact your installing dealer for warranty service. If the installing dealer is unable to provide necessary parts, contact the nearest HHT authorized dealer or supplier. Additional service fees may apply if you are seeking warranty service from a dealer other than the dealer from whom you originally purchased the product. • Check with your dealer in advance for any costs to you when arranging a warranty call. Travel and shipping charges for parts are not covered by this warranty. wArrANTY EXCluSIONS: This warranty does not cover the following: • Changes in surface finishes as a result of normal use. As a heating appliance, some changes in color of interior and exterior surface finishes may occur. This is not a flaw and is not covered under warranty. • Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse, scratches, melted items, or other external sources and residues left on the plated surfaces from the use of abrasive cleaners or polishes. • Repair or replacement of parts that are subject to normal wear and tear during the warranty period. These parts include: paint, wood, pellet and coal gaskets, firebricks, grates, flame guides, batteries and the discoloration of glass. • Minor expansion, contraction, or movement of certain parts causing noise. These conditions are normal and com- plaints related to this noise are not covered by this warranty. • Damages resulting from: (1) failure to install, operate, or maintain the appliance in accordance with the installation instructions, operating instructions, and listing agent identification label furnished with the appliance; (2) failure to install the appliance in accordance with local building codes; (3) shipping or improper handling; (4) improper opera- tion, abuse, misuse, continued operation with damaged, corroded or failed components, accident, or improperly/ incorrectly performed repairs; (5) environmental conditions, inadequate ventilation, negative pressure, or drafting caused by tightly sealed constructions, insufficient make-up air supply, or handling devices such as exhaust fans or forced air furnaces or other such causes; (6) use of fuels other than those specified in the operating instructions; (7) installation or use of components not supplied with the appliance or any other components not expressly authorized and approved by HHT; (8) modification of the appliance not expressly authorized and approved by HHT in writing;... -
Page 16: Service & Maintenance Log
Service & Maintenance Log Date Of Service Performed By Description Of Service 3-90-70738R9_08/13... - Page 17 NOTES 3-90-70738R9_08/13...
-
Page 18: Signature Page
At Harman®, we build each product to a standard, not a price. (Signature of Boxer) Your premium quality hearth product designed and assembled by the experienced and skilled members at Harman® in Halifax, PA, USA. Proudly Printed On 100% Recycled Paper...
