Before Using This System
Before Using This System

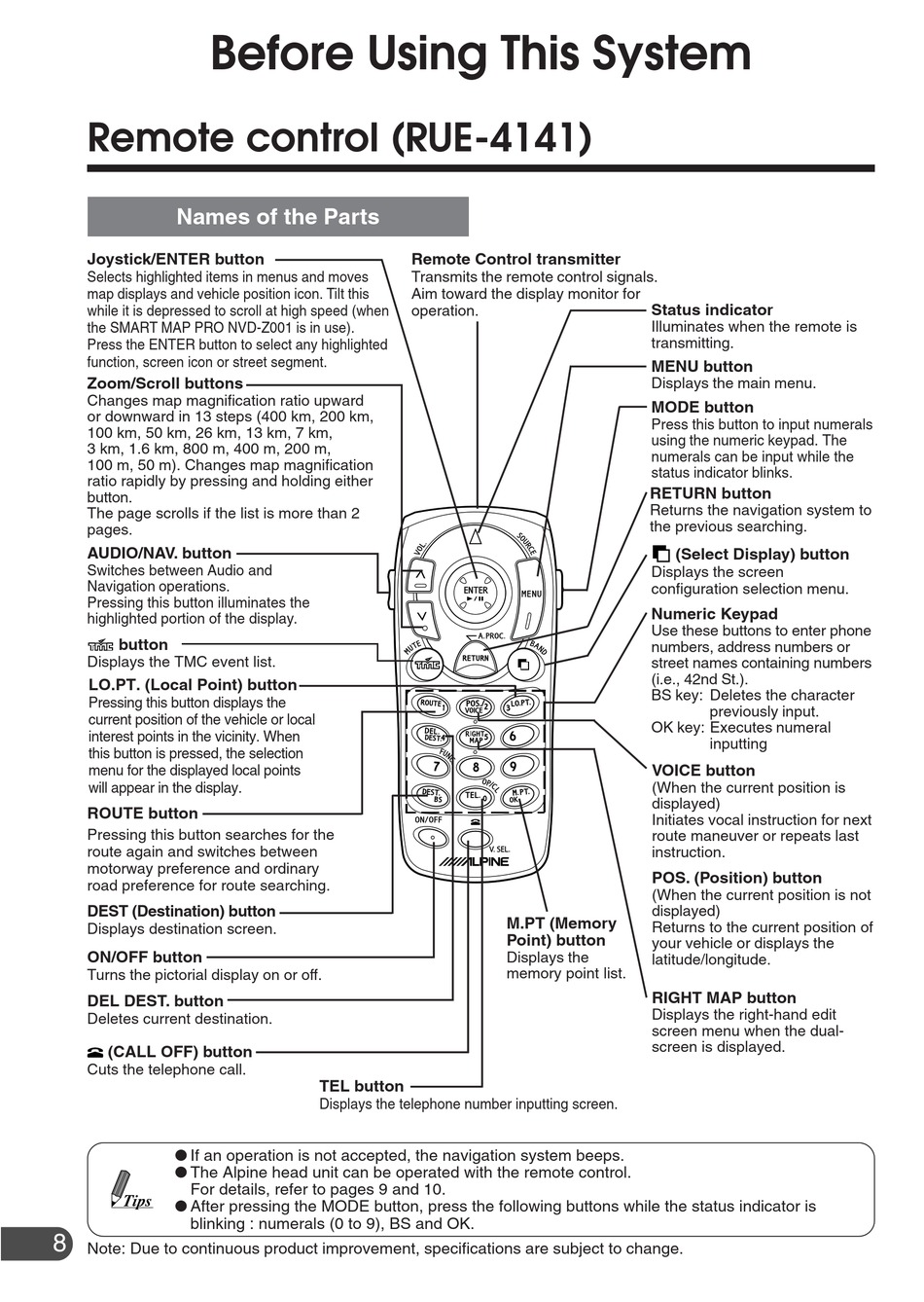

Remote control (RUE-4141)

Names of the Parts
Joystick/ENTER button
Selects highlighted items in menus and moves
map displays and vehicle position icon. Tilt this
while it is depressed to scroll at high speed (when
the SMART MAP PRO NVD-Z001 is in use).
Press the ENTER button to select any highlighted
function, screen icon or street segment.
Zoom/Scroll buttons
Changes map magnification ratio upward
or downward in 13 steps (400 km, 200 km,
100 km, 50 km, 26 km, 13 km, 7 km,
3 km, 1.6 km, 800 m, 400 m, 200 m,
100 m, 50 m). Changes map magnification
ratio rapidly by pressing and holding either
button.
The page scrolls if the list is more than 2
pages.
AUDIO/NAV. button
Switches between Audio and
Navigation operations.
Pressing this button illuminates the
highlighted portion of the display.
button
Displays the TMC event list.
LO.PT. (Local Point) button
Pressing this button displays the
current position of the vehicle or local
interest points in the vicinity. When
this button is pressed, the selection
menu for the displayed local points
will appear in the display.
ROUTE button
Pressing this button searches for the
route again and switches between
motorway preference and ordinary
road preference for route searching.
DEST (Destination) button
Displays destination screen.
ON/OFF button
Turns the pictorial display on or off.
DEL DEST. button
Deletes current destination.
(CALL OFF) button
Cuts the telephone call.
a
If an operation is not accepted, the navigation system beeps.
a
The Alpine head unit can be operated with the remote control.
For details, refer to pages 9 and 10.
Tips
a
After pressing the MODE button, press the following buttons while the status indicator is
blinking : numerals (0 to 9), BS and OK.
8
Note: Due to continuous product improvement, specifications are subject to change.
Remote Control transmitter
Transmits the remote control signals.
Aim toward the display monitor for
operation.
TEL button
Displays the telephone number inputting screen.
Status indicator
Illuminates when the remote is
transmitting.
MENU button
Displays the main menu.
MODE button
Press this button to input numerals
using the numeric keypad. The
numerals can be input while the
status indicator blinks.
RETURN button
Returns the navigation system to
the previous searching.
(Select Display) button
Displays the screen
configuration selection menu.
Numeric Keypad
Use these buttons to enter phone
numbers, address numbers or
street names containing numbers
(i.e., 42nd St.).
BS key: Deletes the character
OK key: Executes numeral
VOICE button
(When the current position is
displayed)
Initiates vocal instruction for next
route maneuver or repeats last
instruction.
POS. (Position) button
(When the current position is not
displayed)
M.PT (Memory
Returns to the current position of
Point) button
your vehicle or displays the
Displays the
latitude/longitude.
memory point list.
RIGHT MAP button
Displays the right-hand edit
screen menu when the dual-
screen is displayed.
previously input.
inputting
