NewAir AH-600 Owner's Manual

Baseboard heater
Hide thumbs Also See for AH-600:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
lease read and save these instructions.

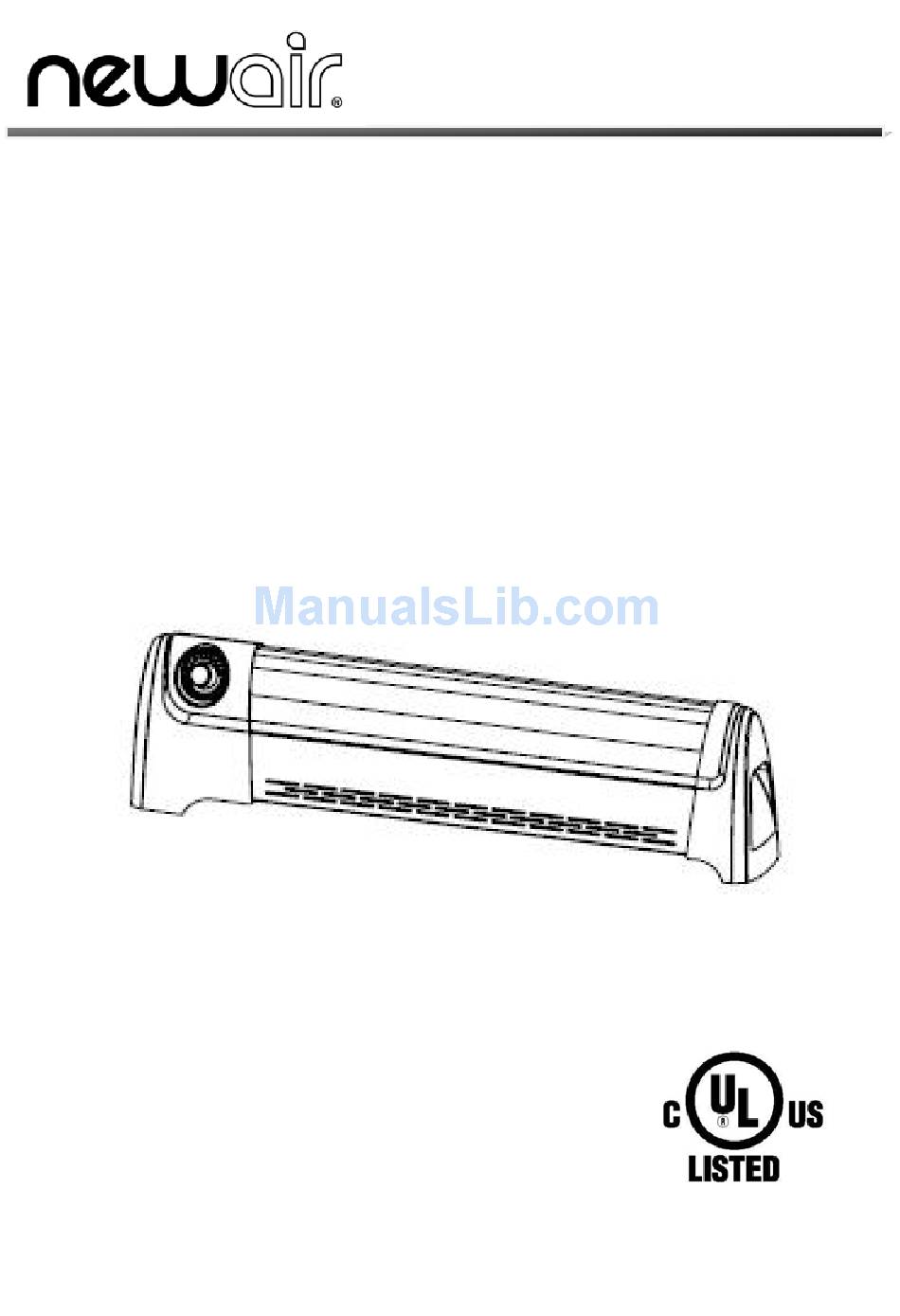

AH-600
Baseboard Heater
Owner's Manual
1

Advertisement

Table of Contents
loading

Related Manuals for NewAir AH-600

Summary of Contents for NewAir AH-600

  • Page 1 AH-600 Baseboard Heater Owner’s Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions ................3 Parts of the Heater ....................5 Operating Instructions ..................6 Safety Features ...................... 7 Cleaning and Maintenance .................. 7 Storage ........................7 Specifications ......................7 Troubleshooting ....................8 Warranty ........................ 9...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE, ELECTRICAL SHOCK AND INJURY TO PERSONS OR PROPERTY, INCLUDING THE FOLLOWING: When switching on the appliance for the first time, allow it to run at full power for about two hours to get rid of the unpleasant smell.

  • Page 4: Save These Instructions

    14. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, injury to persons or other damage to property. 15. To prevent overload and blown fuses, be sure that no other appliance is plugged into the same outlet or into another outlet wired into the same circuit.

  • Page 5: Parts Of The Heater

    GETTING TO KNOW YOUR HEATER Features: A. Low Heat Setting LED E. Timer Increase Button B. Temperature LED F. Power Button C. Timer LED G. Timer Decrease Button D. High Heat Setting LED H. Mode Rotary Knob LOW mode HIGH mode NOTE: There may be a trace of smoke or odor when unit is first operated.

  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS Be sure to plug into a 120 V AC, 60 Hz outlet. 1. Turning unit ON/OFF Press the button once and rotate the mode knob once: the heater will be on at the low output setting and the “LOW” indicator will light. At this setting, the heater output is 750 W.

  • Page 7: Safety Features

    WARNING: Any other servicing needed must be performed by an authorized service representative. Do not attempt to service the unit yourself. Product Specifications Model No.: AH-600 Voltage: 120V, 60Hz Current: Maximum continuous draw: 12.5 amps Output: 5120 BTU Power: 1500 Watts...

  • Page 8: Troubleshooting

    TROUBLESHOOTING If your heater fails to operate, please follow these procedures: Problem Probable Cause Solution Overheat protection has Turn the heater OFF; unplug it and temporarily deactivated the ALLOW IT TO COOL. Inspect and heater. remove any objects on or adjacent to the heater.

  • Page 9: Warranty

    When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for the warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer’s...
