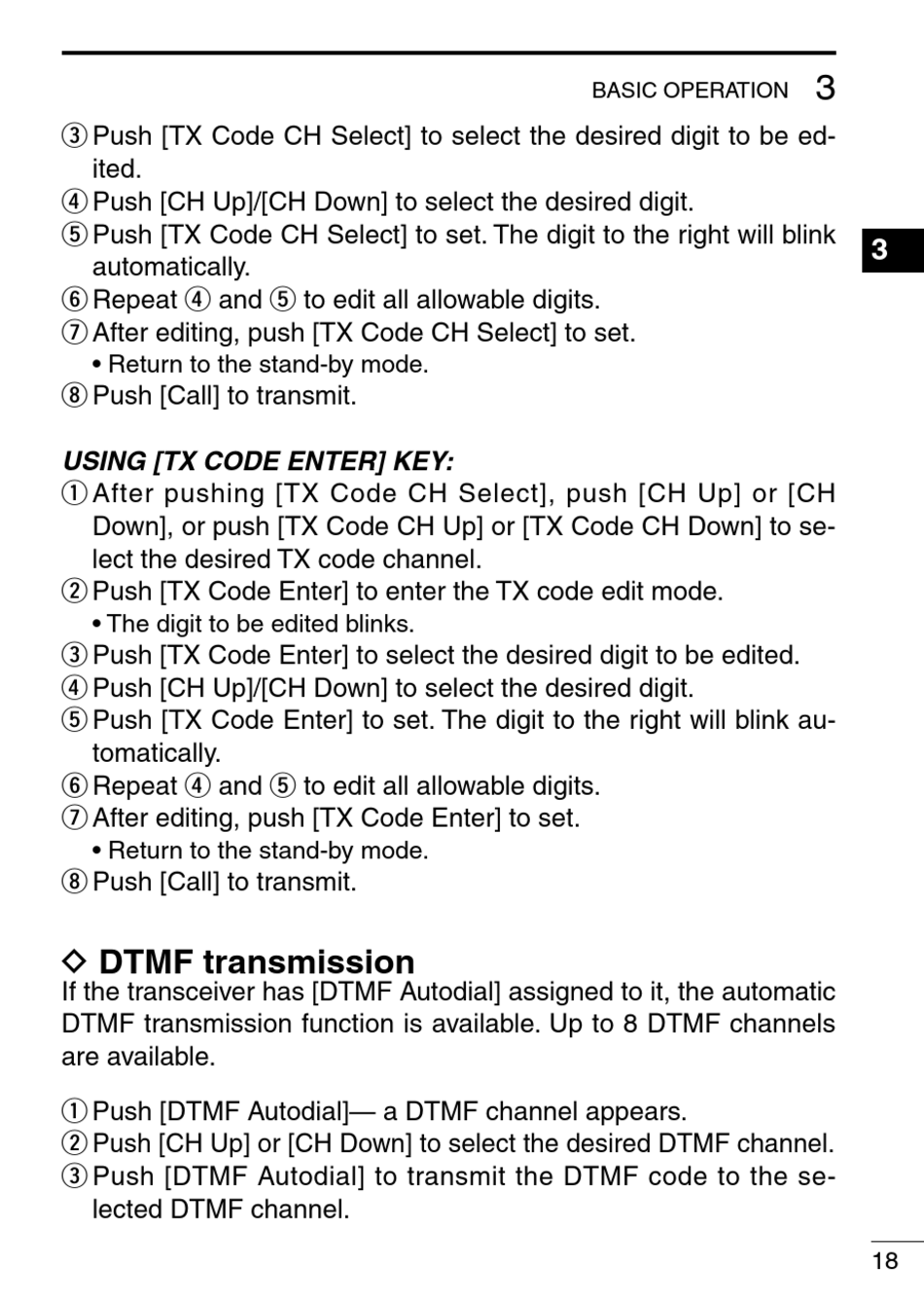

e Push [TX Code CH Select] to select the desired digit to be ed-
ited.
r Push [CH Up]/[CH Down] to select the desired digit.
t Push [TX Code CH Select] to set. The digit to the right will blink
automatically.
y Repeat r and t to edit all allowable digits.
u After editing, push [TX Code CH Select] to set.
• Return to the stand-by mode.
i Push [Call] to transmit.
USING [TX CODE ENTER] KEY:
q After pushing [TX Code CH Select], push [CH Up] or [CH
Down], or push [TX Code CH Up] or [TX Code CH Down] to se-
lect the desired TX code channel.
w Push [TX Code Enter] to enter the TX code edit mode.
• The digit to be edited blinks.
e Push [TX Code Enter] to select the desired digit to be edited.
r Push [CH Up]/[CH Down] to select the desired digit.
t Push [TX Code Enter] to set. The digit to the right will blink au-
tomatically.
y Repeat r and t to edit all allowable digits.
u After editing, push [TX Code Enter] to set.
• Return to the stand-by mode.
i Push [Call] to transmit.

D DTMF transmission

If the transceiver has [DTMF Autodial] assigned to it, the automatic
DTMF transmission function is available. Up to 8 DTMF channels
are available.
q Push [DTMF Autodial]— a DTMF channel appears.
w Push [CH Up] or [CH Down] to select the desired DTMF channel.
e Push [DTMF Autodial] to transmit the DTMF code to the se-
lected DTMF channel.
