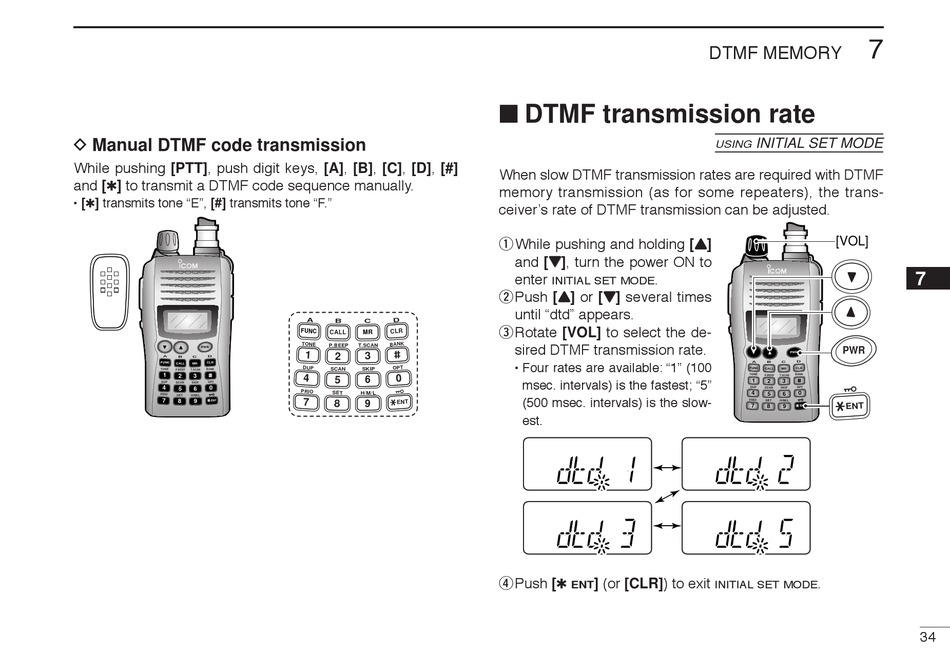

D Manual DTMF code transmission
While pushing [PTT], push digit keys, [A], [B], [C], [D], [#]
and [✱] to transmit a DTMF code sequence manually.
• [✱] transmits tone "E", [#] transmits tone "F."
PWR
A
B
C
D
FUNC
CLR
CALL
MR
BANK
TONE
P.BEEP
T.SCAN
1
2
3
DUP
OPT
SCAN
SKIP
4
0
5
6
PRIO
SET
H/M/L
7
8
9
ENT
■ DTMF transmission rate
When slow DTMF transmission rates are required with DTMF
memory transmission (as for some repeaters), the trans-
ceiver's rate of DTMF transmission can be adjusted.
qWhile pushing and holding [Y Y ]
and [Z Z ], turn the power ON to
enter
.
INITIAL SET MODE
wPush [Y Y ] or [Z Z ] several times
until "dtd" appears.
eRotate [VOL] to select the de-
sired DTMF transmission rate.
• Four rates are available: "1" (100
msec. intervals) is the fastest; "5"
(500 msec. intervals) is the slow-
est.
rPush [✱
] (or [CLR]) to exit
ENT
7
DTMF MEMORY
INITIAL SET MODE
USING
[VOL]
PWR
PWR
A
B
C
D
FUNC
CLR
CALL
MR
TONE
P.BEEP
T.SCAN
BANK
1
2
3
DUP
SCAN
SKIP
OPT
4
0
5
6
PRIO
SET
H/M/L
7
8
9
ENT
.
INITIAL SET MODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
34
