Heath Zenith SL-4305 Operation Manual

motion sensing
Porch Light
SL-4305
Features
• Light comes on when motion is detected.
• Automatically turns light off.
• Photocell keeps the light off during daylight
hours.
This package includes:
• Porch Light
• Easy to use Universal Mounting Bracket
• Mounting Hardware
• Wire Nuts
• Lens Shield
requirements
• The light control requires 120 volts AC.
• If you want to use Manual Mode, the control must
be wired through a switch.
• some electrical codes require installation by
a qualified electrician.
Before installation, record the model number
listed inside the fixture. attach receipt in case
of possible warranty issues.
model number:
© 2007 HeathCo LLC

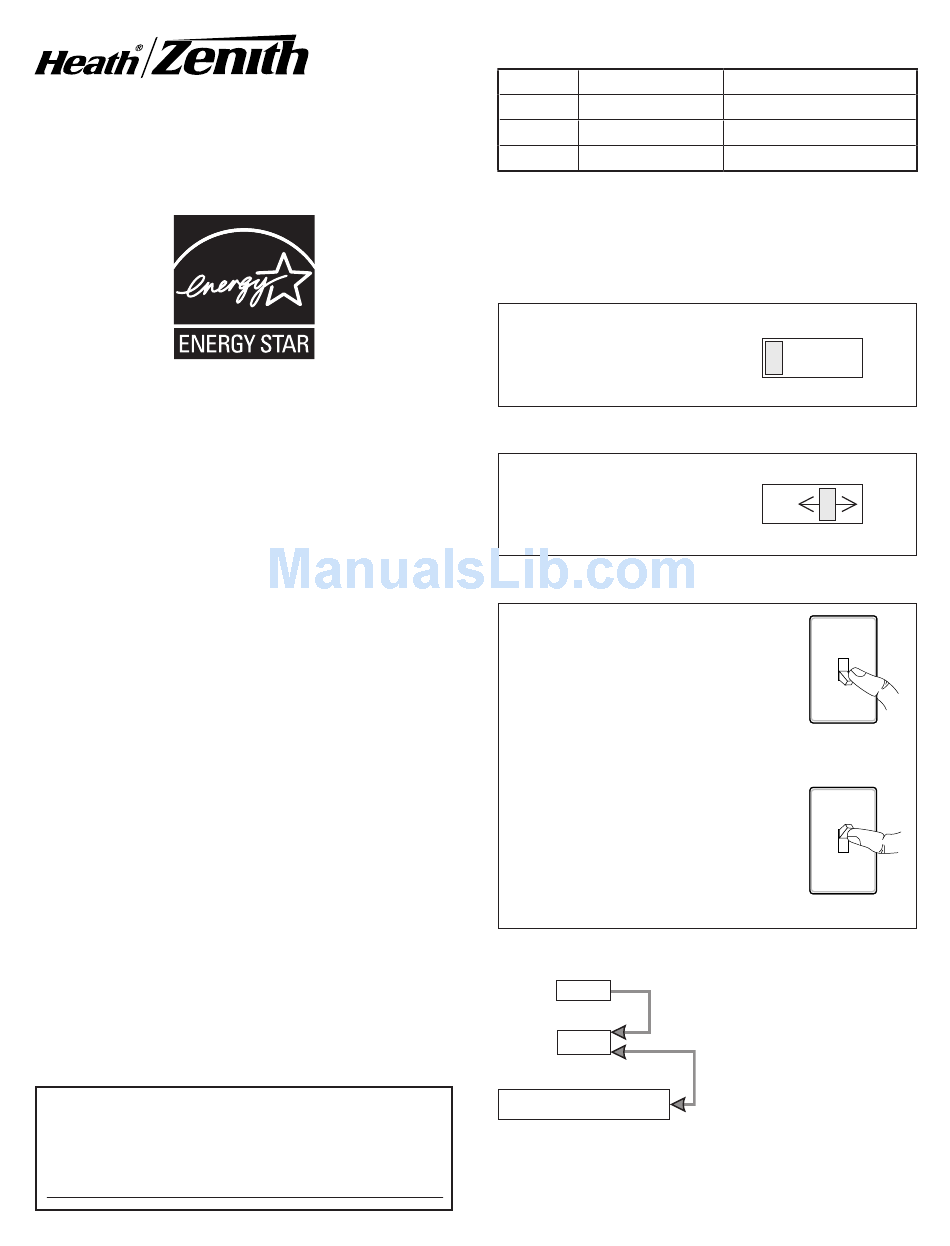

OPeratiOn
Mode: On-Time
test 5 Seconds
auto
1, 5, or 10 Min
manual To Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
for the circuitry to calibrate.
test
Set the ON-TIME switch
on the sensor to TEST.
autO
Set ON-TIME switch to
1, 5, or 10 minutes.
manuaL mOde
Manual mode only works at night
because daylight returns the sen-
sor to AUTO.
Flip the light switch off for one
second then back on to toggle
between AUTO and MANUAL
MODE.
Manual mode works only with
the ON-TIME switch in the 1, 5,
or 10 position.
mOde switching summary
TEST
ON-TIME Switch at 1, 5, or
10 minutes
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.
Works: Day Night
x x
x
x
/ minutes
1
2
ON-TIME
test 1 5 10 MIN
ON-TIME
TEST 1 5 10 min
1 Second OFF
then...
... back on.
Flip light switch off
for one second then
back on*
