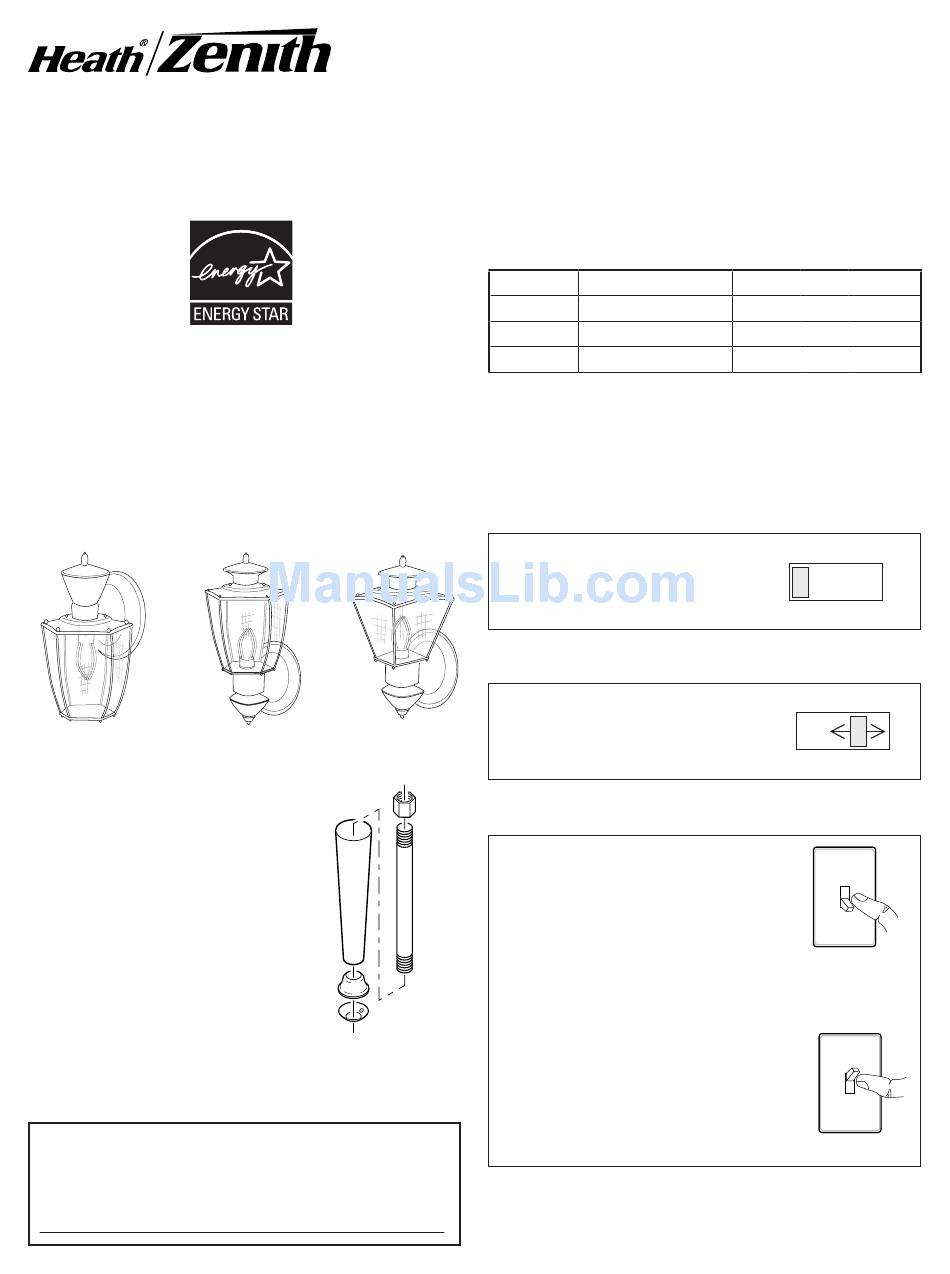

Heath Zenith 4162 Installation Manual

Motion Sensing Coach
Lights
Features
• Light comes on when motion is detected.
• Automatically turns light off.
• Photocell keeps the light off during daylight
hours.
This package includes:
Carriage Light or Lantern or Coach Light
Mounting screws
and wire connectors
* Model 4162 includes
additional top assembly parts.
Before installation, record the model number
from back of fixture below. Attach receipt in
case of possible warranty issues.
© 2007 HeathCo LLC
Tail Assembly
(Lantern & Coach)*
Requirements
• The light control requires 120 volts AC.
• If you want to use Manual Mode, the control
must be wired through a switch.
• Some electrical codes require installa-
tion by a qualified electrician.
OPERATION
Mode: On-Time
Test
5 Seconds
Auto
1, 5, or 10 Min
Manual
To Dawn*
* resets to Auto Mode at dawn.
NOTE: When first turned on wait about 1
minutes for the circuitry to calibrate.
Set the ON-TIME switch
on the bottom of the cover
plate to TEST.
Set ON-TIME switch to
1, 5, or 10 minutes.
MANUAL MODE
Manual mode only works at
night because daylight returns
the sensor to AUTO.
Flip the light switch off for one
second then back on to toggle
between AUTO and MANUAL
MODE.
Manual mode works only with
the ON-TIME switch in the 1,
5, or 10 position.
Works: Day Night
x
TEST
ON-TIME
TEST 1 5 10 MIN
AUTO
ON-TIME
TEST 1 5 10 MIN
1 Second
OFF then...
... back on.
595-5530-13
