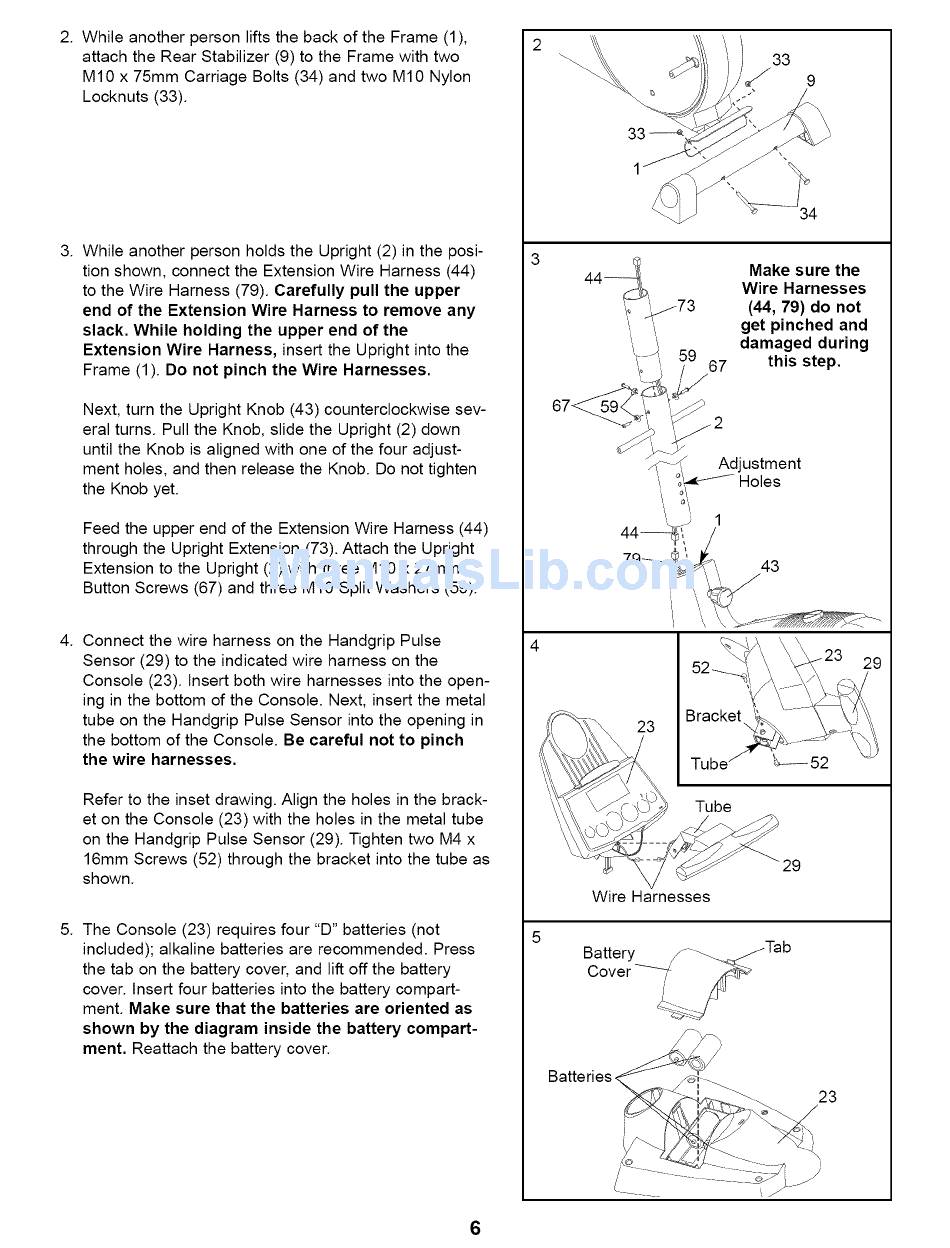

2. Whileanother p erson liftsthebackofthe Frame (1),
attachtheRearStabilizer ( 9)totheFrame withtwo
M10x 75mmCarriage Bolts(34)andtwoM1O Nylon
Locknuts ( 33).
3. Whileanother person holdstheUpright ( 2) inthe posi-
tionshown, c onnect t he Extension W ireHarness (44)
to theWireHarness (79).Carefullypull the upper
end of the Extension Wire Harness to remove any
slack. While holding the upper end of the
Extension Wire Harness, insert the Upright into the
Frame (1). Do not pinch the Wire Harnesses.
Next, turn the Upright Knob (43) counterclockwise sev-
eral turns. Pull the Knob, slide the Upright (2) down
until the Knob is aligned with one of the four adjust-
ment holes, and then release the Knob. Do not tighten
the Knob yet.
Feed the upper end of the Extension Wire Harness (44)
through the Upright Extension (73). Attach the Upright
Extension to the Upright (2) with three M10 x 27mm
Button Screws (67) and three M10 Split Washers (59).
4. Connect the wire harness on the Handgrip Pulse
Sensor (29) to the indicated wire harness on the
Console (23). Insert both wire harnesses into the open-
ing in the bottom of the Console. Next, insert the metal
tube on the Handgrip Pulse Sensor into the opening in
the bottom of the Console. Be careful not to pinch
the wire harnesses.
Refer to the inset drawing. Align the holes in the brack-
et on the Console (23) with the holes in the metal tube
on the Handgrip Pulse Sensor (29). Tighten two M4 x
16mm Screws (52) through the bracket into the tube as
shown.
5. The Console (23) requires four "D" batteries (not
included); alkaline batteries are recommended. Press
the tab on the battery cover, and lift off the battery
cover. Insert four batteries into the battery compart-
ment. Make sure that the batteries are oriented as
shown by the diagram inside the battery compart-
ment. Reattach the battery cover.
