HP ProLiant BL460c Specification

Server blade
Hide thumbs Also See for ProLiant BL460c:

Advertisement

Quick Links

Download this manual See also: Troubleshooting Manual, Maintenance and Service Manual
QuickSpecs
Overview

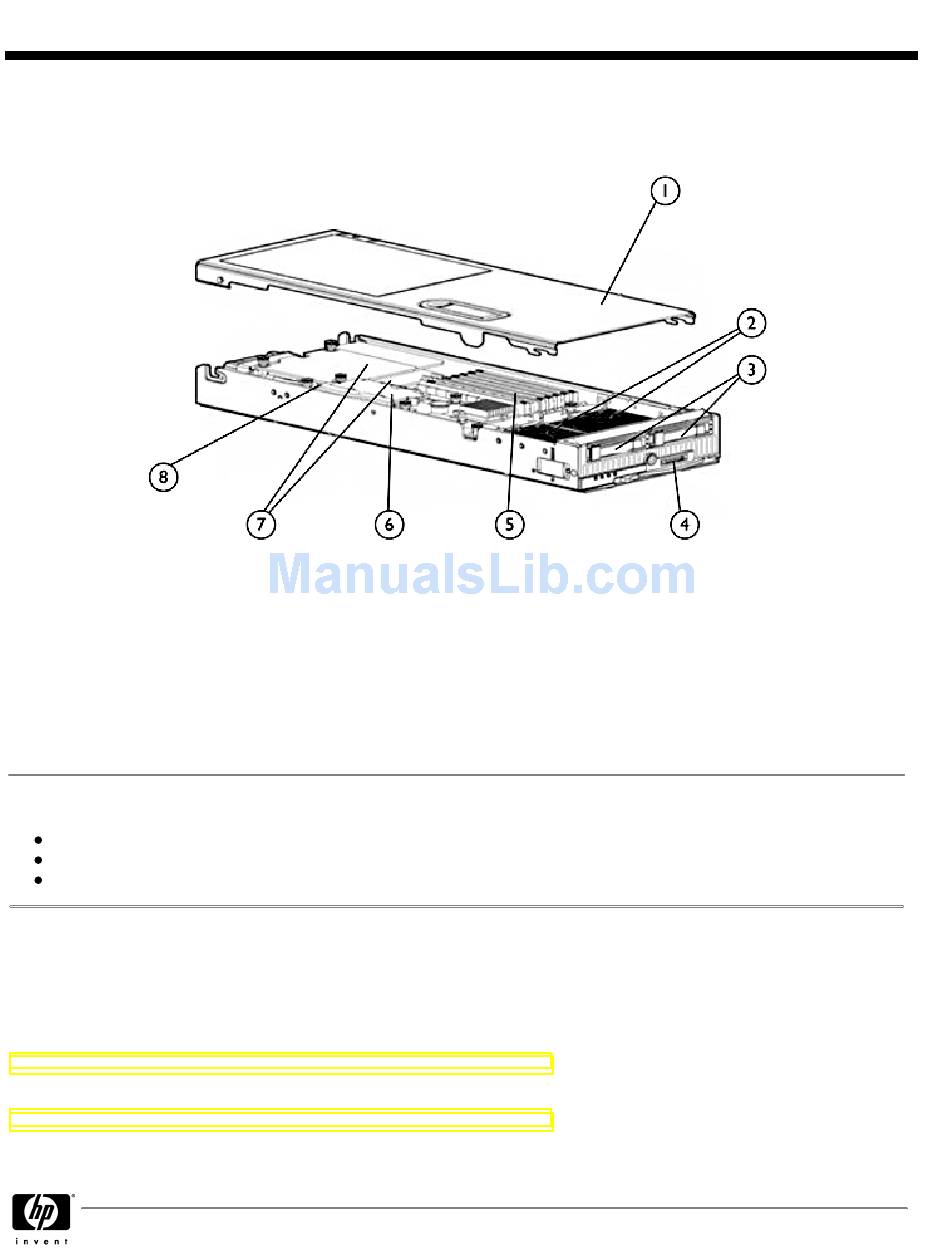

1. Access Panel
2. Up to two Quad-Core or Dual-Core Intel® Xeon® 5000
sequence processors
3. Small form factor (SFF) hot-plug drive bays (standard
BTO models)
4. Local I/O connector
What's New
Support for new Intel® Xeon® Dual-Core Low Voltage 5200 Sequence Processors
Support for up to 64GB of Memory with 16GB REG PC2-5300 2x8GB 2r memory option kit
Support for Entry (ETY) HP 120GB 1.5G SATA 5.4K SFF HDD
At A Glance
This document covers the HP ProLiant BL460c server blade only. For more information on HP BladeSystems c-Class
Infrastructure and HP BladeSystem c-Class Interconnect Components, please see the following QuickSpecs:
HP BladeSystem c-Class Infrastructure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12517_na/12517_na.html
HP BladeSystem c-Class Interconnect Components QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12524_na/12524_na.html
The HP ProLiant BL460c provides greater 2P x86 server blade density without compromise and maximum power-efficiency
with flexibility and choice.

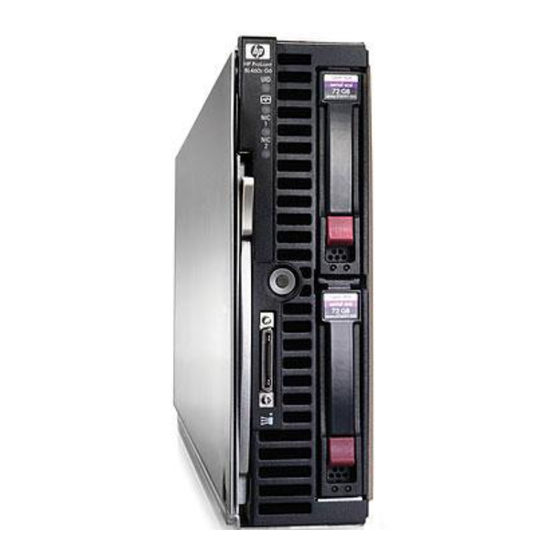

HP ProLiant BL460c Server Blade
DA - 12518 U.S. QuickSpecs — Version 27 — 5/12/2008
HP ProLiant BL460c Server Blade
5. Eight (8) PC2-5300, Fully Buffered DIMMs (DDR2-667)
Memory Slots
6. HP Smart Array E200i Controller (optional battery-backed
write cache) (standard BTO models)
7. Two Mezzanine slots
8. Internal USB Connector (standard BTO models)
Page 1

Advertisement

loading

Related Manuals for HP ProLiant BL460c

Summary of Contents for HP ProLiant BL460c

  • Page 1 Support for Entry (ETY) HP 120GB 1.5G SATA 5.4K SFF HDD At A Glance This document covers the HP ProLiant BL460c server blade only. For more information on HP BladeSystems c-Class Infrastructure and HP BladeSystem c-Class Interconnect Components, please see the following QuickSpecs: HP BladeSystem c-Class Infrastructure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12517_na/12517_na.html...
  • Page 2 Drive-less configure to order model. However, all configure to order models offer optional support for small form factor (SFF) hot-plug drive bays, HP Smart Array E200i Controller (with optional battery-backed write cache), and Internal USB Connector. See...
  • Page 3 The HP BladeSystem c7000 rack enclosure is 10U high and holds up to 16 ProLiant BL460c servers plugged vertically. The HP BladeSystem c3000 rack enclosure is 6U high and holds up to 8 HP ProLiant BL460c servers plugged horizontally. The HP BladeSystem c3000 tower enclosure is designed with casters for sites without racks and holds up to 8 HP ProLiant BL460c servers plugged vertically.

  • Page 4: Standard Features

    QuickSpecs HP ProLiant BL460c Server Blade Standard Features NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/erc/downloads/4AA0-6087enw.pdf. Processor Quad-Core Processor Option Kits Quad-Core Intel® Xeon® Processor X5460 (3.160 GHz, 1333 FSB, 120W)* Quad-Core Intel®...
  • Page 5 QuickSpecs HP ProLiant BL460c Server Blade Standard Features Cache Memory 2 x 6 MB shared L2 cache (5400 Sequence) 1 x 6 MB L2 cache (5200 Sequence) 2 x 4 MB Level 2 cache memory (5300 Sequence 1 x 4 MB Level 2 cache memory (5100 Sequence) Chipset Intel®...
  • Page 6 OS image from the iSCSI target disk. The iSCSI boot option ROM is supplied by HP at no cost. The additional cost and mezzanine slot usage of an add-in iSCSI HBA card is not required.
  • Page 7 HP ProLiant BL460c Server Blade Standard Features Fibre Channel Support Two optional Fibre Channel HBAs are supported by the HP ProLiant BL460c. Both mezzanine circuit boards connect directly to the server blade system board. These Fibre Channel HBAs are available via option kits and must be ordered separately.
  • Page 8 HP Insight Control management suites and most HP ProLiant Essentials include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates.
  • Page 9 ProLiant Essentials Upgrading, replacing, or virtualizing your existing server? Effortlessly Server Migration Pack – transition to new virtual or physical HP ProLiant servers or BladeSystem Universal Edition with automated, accurate and affordable migration of OS, application and data. SMP Universal automates the manual processes required for migrating servers between physical or virtual platforms, whether migrating to VMware or Microsoft virtual machines.
  • Page 10 SmartStart Web site at: http://www.hp.com/servers/smartstart. SmartStart version supported (minimum): SmartStart 7.60 Insight Management The Insight Management Agents should be installed on all HP servers to Agents present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage.
  • Page 11 LAN media and adapters, and application processes. The following is a quick summary of HP Serviceguard for Linux features and support. For the most recent list of Linux distributions & kernels, servers and storage supported with Serviceguard for Linux, see the Serviceguard for Linux Certification Matrix, available at: http://www.hp.com/go/sglx/info.
  • Page 12 Integrated Citrix XenServer NOTE: For more complete and up-to-date information of all supported OSes for ProLiants, certification information and how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html. NOTE: For an up-to-date listing of the latest software and drivers available for your server, please select your server: http://h20000.www2.hp.com/bizsupport/TechSupport/Product.jsp?lang=...
  • Page 13 HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.
  • Page 14 IT and business needs. The HP Care Pack service for HP ProLiant BL c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.
  • Page 15 E5345 2G (1P) one (1) additional 10/100 NIC dedicated to iLO 2 Management 435458-B21 HP ProLiant BL460c Storage Controller HP Smart Array E200i Controller with 64MB (optional battery-backed L5335 2G (1P) write cache) 453608-B21 Hard Drives No drives included; (2) SFF SAS/SATA drive bays...
  • Page 16 (1) additional 10/100 NIC dedicated to iLO 2 Management HP ProLiant BL460c X5140 DC 2GB (1P) Storage Controller HP Smart Array E200i Controller with 64MB (optional 128 MB battery- 416654-B21 backed write cache) Hard Drives No drives included; (2) SFF SAS/SATA drive bays...
  • Page 17 Two (2) embedded NC373i Multifunction Gigabit Server Adapters plus one (1) additional 10/100 NIC dedicated to iLO 2 Management Storage controller HP Smart Array E200i Controller with 64MB (optional 128MB battery- backed write cache) Hard Drives No drives included; (2) SFF SAS/SATA drive bays...

  • Page 18: Configuration Information - Factory Integrated Models

    NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
  • Page 19 QuickSpecs HP ProLiant BL460c Server Blade Configuration Information - Factory Integrated Models Quad-Core Intel® Xeon® processor L5335 (2.00 GHz, 1333 FSB, 50 W) Option 453609-L21 Kit, FIO Base Quad-Core Intel® Xeon® Processor E5320 (1.86GHz, 1066 FSB, 80 W) Option 435563-L21 Kit, FIO Base Quad-Core Intel®...
  • Page 20 464674-B21 NOTE: For additional information and option kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html Hard Drive Backplane HP ProLiant BL460c Hard Disk Drive Backplane, FIO 447711-B21 NOTE: The Hard Drive Backplane is required for all blades that support hard disk drives.
  • Page 21 NOTE: If the NC364m is installed in mezzanine slot 1 of a half-height server, connectivity will be provided on only 2 of the 4 ports HP NC373m PCI Express Dual Port Multifunction Gigabit Server Adapter for c- 406770-B21 Class BladeSystem NOTE: The Gigabit Ethernet adapters above transmit from the server only at 2000 Mbps, full duplex per port.
  • Page 22 NOTE: Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
  • Page 23 Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
  • Page 24 The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
  • Page 25 QuickSpecs HP ProLiant BL460c Server Blade Options Processors Quad-Core Process Option Kits Quad-Core Intel® Xeon® Processor X5460 (3.16 GHz, 1333 FSB, 120 W) 459973-B21 Quad-Core Intel® Xeon® processor X5450 (3.00GHz 1333 FSB, 120 W) 463056-B21 Quad-Core Intel® Xeon® processor E5450 (3.00GHz 1333 FSB, 80 W) 459489-B21 Quad-Core Intel®...
  • Page 26 NOTE: Must be installed in pairs. Hard Drives Serial Attached SCSI (SAS) SFF Hot Plug HP 72GB 3G SAS 15K SFF DP HDD 418371-B21 HP 72GB 3G SAS 15K SFF SP HDD 431935-B21 HP 36GB 3G SAS 15K SFF DP HDD...
  • Page 27 DT528A#ABA 1.44MB External USB Floppy Drive DC141B Service and Support NOTE: The HP Care Pack service part numbers below for ProLiant BL c-Class Offerings server blades, cover the server blade and all HP branded hardware options (HP Care Pack Services) qualified for the server, purchased at the same time or afterwards, internal to the server.
  • Page 28 Multiple advanced memory protection (AMP) modes are supported, based on FBDIMM population and RBSU selection. The server blade defaults to Advanced ECC HP ProLiant BL460c Server Blade (1P Model) Standard Memory 1024 MB (2 x 512 MB) or 2048 MB (2 x 1024 MB) (depending on model)of PC2-5300, FBD DDR2-667 ECC DIMMs Standard Memory Plus Optional Memory Up to 50176 MB or 51200 MB (depending on model) of PC2-5300, FBD DDR2-667 ECC DIMMs.
  • Page 29 QuickSpecs HP ProLiant BL460c Server Blade Storage 2 x SFF SAS or SATA Hot Plug Hard Drives Hard Drives SAS Hard Drive Quantity Position Supported Supported Controller 72 GB 15,000 rpm SAS HP Smart Array E200i Controller 36 GB 15,000 rpm SAS...
  • Page 30 QuickSpecs HP ProLiant BL460c Server Blade Storage External Storage Quantity Position Supported Supported Host Controller or Adapter XP Disk Array Systems Please see the External Please see the XP Disk Array Systems Quick Specs for the XP Disk Array latest list of supported HBAs...

  • Page 31: Technical Specifications

    Power Supply Output, please see the HP BladeSystem c-Class Infrastructure QuickSpecs located at URL: http://h18000.www1.hp.com/products/quickspecs/ 12517_na/12517_na.html To review typical system power ratings use the HP BladeSystem Power Sizer which is available via the online tool located at URL: http://www.hp.com/go/bladesystem/powercalculator System Inlet Operating 10°...
  • Page 32 QuickSpecs HP ProLiant BL460c Server Blade Technical Specifications HP Smart Array E200i Disk Drive and 3G SAS (Serial Attached SCSI) Controller Enclosure Interface 1.5G SATA (Serial Advanced Technology Attachment) Cache Memory Speed DDR-1/266 MHz provides up to 4.2 GB/s maximum bandwidth.
  • Page 33 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
