- Page 2 Step 1: Check Contents & Installation Requirements Step 2: Physical Description Step 3: Hardware Installation Step 4: Run the Quick Setup Wizard Step 5: Accessing the Network Camera Step 6: Viewing & Tips Appendix...

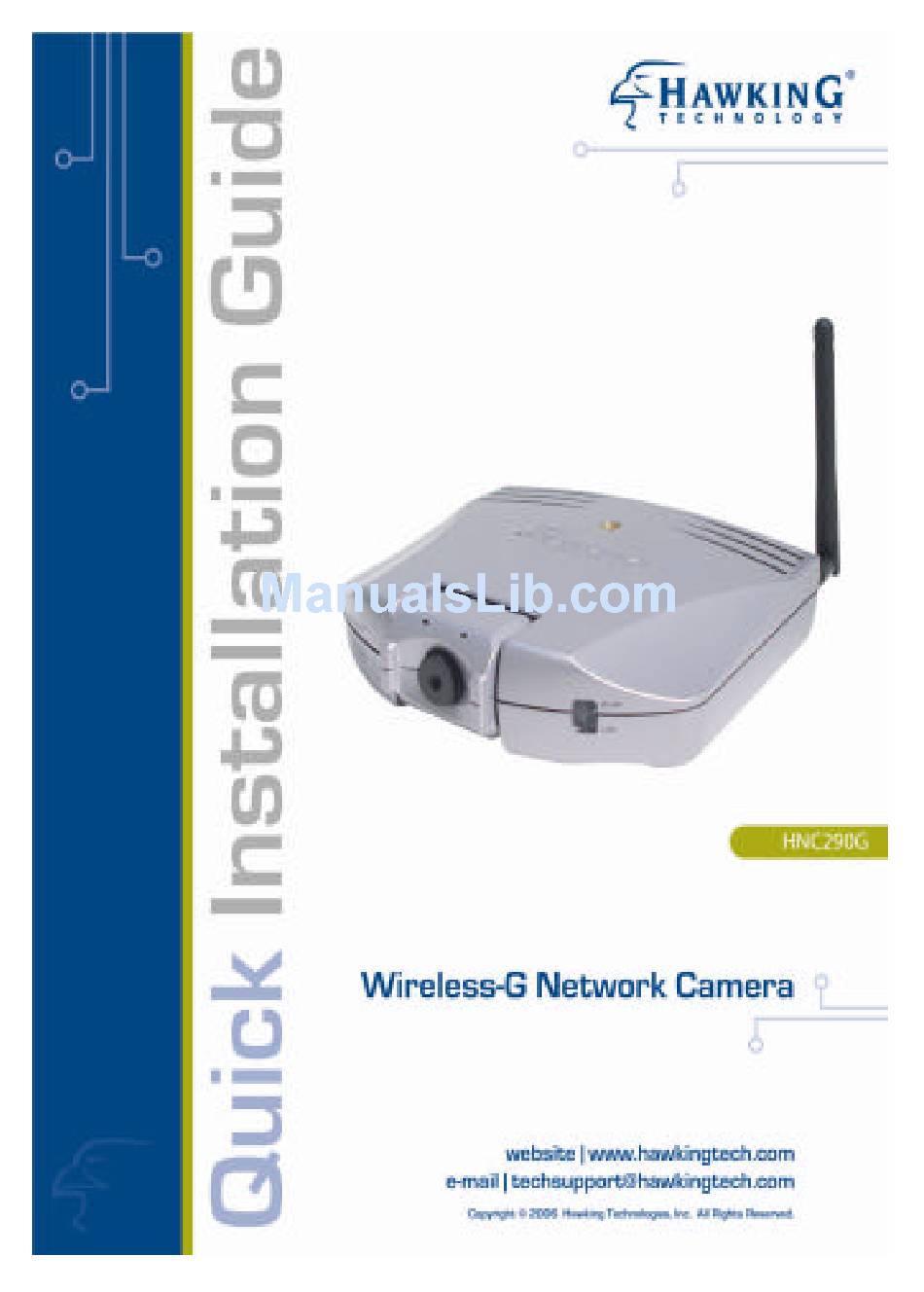

- Page 3 Congratulations on the purchase of your new Hawking Net- Vision HNC290G Wireless-G Network Camera. HNC290G is a high performance stand-alone camera system that provides an ideal solution for remote monitoring, surveillance, or sending live video over the Internet. The camera offers a broad...
- Page 5 Front Panel LED: WLAN LED: LED: LED: Power LED: Link LEDs - Power: Green when device is powered on & ready for access - Link: Orange when monitoring - WLAN: lit for wireless link; flashing for video transmission/reception - LAN: lit for wired link; flashing for video transmission/reception...
- Page 6 Back Panel Power Reset Input Button Antenna Port...
- Page 7 Screw the base of the antenna (included with the HNC290G) into antenna connector. Locate the network cable connector (RJ -45 port) on the camera’s rear panel. Connect an Ethernet cable to the port.
- Page 8 Locate the power input connector on the camera’s rear panel, and attach the external power supply. Then, plug the adapter into an available outlet. Please check to see that the green “Power” LED located above the lens of the camera is lit to ensure that camera powered on.
- Page 9 Insert the Hawking Net-Vision HNC290G Installation & Utilities CD into your CD-ROM Drive. When the main page loads, click on Quick Setup Wizard.
- Page 10 The Setup Wizard will search for similar cameras that are available on your local area network. A “similar” camera will have the same code of four letters at the beginning of its serial number. This code is “HEMT” and can be found on either the right or left panel of the box, or on the label on the bottom of the camera.
- Page 11 Each available camera will be displayed in the camera list with its MAC address, current default or configured IP address, and model number. (NOTE: The Setup Wizard may display an IP address for the new camera that is already consistent with your local area network [LAN] settings, rather than the default one.) In the camera list, click on the camera you would like to configure so that it is highlighted blue, and then click Next.
- Page 12 Next, the login username and password screen will appear. Please type in the default login and password and then click “OK”. The default values are : Login: admin Password: 1234 (If you have previously set a username and password, enter them and press “OK”.)
- Page 13 The Setup Wizard will try to determine your network settings. Click on DHCP. If a DHCP server is present on your network, the Wizard will obtain your network settings and automatically configure your network camera by returning an IP address that is consistent with your network.
- Page 15 The Wireless Network setup screen will allow you to connect your wireless network camera to your wireless router, or access point. (Infrastructure Mode is most commonly used in this setup.)
- Page 16 Please highlight the appropriate wireless network that you would like to assign the network camera to. You may choose to scan for the following two types of networks: Infrastructure (if you are using a router or access point) or Ad-hoc (for peer- to-peer connection).
- Page 18 To protect your camera from unauthorized access and use, you will need to change the Admin Password, which is “1234” by default. The password can have a maximum of four characters. Confirm the new password by typing it identically in the “Reconfirm” field. (Please note that the Admin ID is simply “admin”.) Click Next once you have confirmed your new password.
- Page 19 The following status screen will appear. It will display a summary of the changes you have made to the network camera’s settings. If all the settings are correct, click Next to continue.
- Page 20 The following screen will prompt you to set up your camera for Internet viewing. The setup is easy and will only require minimum input from you. Once configured, you will be able to view your camera from anywhere in the world, using only a web browser.
- Page 21 In the screen below, you can assign a web address for your camera that will allow you to access it remotely over the Internet. In the field directly to the right of the text “Please Choose a Domain Name”, enter a web address that will be easy for you to remember, such as “myhome”.
- Page 22 In order to view your camera remotely via the web, you will need to open two virtual ports on your router: 1. a web port, and 2. a video port. (Since the HNC290G does not have an audio feature, you will not need to open an audio port.) The Setup Wizard screen on the next page will allow you to do this.
- Page 23 NOTE: If your router does not support UPnP or if UPnP is not enabled on your router, the Setup Wizard will not be able to automatically open ports. You will need to select Manual Setup to continue.
- Page 24 If you selected Manual Setup in the previous Setup Wizard screen, the following screen will appear. Review all of the information provided on the screen, and then click on the link for step-by-step instructions on how to configure your router for port- opening.
- Page 25 If you selected Novice Setup or Advanced Setup and the Setup Wizard failed to communicate with your router, the following screen will appear. This typically occurs when UPnP is not enabled on your router. Review all of the information provided on the screen, and then click on the link for step-by-step instructions on how to configure your router for port -opening.
- Page 26 When you click on either of the links shown in 12a (pg. 24) or 12b (pg. 25), you will be directed to the webpage shown below. Follow the instructions provided on the page for a step- by-step guide on how to open ports on your router.
- Page 27 The following status screen will appear. Review the settings and ensure that they are correct. If any of the settings are incorrect, please go back and correct them. If all of the settings are correct, write down the displayed information so that you can access your camera: a.
- Page 28 If you have configured all the settings correctly and clicked Finish on the Setup Wizard, you will use two different methods to access your network camera: one for within your local area network (LAN), and another for remote access from outside your network.
- Page 29 To access/view your camera remotely over the Internet (i.e. from outside your network): If you assigned a web address to your camera in the Setup Wizard (see pg. 21), you can access your camera simply by typing that web address into the web address bar of your web browser.
- Page 30 The default IP address of the camera is: 192.168.2.3 You can also use the included Admin and Utility software to view, record, and playback the network camera’s images, as well as to change the camera’s configuration settings. For a more detailed example of how to view your network camera outside of your existing LAN via the Internet, without using the domain name service described on pg.
- Page 31 Example on How to Set the IP Address Manually The example shown here illustrates how to manually set an IP address using the Windows XP operating system. However, the procedure is similar for all other versions of Windows. When setting an IP address, you must make sure that the address you specify has the same first three octets (or segments) as the other devices on your LAN.
- Page 32 Click on Start in the bottom left corner of your screen. Then click on My Network Places.
- Page 33 Click on View Network Connections.
- Page 34 In the Network Connections window, you should see an icon titled Local Area Connection (or something similar). You can access this icon in two ways: a. by clicking or double- clicking on it, or b. by right-clicking on it and then clicking on Status from the resulting menu.
- Page 35 A window with the title Local Area Connection Status (or something similar) will appear. Click on the Support tab. Under the heading Address Type, you will find an IP Address line and a Default Gateway line. These two lines will have IP addresses with the first three octets in common. Use this information to set the IP address for your network camera.
