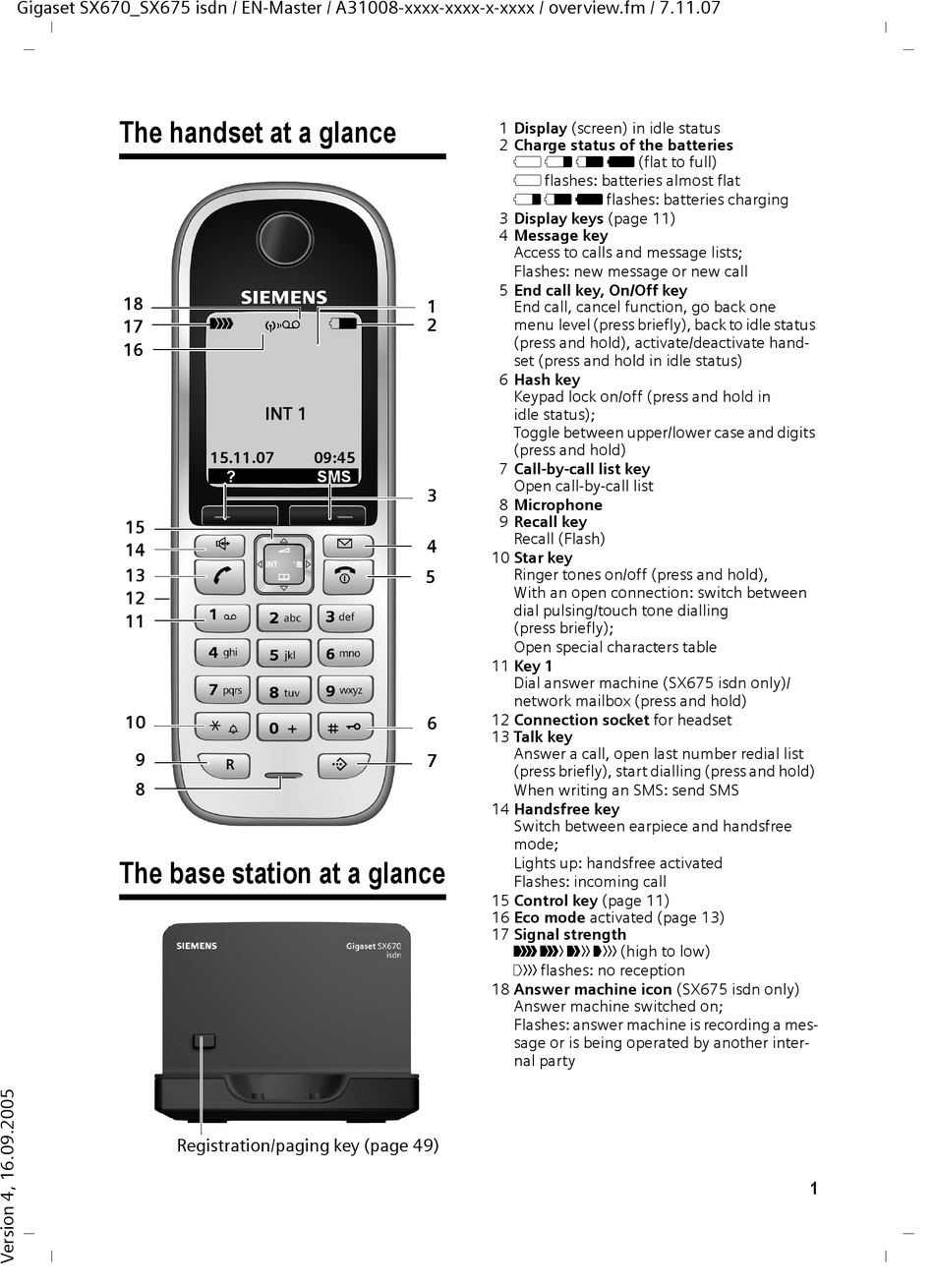

The handset at a glance

18
17
16
15
14
13
12
11
10
9
8

The base station at a glance

Registration/paging key (page 49)
Ð ½ Ã V
INT 1
15.11.07 09:45
? SMS
1 Display (screen) in idle status
2 Charge status of the batteries
= e V U
=
flashes: batteries almost flat
e V U
3 Display keys (page 11)
4 Message key
Access to calls and message lists;
Flashes: new message or new call
5 End call key, On/Off key
1
End call, cancel function, go back one
2
menu level (press briefly), back to idle status
(press and hold), activate/deactivate hand-
set (press and hold in idle status)
6 Hash key
Keypad lock on/off (press and hold in
idle status);
Toggle between upper/lower case and digits
(press and hold)
7 Call-by-call list key
Open call-by-call list
3
8 Microphone
9 Recall key
Recall (Flash)
4
10 Star key
Ringer tones on/off (press and hold),
5
With an open connection: switch between
dial pulsing/touch tone dialling
(press briefly);
Open special characters table
11 Key 1
Dial answer machine (SX675 isdn only)/
network mailbox (press and hold)
12 Connection socket for headset
6
13 Talk key
Answer a call, open last number redial list
7
(press briefly), start dialling (press and hold)
When writing an SMS: send SMS
14 Handsfree key
Switch between earpiece and handsfree
mode;
Lights up: handsfree activated
Flashes: incoming call
15 Control key (page 11)
16 Eco mode activated (page 13)
17 Signal strength
Ð i Ñ Ò
|
flashes: no reception
18 Answer machine icon (SX675 isdn only)
Answer machine switched on;
Flashes: answer machine is recording a mes-
sage or is being operated by another inter-
nal party
(flat to full)
flashes: batteries charging
(high to low)
