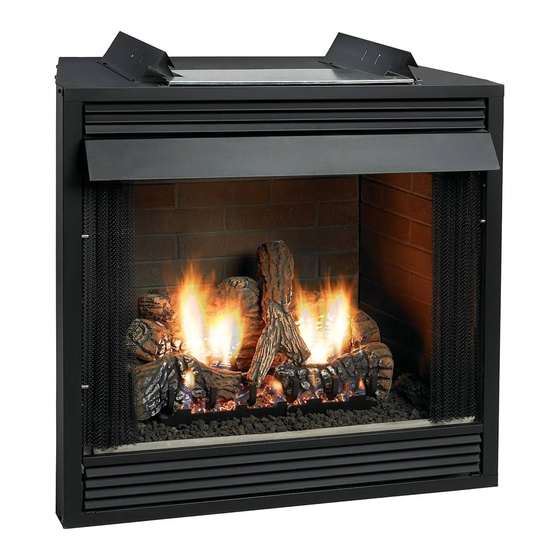

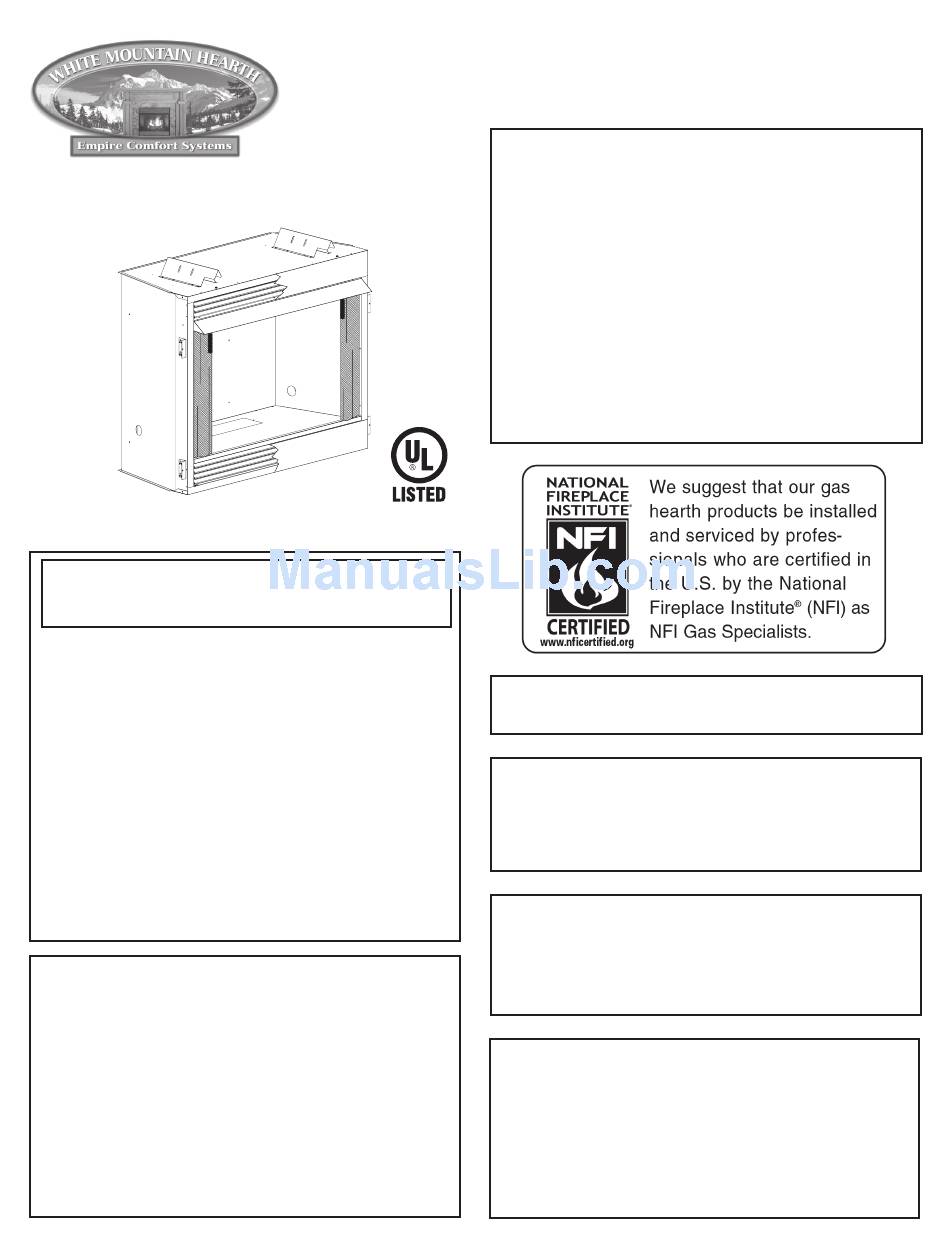

The Breckenridge
Deluxe Vent-Free Universal Fireboxes
ANSI z21.91 Ventless Fireplace Enclosures for Gas Fired
Decorative Type Unvented Room heaters
wARNING: If the information in these instructions are
not followed exactly, a fire or explosion may result caus-
ing property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appli-
ance.
— whAT TO DO IF yOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any
phone in your building.
•
Immediately call your gas supplier from a neigh-
bor's phone. Follow the gas supplier's instruc-
tions.
•
If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
DO NOT ATTEMpT TO MODIFy OR ALTER ThE
CONSTRUCTION OF ThE FIREBOX OR ITS COMpO-
NENTS. ANy MODIFICATION OR ALTERATION OF
CONSTRUCTION MAy VOID ThE wARRANTy OF
ThIS FIREBOX.
ChILDREN AND ADULTS ShOULD BE ALERTED TO
ThE hAzARDS OF hIGh SURFACE TEMpERATURE
AND ShOULD STAy AwAy TO AVOID BURNS OR
CLOThING IGNITION.
yOUNG ChILDREN ShOULD BE CAREFULLy SU-
pERVISED whEN ThEy ARE IN ThE SAME ROOM
AS ThE FIREBOX.
INSTALLATION INSTRUCTIONS
AND OwNER'S MANUAL
GAS-FIRED
UNIVERSAL FIREBOX FOR
ALL VENT-FREE LOG SETS
MODELS
VFD32FB0L-1
VFD36FB0L-1
VFD32FB2DL-1
VFD36FB2DL-1
VFD32FB2CL-1
VFD36FB2CL-1
VFD32FB2ML-3 VFD36FB2ML-3
VFD32FB0F-1
VFD36FB0F-1
VFD32FB2DF-1
VFD36FB2DF-1
VFD32FB2CF-1
VFD36FB2CF-1
VFD32FB2MF-3
VFD36FB2MF-3
Installer:
Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
FOR USE ONLy wITh A LISTED GAS-FIRED
UNVENTED DECORATIVE ROOM hEATER NOT TO
EXCEED 40,000 BTU/H.
DO NOT BUILD A wOOD FIRE.
WARNING: Improper installation, adjustment, alteration,
service or maintenance can cause injury or property damage.
Refer to this manual. For assistance or additional informa-
tion, consult a qualified installer, service agency or the gas
supplier.
Carefully r eview t he i nstructions s upplied w ith t he d ecorative
type unvented room heater for the minimum fireplace size
requirement.
DO NOT INSTALL A VENT-FREE LOG SET IN ThIS
FIREBOX, UNLESS THIS FIREBOX MEETS THE
MINIMUM DIMENSIONS REQUIRED FOR ThE
INSTALLATION.
VFD42FB0L-1
VFD42FB2DL-1
VFD42FB2CL-1
VFD42FB2ML-3
VFD42FB0F-1
VFD42FB2DF-1
VFD42FB2CF-1
VFD42FB2MF-3
Page 1
