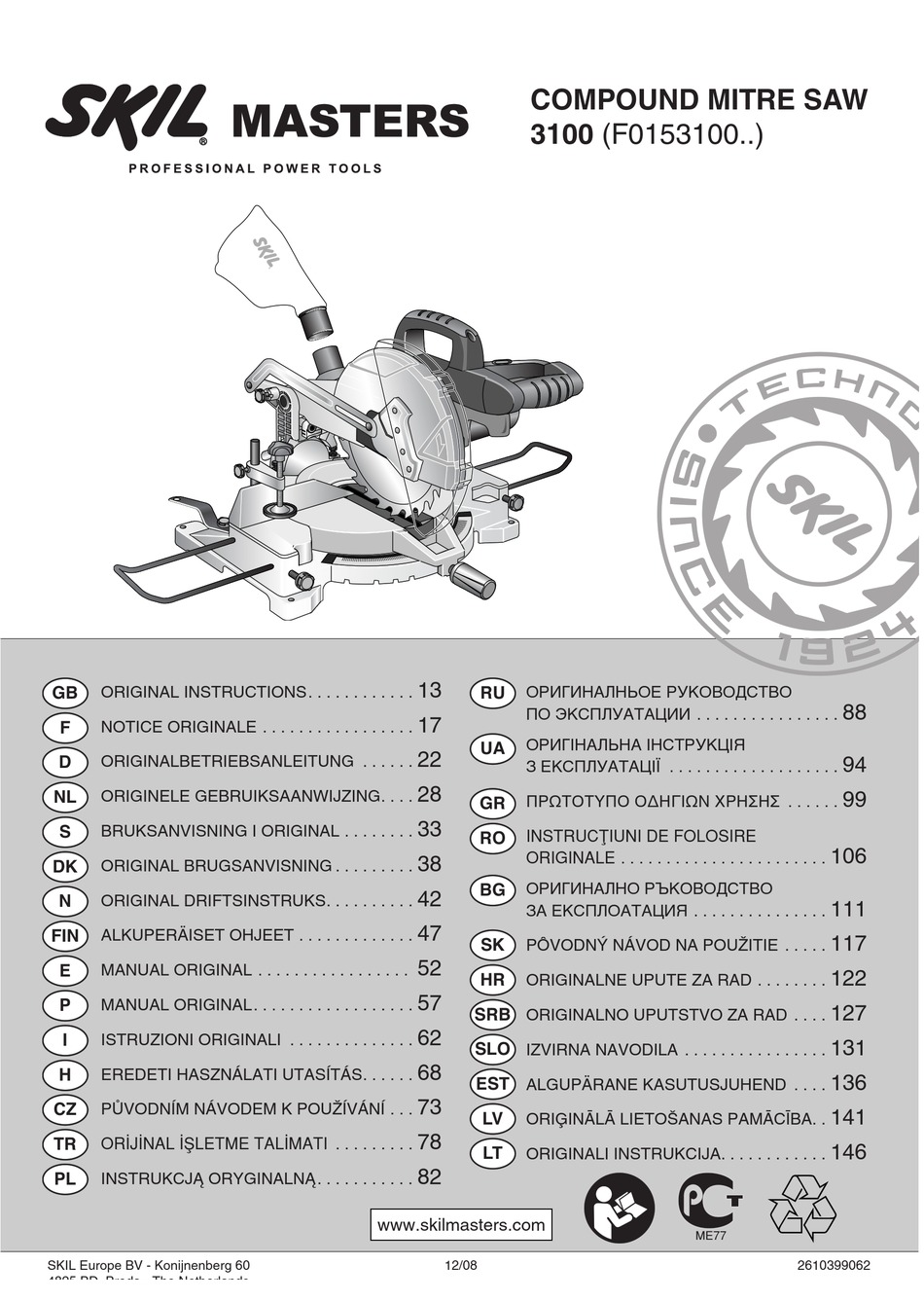

COMPOUND MITRE SAW
3100 (F0153100..)
13
RU
17
UA
22
28
ΠΡΩΤ ΤΥΠ
GR
33
INSTRUCØIUNI DE FOLOSIRE
RO
ORIGINALE . . . . . . . . . . . . . . . . . . . . . . .
38
BG
42
47
SK
PÔVODN¯ NÁVOD NA POUÎITIE . . . . .
52
HR
ORIGINALNE UPUTE ZA RAD . . . . . . . .
57
SRB
ORIGINALNO UPUTSTVO ZA RAD . . . .
62
SLO
IZVIRNA NAVODILA . . . . . . . . . . . . . . . .
68
EST
ALGUPÄRANE KASUTUSJUHEND . . . .
73
LV
ORI˛INÅLÅ LIETO·ANAS PAMÅC±BA. .
78
LT
ORIGINALI INSTRUKCIJA. . . . . . . . . . . .
82
www.skilmasters.com
www.skileurope.com
12/08
∆ΗΓΙΩΝ ΡΗΣΗΣ . . . . . .
ME77
2610399062
88
94
99
106
111
117
122
127
131
136
141
146

Advertisement

Table of Contents
loading

Summary of Contents for Skil Masters 3100

  • Page 1 ORIGINALI INSTRUKCIJA... . INSTRUKCJÑ ORYGINALNÑ... www.skilmasters.com www.skileurope.com ME77 SKIL Europe BV - Konijnenberg 60 12/08 2610399062 4825 BD Breda - The Netherlands...
  • Page 2 3100 1800 EPTA 01/2003 Watt 13,4 kg 5500 /min RUBBER 0° 0° 45° 45° 45° 0° MAX mm 45° 0° MAX mm MAX mm MAX mm 254 mm 250 mm MAX. MIN. 30 mm 30 mm 2,0 - 3,2 mm...
  • Page 4 90°...
  • Page 6 0° 45° 45° 45° 0° Max A x Max B 0° 70 x 135 mm 0° 45° 40 x 135 mm 0° 0° 70 x 90 mm 45° 45° 40 x 90 mm 45°...
  • Page 7 45° 45° 0° 0° 45°...
  • Page 8 0° 45° 45° 45° 0° CLASS 2 LASER LASER RADIATION DO NOT STARE INT O BEAM CLASS 2 LASER PRODUCT P max < 1mW, ª 650 ª ª =650nm =650nm IEC/EN 60825-1: 2007...
  • Page 10 &...
  • Page 12 ¡ ™ £ ≤ ∞...
  • Page 13: Technical Specifications

    Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any Compound mitre saw 3100 adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk INTRODUCTION of electric shock.
  • Page 14: Outdoor Use

    • Never use grinding/cutting discs with this tool • Always disconnect plug from power source before • SKIL can assure fl awless functioning of the tool only making any adjustment or changing any accessory when the correct accessories are used which can be •...
  • Page 15: During Use

    • Never use saw blades made of high speed steel (HSS) For securing the tool (transport position) • Do not use a saw blade which is cracked, deformed or - press safety lever C 4 while lowering the tool arm dull with handle A to the stop •...
  • Page 16 • Compound cuts $ - remove old table insert by fi rst lifting it at the front - compound cuts require both a mitre angle setting and then pulling it out completely and a bevel angle setting - place new table insert ! always test out first on a piece of scrap material ! firmly tighten all 4 screws •...
  • Page 17: Application Advice

    • If the tool should fail despite the care taken in S1 Laser à enclenchement marche/arrêt manufacturing and testing procedures, repair should be Interrupteur marche/arrêt carried out by an after-sales service centre for SKIL Clé de lames power tools W Protège-main - send the tool undismantled together with proof of Bouton de blocage de l’arbre...
  • Page 18 108 dB(A) (déviation standard: 3 dB), et la vibration 2,7 m/s (méthode main-bras; incertitude K = 1,5 m/s Dossier technique auprès de: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL. CE KONFORMITÄTSERKLÄRUNG Wir erklären in alleiniger Verantwortung, daß dieses Produkt mit den folgenden Normen oder normativen Dokumenten übereinstimmt: EN 61 029, EN 55 014, gemäß...
  • Page 19: Заявление О Соответствии

    108 dB(A) (normál eltérés: 3 dB), a rezgésszám 2,7 m/s (kézre-ható érték; szórás K = 1,5 m/s A mıszaki dokumentáció a következŒ helyen található: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL. CE STRVZUJÍCÍ PROHLÅ◊ENÍ Potvrzujeme na odpovπdnost, Ωe tento v¥robek odpovídå nåsledujícím normåm nebo normativním podkladüm: EN 61 029, EN 55 014, podle ustanovení...
  • Page 20 (metóda ruka - paΩa; nepresnosÈ K = 1,5 m/s Súbor technickej dokumentácie sa nachádzajú na adrese: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL. CE IZJAVA O USKLA ĐENOSTI Izjavljujemo uz punu odgovornost da je ovaj proizvod usklađen sa slijedeçim normama i normativnim dokumentima: EN 61 029, EN 55 014, prema odredbama smjernica 2006/95/EG, 2004/108/EG, 98/37/EG (do 28.12.2009), 2006/42/EG (od 29.12.2009).
