MSS X9 Evolution 250

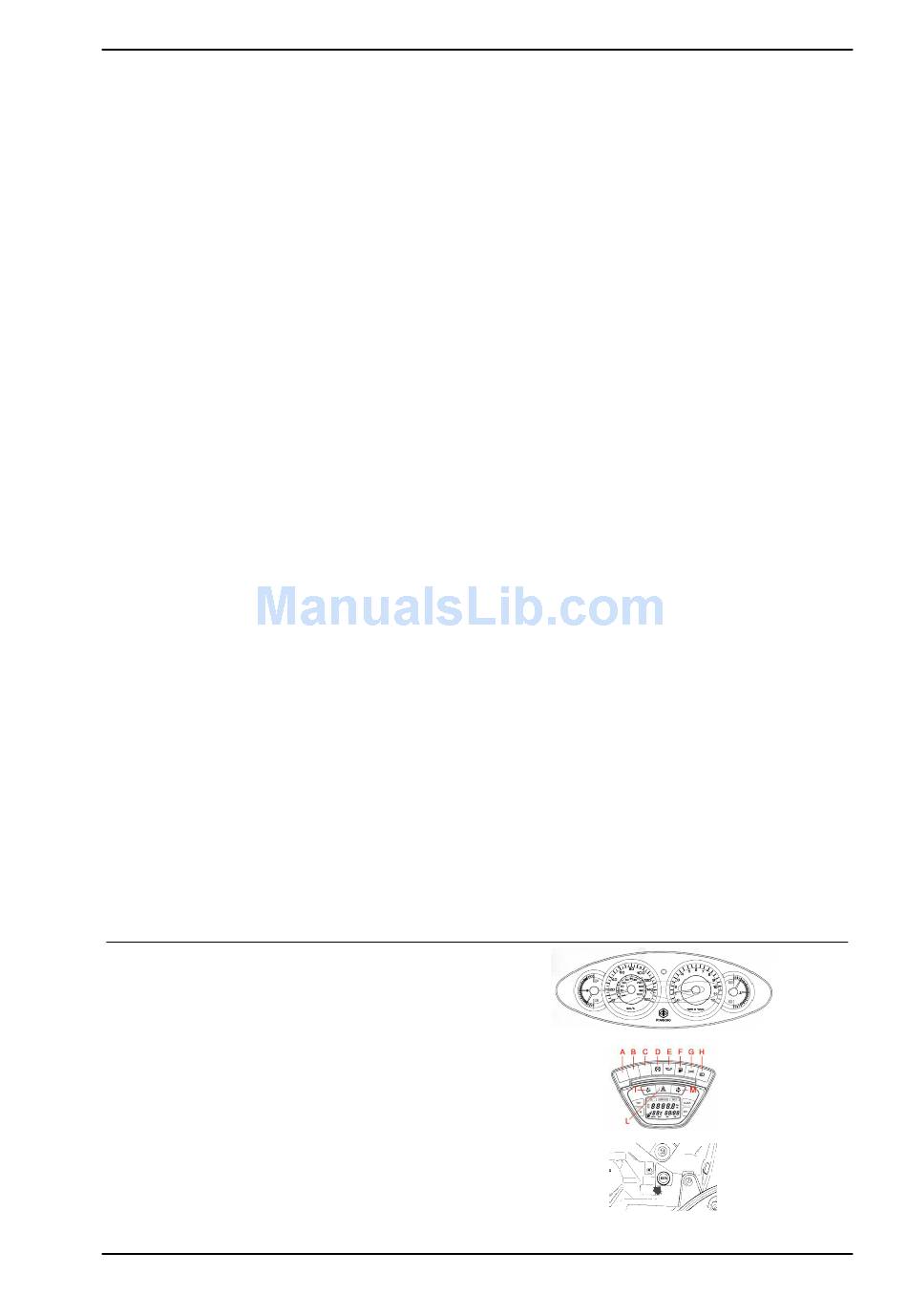

A: Fitting for indicator light *
B: Fitting for indicator light *
C: Fitting for indicator light *
D: Engine disabled
E: Oil pressure
F: Fuel reserve
G: Position and dipped beam lights: green coloured
H: Upper beams on
I: Left direction indicator
L: Emergency lights (four direction indicators)
M: Right direction indicator
* The DGT instrument does not include the LEDs for the indicator light fittings
The fuel reserve, direction indicators and emergency flashing functions are activated by the instrument
electronics. For example, the fuel reserve indicator light only turns on when the reserve indication com-
ing from the engine lasts at least 13.5 seconds. This prevents the intermitting turning on of the reserve
light indicator.
- The intermitting function is built in the instrument electronics: this allows operating the emergency
lights with switch in position «OFF» and control switch off. The control switch is only active when the
instrument panel is on.
To ensure safety while riding, the «direction indicators control» function is connected to the odometer.
If the indicator is left on, it automatically stops after 1 kilometre travelled.
- The «engine disabled» indicator is activated by the side stand switch and by the emergency switch
on the right side of the handlebar.
- The LCD display gives a 5 digit indication for the total kilometres covered by the vehicle. It can be
expressed in kilometres or in miles: of course, this indication cannot be reset. To select the indication,
press "Trip" and «M» at the same time, then tirn the key switch to «ON»; keep these 2 buttons
pressed for more than 3" to display «SET» on the display, then the display switches from miles
to kilometres, or vice versa.
After servicing by the authorised workshop, the
icon message must be reset by the "Reset" button
located in the front side of the vehicle under the
fairing.
The "Reset" button allows resetting the kilometres
covered and, in the case of "Service", also the year
count. This count remains active even if the battery
is disconnected for a short time.
