Page 1: Operating Instructions

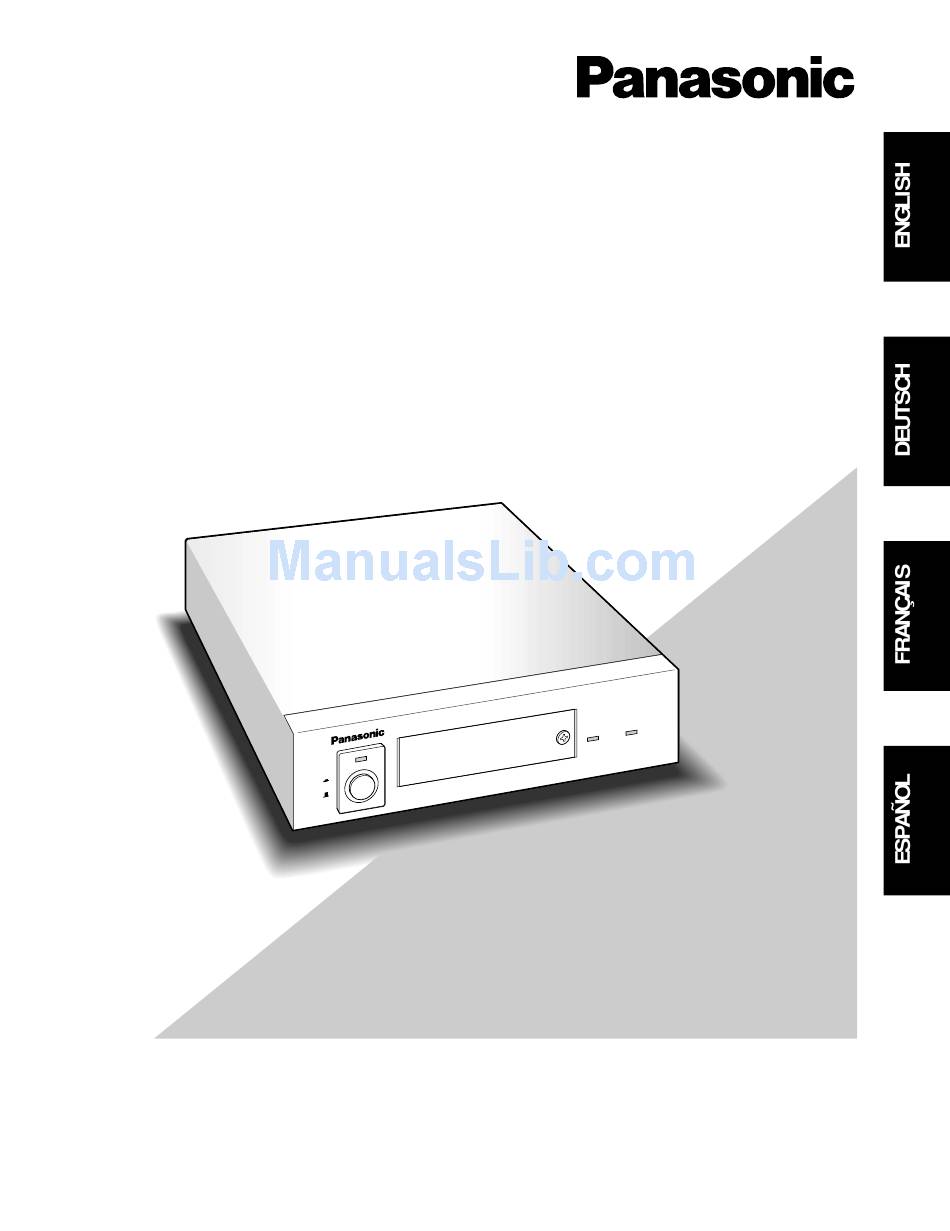

Data Multiplex Unit Operating Instructions WJ-MP204 Model No. A L A R M S U S P E A L A R M -M P 2 0 4 U n it W J P O W u lt ip le x... - Page 2 If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer. The lightning flash with arrowhead symbol,...
-
Page 3: Table Of Contents
RS485 Terminal ................................. 25 Connection to WV-CU360 ..............................26 OPERATING PROCEDURES ..............................27 Controlling the Camera Functions with the Data Multiplex Unit WJ-MP204 ..............27 Controlling the Camera Functions with the System Controller WV-CU360 ............... 27 Camera Selection ................................27 ALARM CONTROL FUNCTIONS ............................... -
Page 4: Preface
• Panasonic Security Data mode (with WV-CU360 con- Allows you to display on the monitor any camera image nected) selected on the WJ-MP204 Data Multiplex Unit or the WV- • Camera Communication mode (with WJ-SX350 con- CU360 System Controller. nected via RS-485) •... -
Page 5: Communication Mode
• Set or change camera address from the Setup menu of CU360 System Controller. the Data Multiplex Unit. • Connect up to 16 Data Multiplex Units for Panasonic • Synchronize each channel by multiplexing the video Security Data mode communication (up to 4 in case of signal with the sync signal VD2. -
Page 6: Major Operating Contorols And Their Functions
RESET SUSPEND SET UP ALARM SUSPEND Data Multiplex Unit WJ-MP204 q Power Switch (POWER ON/OFF) t Setup/ESC Button (SETUP/ESC) Press once to turn on the Data Multiplex Unit. Pressing this button for 2 seconds or more opens the The switch remains down (;) and the LED lights up. -
Page 7: Rear View
Camera Communication Mode: Use only the RS485 Accepts the video sync signal (VS), or a vertical drive terminal. signal (VD) supplied by external devices to synchro- Panasonic Security Data mode: Use only the Data nize the Data Multiplex Unit with other devices. port. Notes: •... -
Page 8: Setup Procedure
SETUP PROCEDURE Follow the procedures below for setup. Power Switch LED Power Switch 1. Press the Power Switch back to the OFF position. Check that the Power Switch LED is off. UNIT ALARM POWER RESET SUSPEND SET UP Data M 2. -
Page 9: Dip Switch Setting
4-LINE: Full Duplex 2-LINE: Half Duplex Setting Communication Mode The initial factory setting is 4-LINE. Panasonic Security Data Mode 4-LINE Check that Dip Switches SW3 and SW4 are up. 2-LINE Note: Set SW6 to 4-LINE for communication in Panasonic Security Data mode. -
Page 10: Setting Addresses
• Do not set the UNIT switch to position 9 because it is a reserved number. • When two Units corresponding to Panasonic Security Data or more are connected, check that each UNIT switch is set to a number different from those of the others. -
Page 11: Setup Menu
WV-CU360, and the other for system setup of the Data Multiplex Unit. Each of the main menus consists of submenus. The Setup menu varies between Panasonic Security Data mode and Camera Communication mode. Refer to the description of communication mode setting with the DIP switches on page 9. -
Page 12: Displaying The Setup Menu For Panasonic Security Data Mode
1 (C) or button 2 (D). Then press the SUSPEND/SET button. • In case of Panasonic Security Data mode, the COM- MUNICATION menu appears as shown below. 4. Move the cursor up or down pressing button 1 (C) or COMMUNICATION button 2 (D). -
Page 13: System Setup For Panasonic Security Data Mode
2. Move the cursor to SYSTEM by pressing button 1 (C) or button 2 (D), then press the SUSPEND/SET button. • In case of Panasonic Security Data mode, the SYS- TEM menu appears as shown below. (2) Baud Rate Setting 1. - Page 14 (1) Alarm Mode Setting OFF by pressing button 3 (–) or button 4 (+). The initial factory setting is ON. • Monitor Spot Setting ALARM MODE • Terminal Alarm Setting 1. Display the SYSTEM menu. MONITOR SPOT 2. Move the cursor to TERM. ALARM by pressing button 1 ALARM DISPLAY ON (C) or button 2 (D), then select TERM.
- Page 15 The initial factory setting is ON. (2) Comp/VD2/Data Setting COMP/VD2/DATA (3) VS/VD Input 1. Display the SYSTEM menu. CAMERA IN 1CH 2. Move the cursor to VS/VD INPUT by pressing button 1 COMP (C) or button 2 (D), then select VS or VD by pressing DATA button 3 (–) or button 4 (+).
-
Page 16: Displaying The Setup Menu Of Camera Communication Mode
• To use the System Controller WV-CU360 for operation, 3. Press the SETUP/ESC button for 2 seconds or more. refer to its Operating Instructions. The Setup menu appears on the monitor. WJ-MP204 SETUP MENU X.XX COMMUNICATION Communication Setup for SYSTEM Camera Communication Mode 1. - Page 17 (1) Camera Addresses Setting (4) Parity Check Setting 1. Display the COMMUNICATION menu. 1. Display the COMMUNICATION menu. 2. Move the cursor to CAM ADDRESS by pressing button 2. Move the cursor to PARITY CHECK by pressing button 1 (C) or button 2 (D), press the SUSPEND/SET button, 1 (C) or button 2 (D), then select the desired type of and then select the desired camera addresses in the parity check (NONE, EVEN or ODD) by pressing button...
-
Page 18: System Setup For Camera Communication Mode
• Alarm Display Setting System Setup for Camera 1. Display the SYSTEM menu. Communication Mode 2. Move the cursor to ALARM DISPLAY by pressing button 1 (C) or button 2 (D), then select ALARM DISPLAY ON 1. Display the Setup menu. or OFF by pressing button 3 (–) or button 4 (+) so that 2. - Page 19 • Alarm Data ON: Multiplex sync signals (VD2) are generated by syn- This is to set whether or not the alarm data received chronizing with the signals sent to the VS/VD IN from a camera is to be transmitted to the WV-CU360. connector.
-
Page 20: Installation
• Secure the rear of the appliance to the rack by using additional mounting brackets (procured locally), if the rack is subject to vibration. • Do not use tapping screws for installing the WJ-MP204 on the rack with the rack mounting brackets. Rack mounting screws... -
Page 21: System Connection
SYSTEM CONNECTION BASIC SYSTEM CONNECTION (Panasonic Security Data Mode) The Data Multiplex Unit WJ-MP204 may be connected to cameras, video monitors, and system controller WV-CU360 as shown in the typical connection example below. The ALARM/REMOTE connector is described later. • Refer to the Operating Instructions for each system component for connection and operation. - Page 22 Connecting Two or More Data Multiplex Units to System Controller WV-CU360 (Panasonic Secuarity Data Mode) 1 ch 4 ch 5 ch 2 ch 6 ch 3 ch 7 ch VS/VD OUTPUT VS/VD INPUT 8 ch SPOT SW OUT SPOT SW IN...
- Page 23 8 ch Camera communication mode 2 Line Data Multiplex Unit MODE WJ-MP204 Termination ON Unit Address 1 A L A R M / R E M OT E A L A R M / R E M OT E SIGNAL GND...
-
Page 24: Alarm/Remote Connector
The initial setting is ALARM INPUT. 1. Remove four screws (left x 2, right x 2) on both sides of the WJ-MP204. 2. Remove four screws on the rear panel. 3. Slide the panel cover to the front as viewed from the rear of the WJ-MP204. -
Page 25: Connector Selection For Setup Menu Output
Under the default condition, the setup menu will be output to the devices connected to the SPOT OUT connector and CAM- ERA OUT connector 1 to 4. When Switch [1] of SW702 in the WJ-MP204 is set to ON, the setup menu will be output only to the devices connected to the SPOT OUT connector. -
Page 26: Connection To Wv-Cu360
1. Plug the branch cable (optional accessory) into the DATA port on the Data Multiplex Unit WJ-MP204. 2. Plug the branch cable into the DATA port on the WJ-MP204, and connect one of the DATA port on the System Controller with the RS-485 cable. -
Page 27: Operating Procedures
D a ta M u lt ip le x U n it W J - M P 2 The Data Multiplex Unit WJ-MP204 controls the following. • Camera selection • Alarm reset/suspend (See page 28.) • Setup of the WJ-MP204... -
Page 28: Alarm Control Functions
• Alarm indicator blinks. mode only) • Alarm data is transmitted to the system controller and • Press the ALARM RESET button on the WJ-MP204. other system units. • Signal is sent to the alarm recover input connector. • Alarm reset command is sent to the RS-485 terminal (in MONITOR SPOT set to ON on the Setup menu (See pages camera communication mode only). -
Page 29: Specifications
Switch Protector ............... 1 pc. ALL RESET The Data Multiplex Unit WJ-MP204 can be reset to the default settings as follows: 1. Press the power switch to reset it to the OFF position. 2. Press the power switch down to the ON position while pressing the camera selection buttons 2, 3, and 4. -
Page 30: Appendix
APPENDIX Operation of Data Multiplex Unit WJ-MP204 versus Operation of System Controller WV-CU360 The functions that can be controlled from both the WJ-MP204 and WV-CU360 in the way of their operation are summarized in the table below. Function WJ-MP204 WV-CU360... - Page 31 Matsushita Electric Industrial Co., Ltd. Central P.O. Box 288, Osaka 530-91, Japan N1299-1030 YWV8QA5360BN Printed in Japan N 19 Gedruckt in Japan Imprimé au Japon Impreso en Japón 2000 © Matsushita Communication Industrial Co., Ltd. All rights reserved...
