Summary of Contents for Panasonic TY-UPK42HV7
- Page 1 TY-UPK42HV7 TY-UPK50HV7...
- Page 8 INPUT SURROUND PICTURE SOUND SET UP...
- Page 10 © 2004 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
-
Page 11: Installation Instructions
Installation Instructions Plasma Display Fan Kit for Vertical Use TY-UPK42HV7 Model No. TY-UPK50HV7 Before commencing work, carefully read these Instructions and the Manual for the plasma display to ensure that fitting is performed correctly. (Please keep these instructions. You may need them when maintaining or moving.) -
Page 12: Precautions With Regard To Setting Up

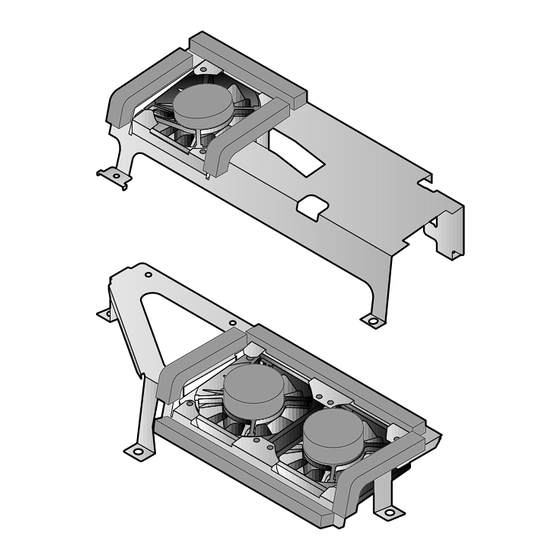

Thank you very much for purchasing the Plasma Display Fan Kit for Vertical use. Installation work should only be carried out by a qualified technician. • If the unit is installed incorrectly, the display may fall down and personal injury may result. Precautions with regard to setting up WARNING Always have a qualified technician perform the installation. - Page 13 Components TY-UPK42HV7 (For TH-42PHD7) TY-UPK50HV7 (For TH-50PHD7) Fan mounting screw (M3) Lead clamper 1 (Only TY-UPK42HV7) Fixing screw (M5) Points to note during installation This optional fan kit is designed exclusively for vertical use with this display model. In order to ensure correct, problem-free operation of the Plasma Display, do not install the Display in any of the following places.
- Page 14 Attach the fan 1) Remove the rear cover from the display. Place the display facing downward on a clean blanket or the like, and follow the steps below. TH-42PHD7 Remove bolts and screws (a, b, c) from the display. Put the rear cover and removed bolts and screws to the side where they will not get lost.
- Page 15 3) Attach the connectors TH-42PHD7 Remove the short coupler Z32. Fan A Horizontal bar Secure the fan lead with the lead clamper Fan lead located to the left of Fan A. Secure the fan lead at position B with the supplied lead clamper.
-
Page 16: Installation Procedure
Install the wall-hanging bracket 1) Check the strength of the installation location. • The wall-hanging bracket TY-WK42PV1 weights (Dimensions of the 490 (19 450 (17 approx. 6 kg (13.2 lbs.), TY-WK42PV7 weights TY-WK42PV1) approx. 3 kg (6.6 lbs.), a 50-inch display weights Units : mm approx. - Page 17 3) Install the display to the wall-hanging bracket. Position the display so that the power switch is located at the bottom. For TY-WK42PV1 Installation procedure Top holes Push the upper insulating spacers on the display into the notches at the top of the wall-hanging Insulating spacer bracket until they are hooked in, then lower the display into place.
- Page 18 Setting the fan motor software Be sure to complete vertical mount settings by following the steps below: Set fan speed to maximum with the vertical mount setting option. INPUT SURROUND PICTURE SOUND SET UP 1) Power on the display and press SETUP button on [SET UP] menu...
- Page 19 Wall-hanging bracket installation example for vertical use TY-WK42PV1 TY-WK42PV7 Units : mm ) : inch 490 (19 516 (20 450 (17 480 (18 Units : mm ( ) : inch TY-WK42PV1 TY-WK42PV7 For 50 Inch For 42 Inch For 50 Inch For 42 Inch 1210 (47 1020 (40...
- Page 20 Matsushita Electric Industrial Co., Ltd. Web Site : http://www.panasonic.co.jp/global/ Printed in Japan M1004A0 ( MBS ) ( Recycled paper ) © 2004 Matsushita Electric Industrial Co., Ltd. All rights Reserved.
