QuickSpecs

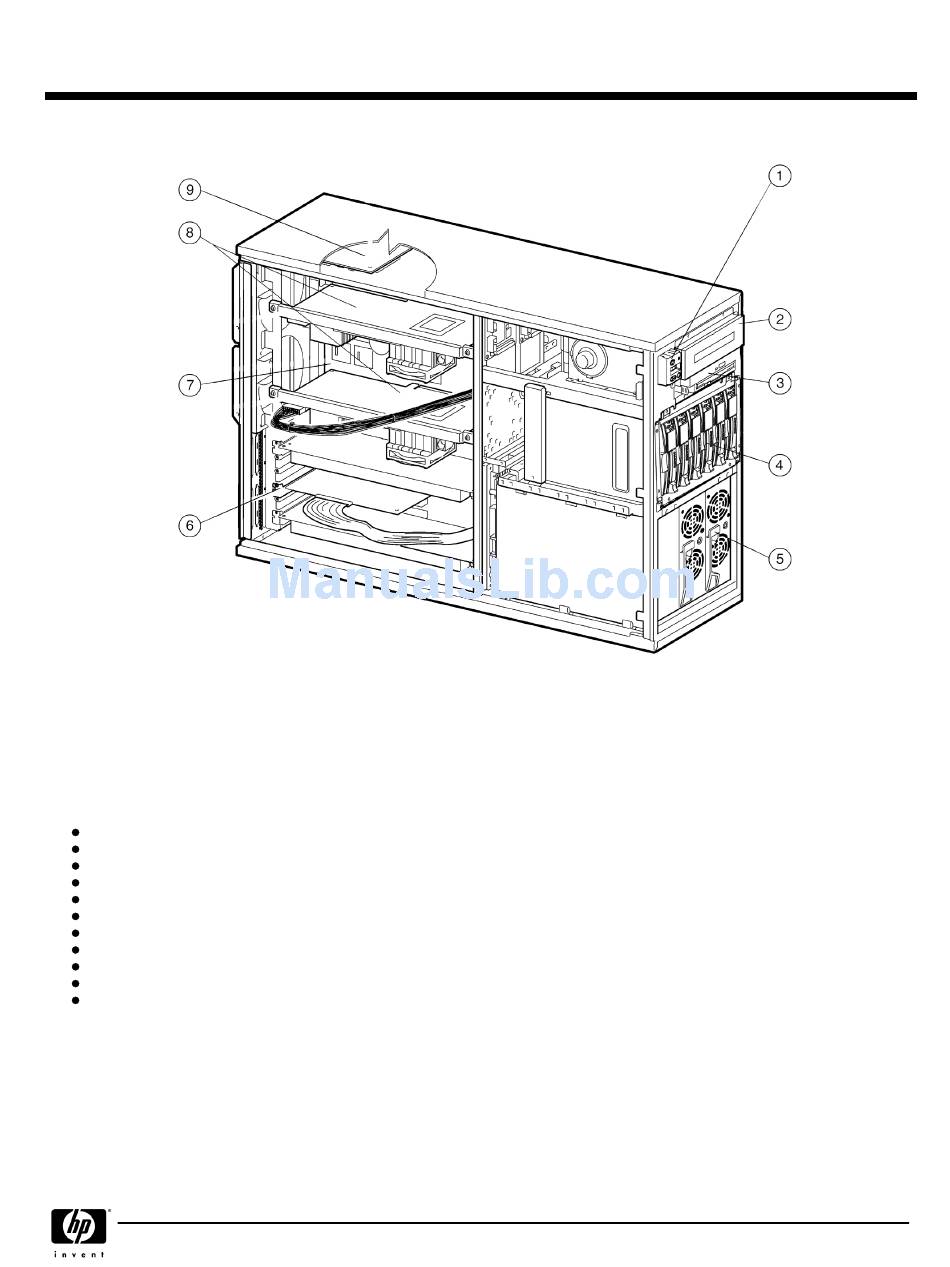

Overview
1. Operator Control Panel
2. Removable media bay
3. Combination CD-ROM/floppy drive
4. Hard disk drive cage
5. Power Supplies
At A Glance
At A Glance
At A Glance
At A Glance
AlphaServer/AlphaStation DS20E Systems include:
Alpha 21264 667-MHz or 833-MHz processor (dual processor capability)
8-MB level DDR cache per processor
ECC-protected memory bus and cache
512-MB or 1-GB SDRAM memory expandable to 4 GB
Five PCI and one shared PCI/ISA slot (six total slots)
Six hot swap hard disk drive bays
Internal mass storage capacity up to 876 GB
Integrated environmental server management module
Two 375-Watt hot pluggable power supplies with optional third for N+1 redundancy
Combo 24X CD-ROM drive and 1.44-MB floppy disk drive
Protected by HP Services, including a three-year on-site limited warranty
DA - 10445
North America — Version 37 — October 24, 2003
Compaq AlphaServer DS20E
Compaq AlphaServer DS20E
Compaq AlphaServer DS20E
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Compaq AlphaStation DS20E
Compaq AlphaStation DS20E
Compaq AlphaStation DS20E
6. Ultra2/Ultra3 SCSI adapter
7. System motherboard
8. CPU modules
9. Server Management Module
Page 1
